Eaton EZ5262CHRD EZLink modular duplex receptacle - cULus Listed
Part Number: EZ5262CHRD
Quick Summary
EZLink modular duplex receptacle delivers controlled power for panel enclosures. Engineers often face wiring clutter and space constraints in control panels, making compact modular solutions essential. This device is cULus listed and NOM certified, with Federal Specification W-C-596G, ensuring compliance for critical electrical installations. With NEMA 5-15R compatibility, 15A at 125V, and a distinct red color code, it supports quick identification while simplifying commissioning and future maintenance. The compact footprint and modular design translate to predictable lifecycle costs and faster retrofit cycles in industrial settings.
Product Information
Extended Description
EZ5262CHRD Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, half controlled, NEMA 5-15R, three-wire, red
Product Name

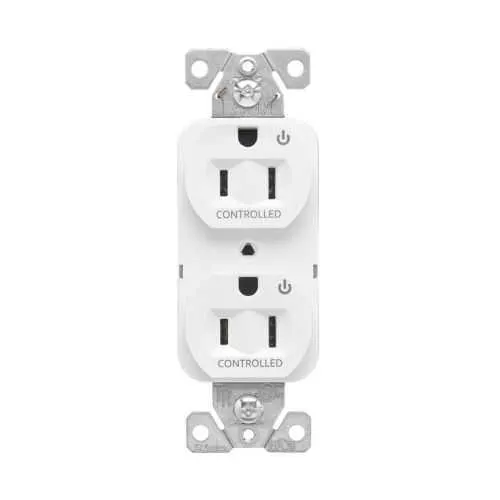

Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CHRD
UPC
032664010422
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Feature: 15A at 125V, 60 Hz operation with NEMA 5-15R sockets ensures broad compatibility for common loads in North American equipment. Business Impact: Supports reliable power delivery to motors, controllers, and auxiliary devices while minimizing voltage drop and nuisance trips. Application: Panel enclosures, machine control panels, and retrofit projects seeking standard wiring practices. Feature: Half-controlled, three-wire receptacle provides one switched outlet and one always-hot outlet. Business Impact: Enables simple on/off control of lighting or accessory loads without additional relays, reducing panel complexity. Application: Control cabinets and machine start/stop circuits. Feature: Compact dimensions (1.09 in depth x 1.46 in width x 4.2 in height) and light 0.2 lb weight. Business Impact: Frees space in crowded panels and reduces overall weight for easier handling during installation. Application: Dense control panels and modular panel boards. Feature: Red color coding for quick load differentiation. Business Impact: Improves wiring accuracy, reduces mis-wiring risk, and accelerates maintenance visits. Application: High-availability systems and color-coded panel wiring. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Ensures regulatory compliance, safer procurement, and smoother audits. Application: North American electrical installations in regulated industries.
