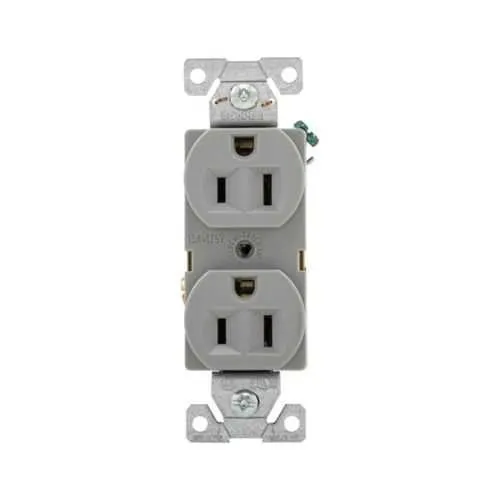

Eaton EZ5262GY EZLink duplex receptacle - cULus Listed
Part Number: EZ5262GY
Quick Summary
EZ5262GY is a modular duplex receptacle for reliable 15 A, 125 V power in control panels. Many teams struggle with finding compact, certified outlets that fit modular wiring schemes without compromising safety and speed. It carries cULus listing and NOM Federal Specification classification W-C-596G, underscoring compliance for industrial wiring devices. In addition to proven safety, the gray EZ5262GY integrates cleanly into Eaton EZLink modular devices, enabling scalable panel layouts. This translates to faster commissioning, reduced wiring errors, and consistent performance across legacy and new installations—helpful for manufacturers, integrators, and maintenance teams pursuing standardization and cost control. With a compact footprint and plug-ready NEMA 5-15R configuration, it supports reliable, code-compliant outlets in crowded enclosures. Understanding Eaton's EZLink modular lineup helps buyers streamline procurement and installation across multiple sites.
Product Information
Extended Description
EZ5262GY Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, NEMA 5-15R, three-wire, gray
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262GY
UPC
032664010453
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Gray
Compact footprint and modular design enable denser panel layouts and simplified field wiring. The EZ5262GY's slim profile reduces enclosure depth and hot-spot risk, while the modular approach supports systematic wiring schemes across multiple panels. This translates into faster deployment and easier future upgrades in control rooms and machine enclosures. The receptacle delivers 15 A at 125 V in a NEMA 5-15R three-wire configuration (gray). Because it uses a widely adopted receptacle standard, procurement teams benefit from broad compatibility and consistent performance across equipment from multiple vendors. Certified for cULus listing with NOM Federal Specification W-C-596G, the receptacle meets critical regulatory requirements for industrial electrical installations. This reduces compliance risk during audits and ensures safer integration into production lines. Compatibility with Eaton EZLink modular devices enables quick field replacements and scalable panel expansion. Installation is straightforward with a compact footprint—1.09 in length, 1.46 in width, and 4.2 in height—fitting crowded enclosures and reducing the need for custom panels. Weighing only 0.2 lb, the unit minimizes handling strain and improves installation ergonomics in tight spaces. The gray finish aligns with common electrical hardware aesthetics, aiding visual inspections and traceability. For project teams seeking durable, code-compliant power outlets in modular systems, EZ5262GY offers clear value through faster wiring, easier maintenance, and consistent performance—see Eaton's EZ Link modular devices brochure for reference.
Get a Quick Quote for a Eaton EZ5262GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262GY?
Enquire Now
FAQs
EZ5262GY is designed for seamless integration with Eaton EZLink modular devices. Install in standard electrical boxes compatible with NEMA 5-15R configurations, ensure grounding continuity, and align wiring with existing modular run plans. The compact 1.09 in depth helps when space is tight, and the gray finish supports consistent visual inspection across panels. This setup reduces rework and speeds up panel commissioning.
The receptacle is rated for 15A at 125V in a three-wire configuration with a NEMA 5-15R outlet. This aligns with common general-purpose circuits and standard 14 AWG conductors used in many facilities. Designers should plan for a standard 15A circuit fallout, ensure proper overcurrent protection, and maintain proper grounding to meet safety and code requirements.
EZ5262GY carries cULus listing and NOM W-C-596G classifications, signaling regulatory compliance for industrial wiring devices. While these certifications support safe integration in many environments, the component is not explicitly rated for washdown or immersion. Use within standard, climate-controlled enclosures and follow site-specific environmental and maintenance requirements.
EZ5262GY is cULus Listed and complies with NOM Federal Specification W-C-596G. These certifications confirm UL/CSA compatibility for industrial wiring devices and align with U.S. government and procurement standards. They help streamline supplier approvals, reduce compliance risk, and support safe integration across production lines and service environments.
The modular EZLink design simplifies maintenance and future expansion, reducing downtime during replacements. Its light 0.2 lb weight and compact dimensions ease handling in crowded enclosures, lowering labor costs and risk of damage. Widespread acceptance of the NEMA 5-15R configuration also minimizes stocking complexity, supporting faster ROI when upgrading legacy panels. For reference, consult Eaton’s EZ Link modular devices brochure for guidance.
