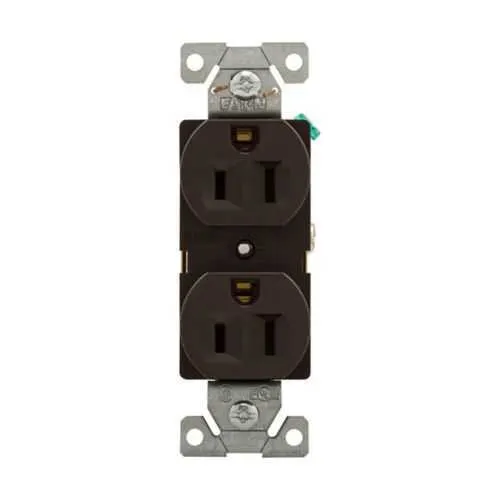

Eaton EZ5262SCB EZLink modular duplex receptacle - cULus
Part Number: EZ5262SCB
Quick Summary
EZ5262SCB, an Eaton EZLink modular duplex receptacle, delivers 15 A at 125 V for reliable power distribution in commercial panels. When space is tight or upgrades are planned, installers need a compact, easy-to-wire solution that stays compliant. This model carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, ensuring safety, traceability, and regulatory acceptance. Brown in color with a three-wire NEMA 5-15R configuration, EZ5262SCB supports straightforward integration with existing EZLink modules, enabling faster deployments and consistent electrical performance across panel runs and equipment outlets.
Product Information
Extended Description
EZ5262SCB Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, split control, NEMA 5-15R, three-wire, brown
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262SCB
UPC
032664010484
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
The EZ5262SCB delivers a 15 A, 125 V rating with a three-wire NEMA 5-15R outlet, which translates to compatibility with common office and light industrial loads while maintaining safe, reliable operation in panel installations. This feature drives business impact by reducing nuisance trips and voltage drop, enabling smoother equipment startup and more predictable performance in data centers, offices, and manufacturing lines. In practice, technicians can install this receptacle quickly in standard backboxes, minimizing field wiring errors and rework. The modular EZLink design adds another layer of value by allowing scalable configurations and easier future upgrades, improving project timelines and maintenance planning. The brown finish supports consistent aesthetics with other modular devices and simplifies inventory management for electrical crews.
Get a Quick Quote for a Eaton EZ5262SCB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262SCB?
Enquire Now
FAQs
EZ5262SCB is designed as a standard NEMA 5-15R receptacle suitable for 125 Vac circuits in 60 Hz systems. It uses a three-wire configuration and fits with Eaton’s EZLink modular devices for streamlined panel wiring. Its compact dimensions support backbox installations in tight spaces, and its brown color matches common panel and device aesthetics, improving field installability and traceability.
Rated 15 A at 125 Vac, EZ5262SCB uses three conductors and a NEMA 5-15R outlet. The unit supports standard 60 Hz operation and includes a compact form factor with a 1.09 in depth, 4.2 in height, and 1.46 in width. Weighing around 0.2 lb, it is suitable for lightweight control panels and equipment outlets.
EZ5262SCB is cULus Listed and NOM-certified, with Federal Specification W-C-596G alignment. These certifications ensure electrical safety, product traceability, and compliance with US and Canadian electrical standards. These marks support installation in regulated facilities, reduce the need for additional testing, and help meet procurement requirements.
Yes. The EZLink modular design and 15 A, 125 Vac capability make it ideal for panel builds, retrofits, and distributed power outlets in data centers, manufacturing lines, and offices. Its compact footprint minimizes enclosure space, while the modular approach enables faster replacements and easier scaling of receptacle configurations without rewiring, improving installation efficiency and long-term maintenance planning.
Long-term durability and standardized components reduce maintenance frequency and spare-part variety. The cULus NOM certifications streamline audits, while the 3-wire configuration supports safer, compliant wiring. The modular EZLink platform simplifies upgrades and expansions, lowering labor costs during changes and future-proofing panel hardware, delivering measurable ROI through faster installs, fewer field errors, and consistent electrical performance.
