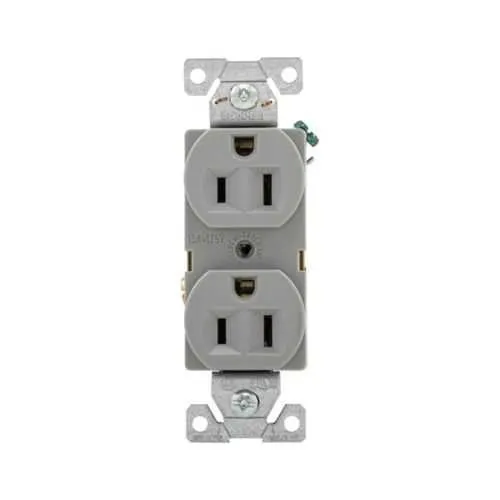

Eaton EZ5262SCGY EZLink duplex receptacle - cULus Listed
Part Number: EZ5262SCGY
Quick Summary
Eaton EZ5262SCGY is a modular duplex receptacle for reliable 125 Vac power in control panels. In tight enclosures or complex wiring runs, installers face space constraints, miswiring risk, and lengthy wiring tasks. This model is cULus Listed, NOM certified, and carries Federal Specification classification W-C-596G, underscoring North American compliance. Using this EZLink option helps standardize panel wiring, improve interchangeability with other modular devices, and reduce install time. Designed for electricians and engineers alike, it supports reliable NEMA 5-15R connections in industrial environments, delivering measurable cost and efficiency benefits.
Product Information
Extended Description
EZ5262SCGY Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, split control, NEMA 5-15R, three-wire, gray
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262SCGY
UPC
032664010507
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Gray
Feature: Modular EZLink duplex design provides a compact footprint and a standardized interface → Business Impact: Faster panel assembly, reduced miswiring, and easier future upgrades → Application: Control panels and modular device racks in industrial automation. Feature: Rated for 15A at 125 Vac with three wires for a stable, safe connection → Business Impact: Consistent power delivery with reduced nuisance trips and improved electrical safety → Application: Machinery control circuits and cabinet wiring where reliability is critical. Feature: Split control capability enables flexible wiring configurations → Business Impact: Greater design flexibility and easier circuit management in multi-function panels → Application: Process and automation panels requiring shared or separated load control. Feature: Gray finish and precise dimensions (1.09 in depth, 1.46 in width, 4.2 in height) support clear labeling and space planning → Business Impact: Optimized enclosure layout and easier visual diagnostics → Application: Enclosures with tight tolerances and color-coding schemes. Feature: Certifications cULus Listed, NOM, and Federal Specification W-C-596G provide regulatory assurance → Business Impact: Simplified compliance auditing and faster customer approvals → Application: Aerospace, defense, and regulated industrial settings.
Get a Quick Quote for a Eaton EZ5262SCGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262SCGY?
Enquire Now
FAQs
Yes. EZ5262SCGY is part of Eaton's EZLink modular devices family and is designed to integrate with other EZLink modules in standard control panels. Its 15A, 125Vac, three-wire NEMA 5-15R configuration supports streamlined wiring and quick cross-compatibility across a modular device rack, reducing stocking variety and installation time.
The receptacle is rated for 15A at 125Vac, 60 Hz, with three wires and a NEMA 5-15R configuration. It measures 1.09 in (depth) by 1.46 in (width) by 4.2 in (height) and weighs about 0.2 lb. It is gray and noted as split-control, aligning with common control-panel wiring practices.
cULus Listed and NOM certifications confirm compliance with North American electrical safety standards, while Federal Specification W-C-596G aligns with federal requirements. This reduces regulatory risk, simplifies approvals for industrial installations, and supports safer, code-compliant panel wiring in regulated environments.
EZLink modular design provides a consistent mechanical interface, reduces field wiring errors, and speeds up panel assembly. By using standardized connectors and a uniform footprint, installers can rapidly populate control panels and scale modular device racks without redesigning enclosures.
Using EZ5262SCGY can lower maintenance and lifecycle costs through reliable, standardized connections, reduced wiring errors, and faster future upgrades. The robust certifications provide assurance for code compliance, while the compact form factor supports denser panel layouts, contributing to overall CAPEX and OPEX savings.
