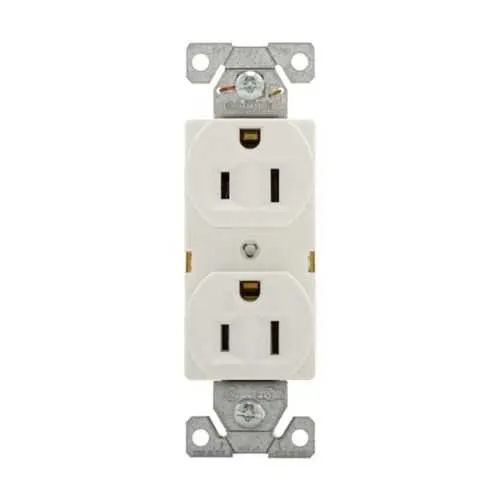

Eaton EZ5262SCRD EZLink modular duplex receptacle - cULus Listed
Part Number: EZ5262SCRD
Quick Summary
The Eaton EZ5262SCRD EZLink modular duplex receptacle provides reliable NEMA 5-15R power connections for commercial and industrial panels. That helps reduce wiring errors and shorten commissioning times in control cabinets and enclosures. This receptacle is cULus Listed, NOM, and meets Federal Specification W-C-596G, underscoring safety and regulatory compliance. Designed for modular devices and quick replacements in control panels, it boosts installation efficiency and standardization. Its 15A, 125V rating and red color aid fast identification and safe operation in busy industrial environments.
Product Information
Extended Description
EZ5262SCRD Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, split control, NEMA 5-15R, three-wire, red
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262SCRD
UPC
032664010521
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Red
EZ5262SCRD uses the EZLink modular design to deliver a compact yet robust NEMA 5-15R receptacle. This modular approach minimizes wiring points and allows quick field modifications, reducing wiring errors and rework. In practice, technicians wire once and reuse standardized connectors across multiple panels, speeding up commissioning in control cabinets and industrial enclosures while maintaining high reliability. Rated at 15A and 125Vac with a three-wire configuration, the red receptacle aligns with common branch circuits and equipment cords, ensuring compatibility and safe power distribution in labs, machine panels, and testing stations. Its dimensions—1.09 in depth, 4.2 in height, 1.46 in width—and light 0.2 lb weight enable mounting in tight spaces, reducing panel cutouts and installation time. Certifications—cULus Listed, NOM, W-C-596G—support regulatory compliance, audits, and corporate safety standards. The split control feature enhances flexible control schemes in automated lines, while modular design reduces provisioning time for new lines and simplifies long-term maintenance, delivering lower lifecycle costs and higher uptime in continuous-production environments.
Get a Quick Quote for a Eaton EZ5262SCRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262SCRD?
Enquire Now
FAQs
Yes. The EZ5262SCRD is designed as part of the Eaton EZLink modular system and uses a standard NEMA 5-15R form factor with a three-wire configuration. It supports quick wiring, standardized connectors, and straightforward integration with other EZLink modules in control panels and enclosures, aiding replacement and expansion projects.
The EZ5262SCRD is rated for 15A at 125Vac, configured as a three-wire NEMA 5-15R receptacle. It features a red housing for visibility and uses standard wiring practices for modular devices in electrical panels. The catalog number is EZ5262SCRD, and the UPC is 032664010521 for traceability.
Yes. Its compact footprint (1.09 in depth, 1.46 in width, 4.2 in height) and light weight (0.2 lb) are designed for tight enclosures and dense panel layouts. This enables easier installation, reduces required cutouts, and supports reliable, space-efficient power distribution in compact automation cabinets.
The EZ5262SCRD holds cULus Listed status, NOM compliance, and Federal Specification W-C-596G. These credentials support safety compliance, regulatory audits, and cross-border installations in North America, making it suitable for industrial environments and commercial facilities requiring rigorous standards.
Standardization with the EZLink modular approach reduces installation time and field errors, lowers labor costs, and simplifies spare parts management. In high-volume assemblies, this translates to faster uptime, easier replacements, and predictable maintenance cycles, delivering a favorable total cost of ownership for control panels and production lines.
