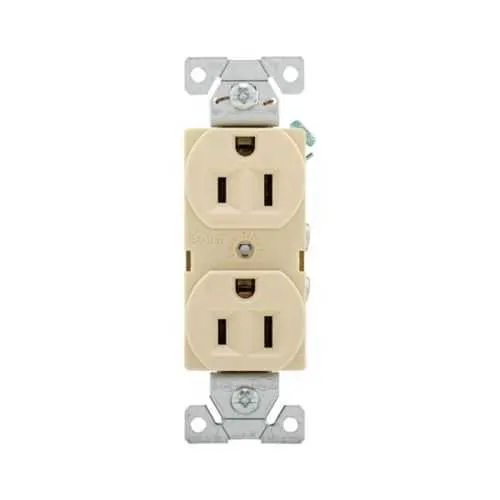

Eaton EZ5262V EZLink modular duplex receptacle - cULus
Part Number: EZ5262V
Quick Summary
The EZ5262V EZLink modular duplex receptacle provides reliable 15A, 125V NEMA 5-15R outlets for control panels in industrial environments. For engineers wrestling with slow installations and wiring errors, modular devices that snap together simplify panel routing and cut project time. It carries cULus listing with NOM compliance and Federal Specification classification W-C-596G, reinforcing safety, traceability, and regulatory alignment. In addition to compact dimensions and ivory finish, the EZ5262V delivers predictable performance in panel assemblies and reduces field rework. The combination of compact footprint, straightforward wiring, and cULus credibility makes it a reliable choice for panel builders and maintenance teams.
Product Information
Extended Description
EZ5262V Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, NEMA 5-15R, three-wire, ivory
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262V
UPC
032664010552
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature: 15A, 125V capability with a NEMA 5-15R outlet → Business Impact: Supports common loads while maintaining safety and compatibility in industrial environments → Application: Used in machine control panels and equipment enclosures. Feature: Modular EZLink design for quick field assembly → Business Impact: Reduces installation time and wiring errors, improving project schedules → Application: Panel racks and serviceable control decks. Feature: Three-wire grounding with ivory color → Business Impact: Ensures proper grounding and clear wiring while blending with equipment aesthetics → Application: Standard control circuits in industrial environments. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G → Business Impact: Enhances regulatory compliance, traceability, and customer acceptance → Application: Commercial and industrial panels requiring formal approvals. Feature: Compact dimensions (1.09 in depth, 1.46 in width, 4.2 in height) and 0.2 lb weight → Business Impact: Minimizes panel footprint and supports dense installations → Application: Space-constrained control cabinets and modular wiring assemblies.
Get a Quick Quote for a Eaton EZ5262V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262V?
Enquire Now
FAQs
Install the EZ5262V by integrating it into the appropriate panel module, ensuring proper alignment with the mounting footprint and securing with approved hardware. Connect the three wires to the corresponding terminals while observing safe de-energization practices. The modular design speeds deployment and reduces risk of mis-wiring, supporting rapid commissioning in machine control panels.
EZ5262V is a 15A, 125V NEMA 5-15R receptacle with a three-wire configuration. This supports standard single-phase power in industrial and commercial equipment. The device is suitable for typical control panel loads and is compatible with common wiring practices for panel-mounted receptacles, aiding predictable performance and safe distribution.
The EZ5262V is cULus Listed with NOM and Federal Specification Classification W-C-596G. These certifications ensure compliance with electrical safety, product traceability, and government specifications, which simplifies purchasing decisions, regulatory approvals, and integration into regulated panel assemblies.
Yes. The EZ5262V is designed as a NEMA 5-15R receptacle, aligning with standard 125V circuits and compatible with Eaton EZLink modular devices. This compatibility supports streamlined upgrades, common spare-part availability, and consistent performance across modular panel installations.
The EZ Link modular devices brochure is available at Eaton’s official site: EZ Link modular devices brochure. This resource provides additional technical details, installation guidance, and application notes to support panel designers and procurement teams.
