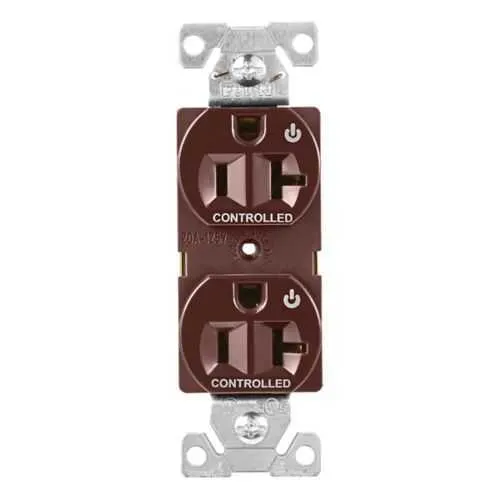

Eaton EZ5362CDB EZLink modular duplex receptacle - cULus
Part Number: EZ5362CDB
Quick Summary
EZLink modular duplex receptacle from Eaton delivers a dependable 20A, 125V power connection for commercial and industrial panels. It’s designed to minimize panel real estate use and simplify wiring in dense installations. The dual controlled NEMA 5-20R configuration supports independent control paths, improving safety and process automation versatility. Customers value consistent performance under varying loads and environments, and this receptacle meets that demand with robust construction and reliable materials. This product carries cULus listing, NOM and Federal Specification W-C-596G, reinforcing compliance across North American markets. Its brown finish aligns with standard industrial color codes, while compact dimensions and lightweight form factor help installers reduce labor time and overall lifecycle costs. The EZ5362CDB complements modular device ecosystems for scalable, maintainable electrical infrastructure.
Product Information
Extended Description
EZ5362CDB Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-20R, three-wire, brown
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362CDB
UPC
032664010590
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature: 20A, 125V, NEMA 5-20R dual controlled receptacle with three wires and brown color. Business Impact: Delivers reliable power with independent control paths, enabling safer start/stop sequences and flexible automation integration in panels. Application: Ideal for control panels and equipment racks where space is at a premium and precise load management is required. Feature: Compact footprint—1.91 in depth, 4.4 in height, 1.75 in width, and 0.2 lb weight. Business Impact: Maximizes panel density and reduces installation weight, contributing to faster commissioning and lower labor costs. Application: Dense modular enclosures and retrofit projects in manufacturing lines. Feature: Certifications cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Ensures regulatory compliance, simplifies audits, and reduces QA risk across North American facilities. Application: Industrial environments with strict safety and performance requirements. Feature: NEMA 5-20R compatibility and brown color coding. Business Impact: Maintains standard wiring practices while aiding visual identification and documentation. Application: New builds and upgrades in warehouses, processing plants, and automation rooms. Feature: EZLink modular design. Business Impact: Supports rapid expansion and straightforward maintenance within modular device ecosystems, cutting replacement time and preserving system uptime. Application: Scalable electrical infrastructure in evolving facilities.
Get a Quick Quote for a Eaton EZ5362CDB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362CDB?
Enquire Now
FAQs
EZ5362CDB is designed for commercial and industrial panels with 125 Vac supply and 20A circuits. It fits standard NEMA 5-20R outlets within modular distribution boards, control enclosures, and power blocks. The compact 1.91 in depth helps maximize panel density, while three-wire configuration supports safe, code-compliant wiring in mixed-voltage facilities. This improves serviceability in industrial environments.
Key specs include 20A amperage, 125 Vac voltage, NEMA 5-20R configuration, three wires, and brown color. The dual controlled feature allows separate control for each outlet path, improving safety and automation flexibility. With a compact footprint of 1.91 in depth and standard mounting, it supports reliable power delivery in crowded control panels and racks.
Yes. EZ5362CDB is cULus Listed and NOM certified, with Federal Specification W-C-596G coverage. These certifications confirm safe operation, materials compliance, and predictable performance across North American facilities, helping procurement teams meet regulatory requirements and streamline audits. The dual-controlled NEMA 5-20R design further supports safer, code-compliant power distribution.
Dual controlled means each outlet path can be controlled independently, permitting safer startup and isolation for automation loads. In practice, technicians can sequence energization, implement interlocks, and integrate with safety relays without disturbing adjacent circuits. This reduces wiring complexity and enhances fault containment while maintaining standard NEMA 5-20R compatibility. Engineers report smoother commissioning and less maintenance downtime.
Mounting and wiring considerations include using the EZLink footprint and ensuring a three-wire connection (two hot lines and a neutral) per NEMA 5-20R. Choose brown finish for documentation alignment, verify enclosure space, mounting hardware, and strain-relief compliance. Confirm 125 Vac operation at up to 20 A and ensure proper labeling within the panel schedule for future maintenance.
