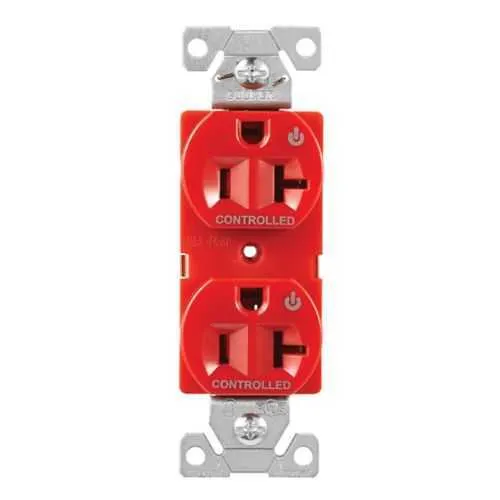

Eaton EZ5362CDRD EZLink duplex receptacle - cULus
Part Number: EZ5362CDRD
Quick Summary
EZLink modular duplex receptacle provides reliable power for industrial control panels. Engineers frequently grapple with miswiring, downtime during panel builds, and noncompliant outlets. This receptacle carries cULus Listed, NOM, and Federal Specification W-C-596G, with dual-controlled operation for safer multi-point control. Designed for easy integration with 20A, 125V systems, it simplifies procurement and accelerates panel builds while delivering code-compliant, reliable power. For maintenance teams, consistent labeling and color-coding reduce stocking errors and unplanned outages. Its red color and NEMA 5-20R configuration align with standard industrial wiring schemes.
Product Information
Extended Description
EZ5362CDRD Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-20R, three-wire, red
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362CDRD
UPC
032664010644
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Red
20A, 125V electrical rating is matched to common automation circuits, ensuring robust performance in control panels. This clear specification reduces the risk of overload and simplifies purchasing, because the receptacle is built to match standard equipment footprints. It applies to 20A devices, such as relays and drives, that require a reliable NEMA 5-20R connection. Dual-controlled operation enhances safety and control versatility. This design supports remote monitoring or local override in automation equipment. Applications include production lines and machine safety interlocks, where dependable access to power is essential. Modular EZLink design offers rapid installation and scalable configurations, reducing wiring errors and labor time during panel assembly. It is ideal for flexible power distribution blocks and modular wiring schemes. Compact footprint and well-defined dimensions—1.91 in depth, 1.75 in width, 4.4 in height—support high-density panel layouts and easier retrofits. Color coding in red improves circuit identification and maintenance efficiency in busy environments. Certifications such as cULus Listed, NOM, and Federal Specification W-C-596G provide regulatory confidence and safer procurement for North American facilities.
Get a Quick Quote for a Eaton EZ5362CDRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362CDRD?
Enquire Now
FAQs
EZ5362CDRD is designed as part of Eaton's EZLink modular devices family. It uses the NEMA 5-20R interface, supports 20A at 125V, and features dual-controlled operation for flexible control schemes in modular panels, ensuring straightforward interoperability with other EZLink components and standard automation wiring practices.
The EZ5362CDRD carries cULus Listed, NOM, and Federal Specification W-C-596G. These certifications confirm compliance with North American electrical safety standards, Mexican regulatory expectations, and federal specifications, providing regulatory confidence for procurement, warranty eligibility, and safer installation in industrial environments.
The receptacle measures 1.91 inches in depth, 1.75 inches in width, and 4.4 inches in height, with an approximate weight of 0.2 pounds. When mounting, ensure panel cutouts accommodate these dimensions and provide adequate clearance for wiring; the compact footprint supports high-density control panels and easy retrofits in existing enclosures.
Yes. With 20A, 125V capability, NEMA 5-20R compatibility, three-wire configuration, and dual-controlled operation, the receptacle is well-suited for automation panels, machine wiring, and safety interlocks. Its red color coding helps identify critical power circuits, supporting safer operation and easier diagnostics in demanding manufacturing environments.
Using the EZ5362CDRD can reduce wiring errors and panel assembly time thanks to its modular EZLink design and standardized 20A/125V spec. The cULus NOM and W-C-596G certifications reduce regulatory risk, improving procurement efficiency and lowering total cost of ownership over panel life through safer, faster installations and easier spare-part management.
