Eaton EZ5362CHGN EZLink modular duplex receptacle - cULus
Part Number: EZ5362CHGN
Quick Summary
The Eaton EZLink modular duplex receptacle provides controlled 125V power distribution for commercial and industrial equipment. Engineers often struggle with crowded panels, inconsistent outlet configurations, and the need for fast, compliant upgrades. This unit is cULus Listed and NOM, with Federal Specification W-C-596G, plus NEMA 5-20R compatibility for versatile installations. Industry teams gain predictable performance and faster sourcing, while maintaining safety and regulatory compliance. The green finish aids identification in multi-outlet assemblies, supporting streamlined maintenance and reduced error rates. Used across control panels, machine tools, and building automation enclosures, it scales with EZLink's modular family to simplify upgrades. Its 20A, 125V rating meets common industrial loads while offering a compact footprint.
Product Information
Extended Description

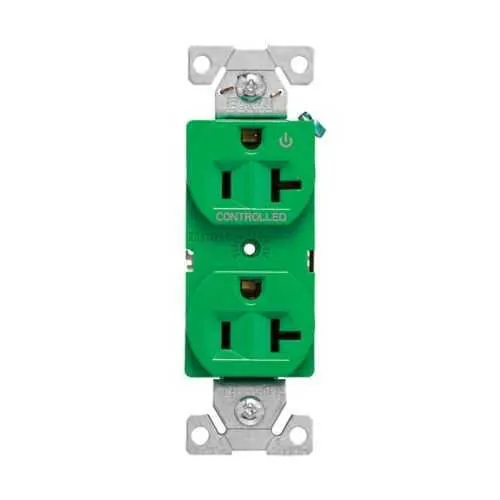

EZ5362CHGN Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, half controlled, NEMA 5-20R, three-wire, green
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362CHGN
UPC
032664010699
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Green
Feature ezLink modular design consolidates a duplex receptacle into a compact, modular unit, freeing panel space and simplifying wiring in control cabinets. This configuration speeds installation and eases future upgrades for automation panels and power-distribution enclosures. Business impact includes reduced labor time and lower field wiring complexity, enabling faster project completion and easier scalability for growing systems. Application spans control panels, machine tool enclosures, and building automation nodes, where modular devices simplify changes and spare parts management. Feature 20A, 125V, 60 Hz operation with NEMA 5-20R three-wire configuration and half-controlled functionality. Benefit ensures reliable loads and selective outlet control to improve energy management and safety. Application includes machine tools, robotics panels, and facility power runs. Feature certifications include cULus Listed, NOM, and Federal Spec W-C-596G, delivering compliance confidence while procurement remains streamlined. Benefit reduces risk in regulated environments and simplifies vendor qualification. Feature green color aids differentiation in multi-receptacle assemblies, reducing mis-wiring risk. Application spans high-visibility installations in panels and enclosures. Feature footprint and dimensions 1.91 in depth, 4.4 in height, 1.75 in width, combined with 0.2 lb weight, support compact, space-conscious installations. Benefit enables easier mounting and preserves valuable enclosure real estate. Compatibility notes include UPC 032664010699 and standard mounting practices, supporting quick swaps and consistent inventory management.
Get a Quick Quote for a Eaton EZ5362CHGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362CHGN?
Enquire Now
FAQs
EZ5362CHGN is designed for standard 125V, 60 Hz electrical systems with a NEMA 5-20R, three-wire configuration. It fits common electrical boxes and aligns with EZLink modular device installations to optimize panel real estate and simplify future upgrades. Ensure proper enclosure clearance and follow local wiring code during module integration.
This receptacle is rated 20A at 125Vac, 60 Hz, and uses a three-wire NEMA 5-20R configuration. Half-controlled operation provides selective outlet control, aiding energy management and safety in automation panels. These specs support typical industrial loads while maintaining design flexibility for control cabinets and power-distribution enclosures.
Yes. The unit is cULus Listed and NOM with Federal Specification W-C-596G, aligning with rigorous safety and government standards. This certification set simplifies supplier qualification, supports procurement for regulated spaces, and helps ensure product acceptance across public, municipal, and commercial installations.
Modular EZLink design reduces panel crowding and simplifies swaps, lowering labor time during maintenance. Standardized 20A/125V outlets streamline inventory, enabling faster replacements and predictable replacement cycles. Over the lifecycle, this can lower downtime and total cost of ownership for control panels and automation systems.
Additional technical details are available through Eaton’s EZ Link modular devices brochure. The brochure covers installation guidance, compatibility with other EZLink modules, and application examples to support design reviews and procurement decisions. Access the brochure via the provided asset URL in the product listing for comprehensive specifications.
