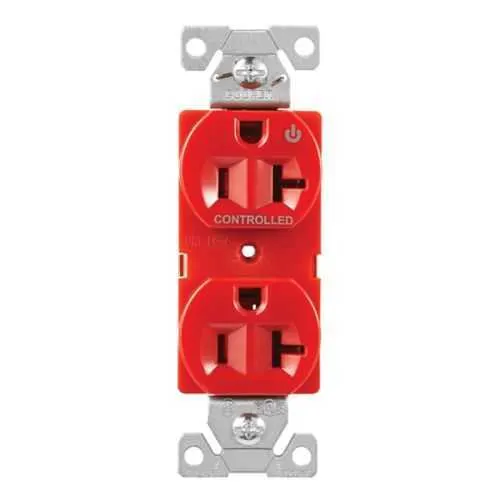

Eaton EZ5362CHRD EZLink duplex receptacle - cULus
Part Number: EZ5362CHRD
Quick Summary
The Eaton EZ5362CHRD EZLink modular duplex receptacle provides a rugged, 20 A outlet for control panels and industrial enclosures. In harsh environments, wiring errors and misidentification slow projects and extend downtime. It carries cULus Listed, NOM, and Federal Specification Classification W-C-596G certifications, signaling strong code compliance and reliability. Designed for NEMA 5-20R compatibility and quick field installation, it reduces wiring mistakes and simplifies spare inventory, delivering faster maintenance and lower total cost of ownership. Red color coding supports clear circuit differentiation, making it a practical choice for panel builders and machine integrators seeking safer, faster startups.
Product Information
Extended Description
EZ5362CHRD Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, half controlled, NEMA 5-20R, three-wire, red
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362CHRD
UPC
032664010729
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Feature → Business Impact → Application: The EZLink modular design enables fast, modular installation, reducing panel wiring time by minimizing field connections and errors, which translates to measurable installation efficiency gains on new builds and renovations in automation cabinets. This supports tighter project schedules and lower labor costs for system integrators working on machine control enclosures. Application: control panels and electrical enclosures in manufacturing lines. Feature → Business Impact → Application: 20 A, 125 VAC, 60 Hz, 3-wire NEMA 5-20R capability ensures compatibility with common industrial outlets, delivering reliable performance for motors and auxiliary devices while maintaining strict electrical standards. Application: remote I/O racks and equipment housings that demand robust power distribution. Feature → Business Impact → Application: Half controlled operation plus red, 3-wire configuration enhances safety and circuit identification, reducing misconnection risks during maintenance and component swaps. Application: hazardous or critical-control circuits in process lines. Feature → Business Impact → Application: cULus Listed, NOM, and W-C-596G classifications provide cross-market compliance, simplifying procurement and reducing QA cycles. Application: multinational manufacturing environments with varied regulatory requirements. Feature → Business Impact → Application: Compact dimensions (1.91 in L × 4.4 in H × 1.75 in W) and light 0.2 lb weight support easy mounting in dense panels, lowering enclosure footprint and enabling denser electrical layouts. Application: space-constrained control panels and instrument enclosures. Feature → Business Impact → Application: NEMA 5-20R compatibility and durable red finish aid clear identification and rapid replacement, improving maintenance response times in high-availability systems.
Get a Quick Quote for a Eaton EZ5362CHRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362CHRD?
Enquire Now
FAQs
EZ5362CHRD is designed as a NEMA 5-20R receptacle suitable for standard electrical panels and enclosures. Its 20A, 125VAC rating, three-wire configuration, and EZLink modular design enable straightforward integration with common control panels, remote motor starters, and machine enclosures, reducing wiring complexity and enabling quick replacement or upgrades.
Key specs include 20A amperage rating, 125 VAC voltage, 60 Hz frequency, three-wire configuration, and NEMA 5-20R compatibility. The device is red for circuit differentiation and offers half-controlled functionality, with a rugged construction suitable for industrial environments and compliant with cULus, NOM, and Federal W-C-596G standards.
Yes, for regulated environments the cULus and NOM certifications support code compliance across jurisdictions, while the Federal Specification classification adds assurance for government or military-adjacent deployments. However, users should verify any site-specific IP, washdown, or sterilization requirements since no IP rating is specified in the data.
cULus Listed confirms compliance with UL and Canadian safety standards for electrical products, NOM indicates Mexican standards alignment, and W-C-596G is a Federal Specification classification. Together they signal broad regulatory acceptance, simplifying cross-border procurement and reducing component risk in multinational deployments.
The modular EZLink design minimizes field-wiring tasks, speeding installations and enabling rapid replacements. Combined with clear circuit identification (red) and standard NEMA 5-20R compatibility, electricians spend less time on wiring mistakes and troubleshooting, improving uptime and reducing total cost of ownership over the equipment’s life cycle.
