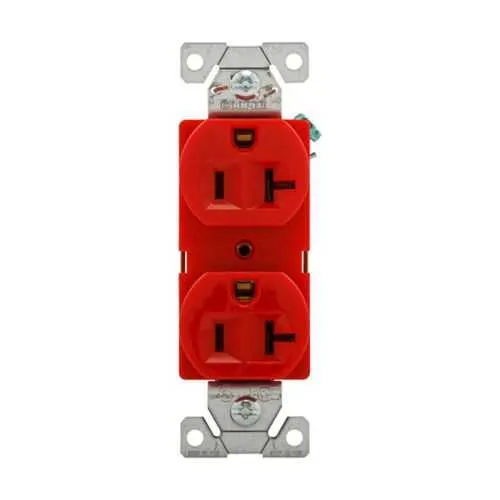

Eaton EZ5362RD EZLink modular duplex receptacle - cULus
Part Number: EZ5362RD
Quick Summary
EZ5362RD EZLink modular duplex receptacle is a 20A, 125Vac outlet designed for control panels and industrial enclosures. In tight spaces where wiring clarity and plug compatibility matter, choosing the right receptacle reduces mis-wiring and downtime. This device carries cULus listing, NOM compliance, and Federal Specification W-C-596G, supporting compliant installations in North American facilities. Its NEMA 5-20R, three-wire configuration in red helps quick circuit identification, while its compact footprint supports efficient panel layouts. Engineers benefit from faster commissioning, predictable performance, and lower service costs with a standardized, rugged power interface.
Product Information
Extended Description
EZ5362RD Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, NEMA 5-20R, three-wire, red
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362RD
UPC
032664010811
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Feature: 20A, 125Vac rating. Business Impact: Supports standard industrial loads with margin to prevent nuisance trips in automation equipment. Application: Ideal for control panels and automation racks in manufacturing environments. Feature: NEMA 5-20R, three-wire, red color. Business Impact: Ensures compatibility with common plugs and rapid circuit identification to reduce wiring errors and downtime. Application: Suitable for safety-critical circuits in enclosures and instrument panels. Feature: EZLink modular design. Business Impact: Enables modular expansion and easier maintenance, lowering downtime and labor costs during upgrades. Application: Fast field upgrades in evolving control panel configurations. Feature: Certifications (cULus Listed, NOM, W-C-596G). Business Impact: Compliance reduces regulatory risk and rework for North American deployments. Application: OEM equipment and industrial facilities requiring robust documentation. Feature: Compact dimensions (1.91 in L, 1.75 in W, 4.4 in H) and weight (0.2 lb). Business Impact: Space-efficient footprint simplifies enclosure design and reduces panel depth. Application: Small-form-factor installations in tight spaces where performance cannot be compromised.
Get a Quick Quote for a Eaton EZ5362RD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362RD?
Enquire Now
FAQs
EZ5362RD is a 20A, 125Vac NEMA 5-20R modular receptacle that accepts standard NEMA 5-20P plugs, making it suitable for typical automation and control-panel loads.
It is cULus Listed with NOM compliance and Federal Specification W-C-596G, ensuring compliance with North American safety and performance standards.
Length 1.91 in, width 1.75 in, height 4.4 in, and weight approximately 0.2 lb, enabling a compact installation in tight panels.
Ideal for industrial enclosures, control panels, and OEM equipment where reliable 20A power distribution and quick circuit identification are important.
It uses a three-wire connection with a red color code for circuit identification; ensure proper wiring per NEC/NOM guidelines and secure panel mounting for long-term reliability.
