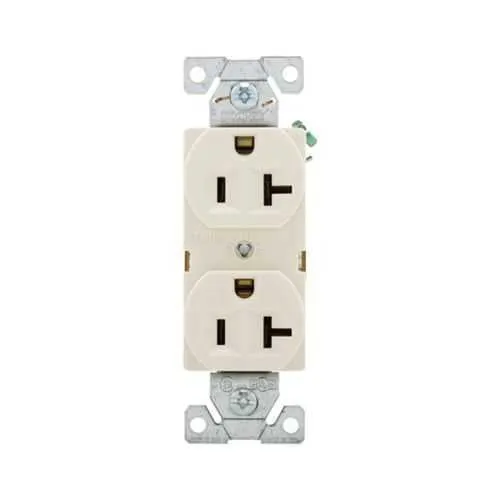

Eaton EZ5362SCLA EZLink modular duplex receptacle - cULus Listed
Part Number: EZ5362SCLA
Quick Summary
Eaton EZ5362SCLA EZLink modular duplex receptacle is a 20A, 125V power outlet designed for reliable distribution in commercial and industrial panels. It helps engineers avoid mismatched outlets and lengthy wiring by leveraging a compact modular footprint. With cULus Listed, NOM, and Federal Specification W-C-596G classifications, it meets essential safety and regulatory requirements for critical electrical installations. The unit’s split-control capability and NEMA 5-20R configuration provide flexible wiring options for mixed loads, while its light almond finish integrates with standard panel aesthetics. For procurement teams, its standardized footprint and clear specifications reduce stocking complexity and support faster maintenance and retrofit projects within industrial facilities.
Product Information
Extended Description
EZ5362SCLA Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, split control, NEMA 5-20R, three-wire, light almond
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362SCLA
UPC
032664010859
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Light Almond
The EZ5362SCLA is a 20A, 125V, three-wire receptacle with a NEMA 5-20R configuration designed for modular EZLink installations. This feature translates to greater wiring flexibility and compatibility with common 20A circuits, enabling faster panel updates and safer, code-compliant power distribution in distribution boards and equipment enclosures. Its compact footprint—1.91 in depth, 4.4 in height, and 1.75 in width—maximizes panel space, reducing enclosure crowding and enabling more efficient device packing in dense electrical assemblies. The light almond color supports clear visual differentiation for circuits or loads, improving field organization and maintenance workflows. Certifications, including cULus Listed, NOM, and Federal Specification W-C-596G, bolster regulatory compliance and supplier confidence for mission-critical installations. The product’s split-control capability provides a practical path to flexible electrical topology without sacrificing reliability, while the three-wire design ensures robust grounding and neutral performance. In practice, technicians appreciate the straightforward installation with a standard UPC and easy-trace wiring routes, which reduces commissioning time and field errors in busy industrial environments.
Get a Quick Quote for a Eaton EZ5362SCLA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362SCLA?
Enquire Now
FAQs
EZ5362SCLA is specifically rated for 20A at 125V and uses the NEMA 5-20R configuration, making it a direct fit for standard 20A branch circuits in commercial and industrial panels. Its three-wire design (hot, neutral, ground) supports typical plug loads, while the compact 1.91 in depth helps fit within crowded enclosures. For a reliable retrofit, verify enclosure space and ensure switch-controlled or split-load configurations align with your panel plan.
Key specs include 20A amperage rating, 125 Vac voltage rating, 60 Hz frequency, three-wire for hot/neutral/ground, and NEMA 5-20R receptacle configuration. The unit is part of Eaton's EZLink modular family, designed for quick deployment in modular electrical assemblies with a light almond finish and compact footprint.
This receptacle is well-suited for commercial and light industrial panels, equipment racks, and modular wiring devices where 20A 125V power distribution is needed. Its split-control capability supports scenarios with separate control of different loads, while the modular EZLink platform facilitates scalable upgrades, retrofit projects, and standardized stocking in facilities that require reliable, code-compliant outlets.
EZ5362SCLA carries cULus Listed, NOM, and Federal Specification W-C-596G certifications. These approvals indicate adherence to recognized safety and performance standards in North America, support compliance with wiring codes, and provide assurance for procurement and installation in regulated industrial environments.
The EZLink modular design simplifies installation by providing a predictable footprint and standardized wiring paths, reducing field wiring errors and commissioning time. It also supports faster retrofits and easier expansion in control panels, improving total cost of ownership through reduced downtime and simplified spare-part management.
