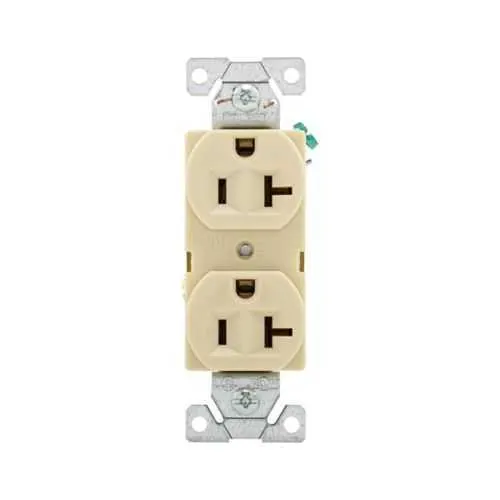

Eaton EZ5362SCV EZLink duplex receptacle - cULus Listed
Part Number: EZ5362SCV
Quick Summary
The Eaton EZ5362SCV EZLink modular duplex receptacle is a 20A, 125V outlet solution for commercial and industrial enclosures. Engineers often struggle with wiring complexity and retrofit compatibility when updating panel outlets, making fast, reliable installs essential. The unit ships with cULus Listing, NOM, and Federal Specification W-C-596G, underscoring safety, procurement, and regulatory alignment. Designed for easy integration, it supports compact, modular power distribution in control panels and equipment enclosures, helping keep spare parts and labor costs down. With 60 Hz compatibility, NEMA 5-20R, three-wire grounding, and split control, it reduces mis-wiring risks and speeds maintenance. This combination supports scalable, compliant power distribution in control panels, electrical enclosures, and retrofit projects.
Product Information
Extended Description
EZ5362SCV Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, split control, NEMA 5-20R, three-wire, ivory
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362SCV
UPC
032664010873
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature → Business Impact → Application: 20A, 125V electrical rating enables standard commercial circuits to power equipment without oversized infrastructure, reducing wiring redundancy and energy waste in manufacturing lines. Result: lower project costs and simpler procurement for controls integrators installing EZLink modules in control panels. Application: Electrical enclosures and modular panels where space is at a premium; the compact 1.91 in depth footprint improves fitment in tight enclosures and reduces panel depth requirements. Feature → Business Impact → Application: NEMA 5-20R, three-wire configuration provides correct grounding and wiring polarity, minimizing mis-wiring risks during commissioning and routine maintenance. Application: New builds and retrofit projects across industrial environments that demand reliable grounded outlets. Feature → Business Impact → Application: Split control and ivory color finish improve labeling ease and maintenance visibility, improving operator efficiency and reducing downtime during servicing. Application: Control rooms and equipment cabinets where color-coding and quick identification are beneficial. Feature → Business Impact → Application: cULus Listed, NOM, and W-C-596G compliance ensure safety and procurement alignment, enabling faster approvals and reducing compliance risk. Application: Any regulated industrial installation requiring robust certifications. Feature → Business Impact → Application: Modular EZLink design simplifies retrofits and compatibility with Eaton’s modular devices, shortening installation time and enabling scalable expansion. Application: Retrofit programs within existing control panels and switchgear stacks.
Get a Quick Quote for a Eaton EZ5362SCV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362SCV?
Enquire Now
FAQs
EZ5362SCV is designed for quick integration in enclosures and control panels, featuring a NEMA 5-20R configuration and three-wire grounding. Its compact depth of 1.91 in and modular EZLink design help installers align with existing layouts, reduce wiring complexity, and shorten commissioning times while maintaining compliance with cULus, NOM, and W-C-596G requirements.
The receptacle provides 20A at 125V with 60 Hz operation and a three-wire configuration for proper grounding. It uses a NEMA 5-20R outlet, is ivory in color, and supports split control for flexible power management in modular panels and enclosures.
Yes. It is cULus Listed, conforms to NOM, and carries Federal Specification Classification W-C-596G, ensuring safety, quality, and procurement compliance for regulated environments and government-grade projects.
Best suited for electrical enclosures, control panels, and equipment racks in industrial settings. Its modular EZLink design and compact footprint enable scalable power distribution, quick retrofits, and consistent outlet performance across demanding environments.
EZ5362SCV offers a modular design that simplifies upgrades and replacements, a compact 1.91 in depth for tight spaces, and a robust 20A/125V rating with a NEMA 5-20R. These features reduce wiring errors, maintenance time, and parts inventory while supporting compliant, long-term serviceability.
