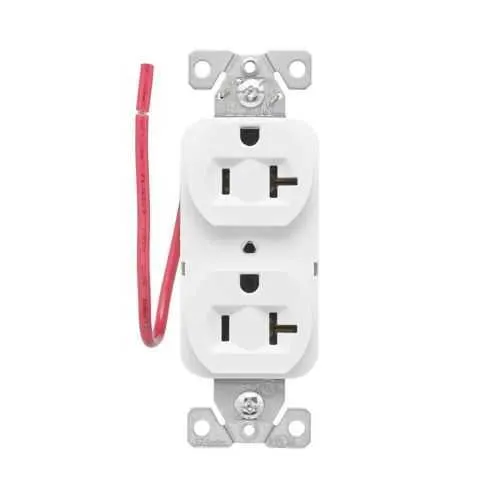

Eaton EZ5362SCW EZLink modular duplex receptacle - cULus
Part Number: EZ5362SCW
Quick Summary
The Eaton EZLink modular duplex receptacle is a compact 20A, 125V power outlet designed for commercial and industrial panels. Managing wiring density and ensuring reliable, code-compliant connections in crowded panels is a common challenge, and this device helps simplify that. It carries cULus listing, NOM certification, and Federal Specification W-C-596G, aligning with mainstream safety and procurement requirements. With 20 A at 125 V and a NEMA 5-20R three-wire configuration, it delivers dependable power distribution in a compact form. For buyers seeking scalability and ease of installation, this module integrates smoothly with Eaton's EZLink line to optimize panel layouts. Its white finish matches standard electrical enclosures, aiding consistent field deployments.
Product Information
Extended Description
EZ5362SCW Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, split control, NEMA 5-20R, three-wire, white
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5362SCW
UPC
032664010880
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature → Business Impact → Application: The EZLink modular design enables rapid reconfiguration of outlets in panels, reducing wiring time and panel depth while increasing layout flexibility for evolving equipment needs in control cabinets and machine centers. This translates to measurable efficiency gains during commissioning and future upgrades, especially in dense electrical enclosures where space is at a premium. Application: control panels, machine frames, and equipment racks that require scalable power distribution with minimal rework. Feature → Business Impact → Application: A 20A, 125V rating with a NEMA 5-20R three-wire configuration ensures compatibility with common equipment loads while maintaining safety margins and overcurrent protection. Application: industrial automation skids, process control panels, and IT/equipment rooms needing reliable outlets for critical devices. Feature → Business Impact → Application: cULus Listed, NOM, and W-C-596G compliance streamline supplier qualification, audits, and procurement. This reduces risk and improves pass-through compliance for regulated facilities. Application: facilities subject to safety inspections and regulatory reporting. Feature → Business Impact → Application: Compact footprint — 1.91 in depth, 4.4 in height, 1.75 in width, 0.2 lb weight — allows higher outlet density and easier mechanical routing. Application: crowded panels and equipment housings where space optimization drives cost savings. Feature → Business Impact → Application: NEMA 5-20R three-wire wiring with a white finish improves visibility and labeling in field installations. Application: panel interfaces requiring clear identification and consistent aesthetics for maintenance and operations teams.
Get a Quick Quote for a Eaton EZ5362SCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5362SCW?
Enquire Now
FAQs
The EZ5362SCW supports a three-wire configuration with a 20A, 125V rating and NEMA 5-20R receptacle. It is designed for use in standard electrical panels and integrates with EZLink modular devices, simplifying wiring strategies and future upgrades while maintaining code compliance.
This receptacle is cULus Listed, and complies with NOM and Federal Specification W-C-596G, providing confidence for safety audits, regulatory adherence, and procurement requirements for mainstream facilities.
Yes. Its modular EZLink design combined with a compact footprint (1.91 in depth, 4.4 in height, 1.75 in width) supports flexible layouts, high outlet density, and easier field wiring in control panels and industrial equipment enclosures.
cULus, NOM, and W-C-596G certifications provide documented safety and regulatory alignment, simplifying supplier qualification, inspection readiness, and compliance reporting during audits and regulatory reviews.
Expect reduced wiring time and labor due to the modular EZLink design, improved panel density, and easier future reconfigurations, all while meeting standard electrical specs (20A, 125V, NEMA 5-20R) and compliance requirements, contributing to lower lifecycle costs.
