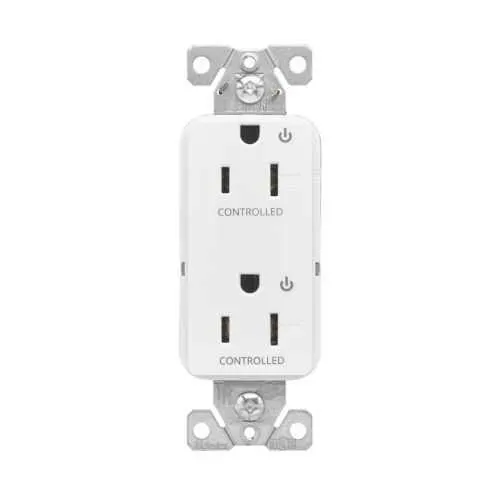

Eaton EZ6262CDGN EZLink modular decorator receptacle - cULus
Part Number: EZ6262CDGN
Quick Summary
EZLink modular decorator receptacle from Eaton provides reliable, code-compliant power distribution for commercial and industrial workstations. Too often installations face loose connections, mis-wired terminations, and non-compliance during panel upgrades. This unit is cULus Listed, NOM, and Federal Specification Classification W-C-596G, delivering regulatory confidence and traceability. Designed for 15 A at 125 VAC with a compact footprint, it aligns with modular devices and NEMA 5-15R outlets to streamline wiring. In practice, this means faster install times, fewer field errors, and consistent performance across equipment cabinets and control panels.
Product Information
Extended Description
EZ6262CDGN Eaton: Eaton EZLink modular decorator receptacle, 15 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-15R, three-wire, green
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZ6262CDGN
UPC
032664010958
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Green
Feature: Amperage and voltage rating are 15A at 125 VAC, 60 Hz. Business Impact: Supports standard office and industrial loads with reliable power delivery, reducing nuisance trips and electrical noise. Application: Control panels and workstation outlets requiring a standard NEMA 5-15R configuration. Feature → Business Impact → Application: Dual controlled operation enables independent control points, improving energy management and equipment safety in machine interfaces and modular enclosures. Feature: Compact dimensions (1.91 in depth, 1.75 in width, 4.4 in height) and weight of 0.2 lb. Business Impact: Space-efficient footprint that eases panel layout, allows easier retrofits, and reduces enclosure footprint. Application: Retrofit projects and new panel builds in tight spaces such as automation cabinets and workstation latching areas. Feature: Green color and NEMA 5-15R three-wire configuration. Business Impact: Clear visual identification aids safe wiring practices and simplifies color-coded installations. Application: Site-wide color-coding schemes for standardized electrical distribution in manufacturing lines. Feature: Certifications including cULus Listed, NOM, and W-C-596G. Business Impact: Regulatory compliance reduces audit findings and accelerates approvals for installed equipment. Application: Industrial automation deployments requiring formal safety and performance attestations. Feature: Dual-rated compatibility with EZLink modular devices. Business Impact: Simplifies expansion and maintenance by ensuring seamless integration with existing modular device ecosystems. Application: Upgrades and scale-outs in control panels and instrument enclosures across plants.
Get a Quick Quote for a Eaton EZ6262CDGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ6262CDGN?
Enquire Now
FAQs
The EZ6262CDGN is a 15 A, 125 VAC NEMA 5-15R receptacle designed for modular devices. It uses a three-wire configuration and fits standard panel cutouts. Ensure correct wiring polarity and secure terminations to prevent loose connections. Its compact depth of 1.91 in and lightweight design simplify retrofits in crowded control panels and instrument enclosures.
Yes. The EZ6262CDGN is part of the EZLink modular family and is designed for seamless integration with other EZLink modular devices. Its green, three-wire NEMA 5-15R configuration supports straightforward installation in modular panels, enabling scalable storage and future expansion without rewiring existing infrastructure.
The EZ6262CDGN carries cULus Listed, NOM, and Federal Specification Classification W-C-596G. These certifications confirm compliance with safety and performance standards, aiding regulatory approvals and improving audit readiness for industrial automation projects. They also help ensure consistent quality across multi-site installations and reduce risk during inspections.
This receptacle is ideal for control panels, machine interfaces, and modular instrument enclosures that require reliable 15 A, 125 VAC power. Its modular design and NEMA 5-15R compatibility support quick deployments in automation cabinets, equipment housings, and workstation outlets, delivering dependable power distribution in manufacturing and process environments.
Using the EZ6262CDGN reduces wiring errors and installation time thanks to its standardized modular design and pre-certified components. Regular maintenance benefits include predictable performance, easier fault tracing due to consistent NEMA 5-15R wiring, and smoother future expansions with EZLink devices, driving lower lifecycle costs and improved uptime in automated facilities.
