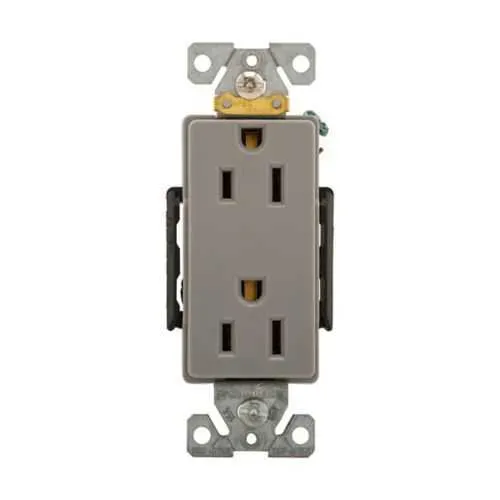

Eaton EZ6262GY EZLink receptacle - cULus Listed
Part Number: EZ6262GY
Quick Summary
EZ6262GY is a modular decorator receptacle designed for quick, reliable power distribution in electrical enclosures. Panel upgrades and retrofits often stall on wiring complexity and compatibility; this device minimizes field wiring errors and reduces retrofit time. It carries multiple certifications—cULus Listed, NOM, and Federal Specification W-C-596G—supporting compliance in commercial and industrial environments. By delivering a compact 15A, 125V solution in gray, it aligns with common Eaton EZLink modular devices and simplifies procurement while improving reliability and uptime.
Product Information
Extended Description
EZ6262GY Eaton: Eaton EZLink modular decorator receptacle, 15 A, 125 Vac, 60 Hz, NEMA 5-15R, three-wire, gray
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZ6262GY
UPC
032664011092
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Gray
Feature: 15A at 125V NEMA 5-15R three-wire design. Business Impact: supports standard lighting and outlet loads in control cabinets without overloading circuits, enabling reliable equipment operation. Application: suitable for data centers, machine enclosures, and industrial panels seeking straightforward power expansion. Feature: Modular decorator form factor. Business Impact: reduces panel footprint and simplifies field wiring by fitting existing modular device slots, cutting installation time. Application: retrofits and new builds where space is at a premium. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: strengthens regulatory alignment and vendor qualification tests, lowering risk during audits. Application: use in regulated facilities, commercial buildings, and process lines. Feature: Compact dimensions with defined footprint. Business Impact: saves backbox space and eases cable management, improving enclosure cleanliness and airflow. Application: tight panel interiors and crowded electrical rooms. Feature: Lightweight construction of 0.2 lb. Business Impact: simplifies handling and reduces installation fatigue on site. Application: quick deployments in field service or module swaps.
Get a Quick Quote for a Eaton EZ6262GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ6262GY?
Enquire Now
FAQs
Power must be OFF. Remove the panel cover, align the EZ6262GY into a compatible modular slot, and connect the hot, neutral, and ground conductors to the three-wire receptacle per local code. Secure the device, reassemble the enclosure, and test for correct grounding and operation. Use the catalog EZ6262GY as reference for wiring diagrams.
Yes. The EZ6262GY is rated for 15A at 125V and uses a standard NEMA 5-15R receptacle layout with three-wire grounding, designed for common residential and light commercial loads in control panels and enclosures.
The device is cULus Listed, with NOM and Federal Specification W-C-596G. These certifications support regulatory compliance across North American markets, simplify procurement for regulated facilities, and enhance audit readiness for safety and performance standards.
The receptacle measures 1.91 inches in depth, 4.4 inches in height, and 1.75 inches in width, with a shipping weight of about 0.2 pounds. Its gray finish and compact footprint suit crowded enclosures and streamline cable management.
Eaton provides the EZ Link modular devices brochure, which offers installation tips, compatibility notes, and product guidance. Access the brochure at the asset URL linked in the product downloads section to support design and field deployment.
