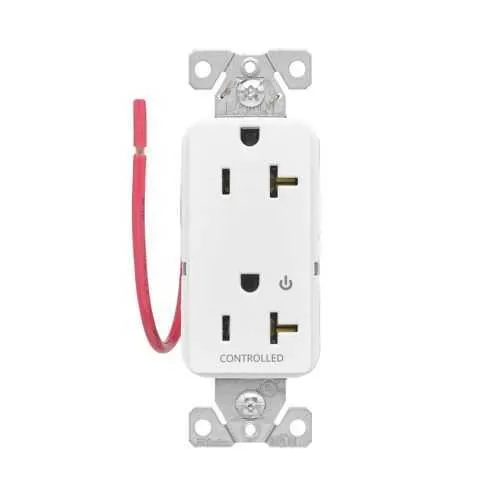

Eaton EZ6362CHGN EZLink modular decorator receptacle - cULus Listed
Part Number: EZ6362CHGN
Quick Summary
Eaton EZ6362CHGN EZLink modular decorator receptacle delivers flexible 20 A, 125 VAC outlets for commercial enclosures. Design engineers often struggle with fixture compatibility and code-compliant wiring inside tight electrical panels. It carries cULus listing, NOM certification, and Federal Specification W-C-596G for increased regulatory confidence. For installers, its NEMA 5-20R compatibility and compact footprint simplify mounting, wiring, and future expansion. This solution supports efficient panel layouts and scalable power distribution across Eaton modular devices, delivering reliability and faster commissioning. Additionally, the green color option aligns with color-coded safety practices in facilities, facilitating clear identification and reducing miswiring risk.
Product Information
Extended Description
EZ6362CHGN Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, half controlled, NEMA 5-20R, three-wire, green
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZ6362CHGN
UPC
032664012310
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Green
The 20 A, 125 VAC rating with a three-wire design delivers reliable, code-compliant power for typical commercial equipment, reducing wiring errors and field rework. This translates to faster commissioning and consistent performance across EZLink modules, enabling streamlined panel layouts and easier future upgrades. The compact footprint (1.91 in depth, 1.75 in width, 4.4 in height) and light weight (0.2 lb) save valuable panel space and enclosure costs, improving overall installation efficiency. Certifications such as cULus, NOM, and Federal Specification W-C-596G provide regulatory assurance, helping projects meet safety standards in regulated environments like data centers and hospitals. Green color coding enhances safety practices by simplifying circuit identification, while three-wire NEMA 5-20R compatibility supports flexible deployment in mixed-load panels. The design is optimized for modular wiring systems, reducing complexity during expansion or maintenance.
Get a Quick Quote for a Eaton EZ6362CHGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ6362CHGN?
Enquire Now
FAQs
Install EZ6362CHGN by aligning it with the EZLink modular family in your control panel, connecting the three conductors to the line, neutral, and ground as per standard electrical practice for a NEMA 5-20R receptacle. Verify a 20 A, 125 VAC rating and 60 Hz operation, ensure proper enclosure clearance, and follow NOM/UL guidelines during wiring and mounting to ensure regulatory compliance and reliable performance.
EZ6362CHGN is rated for 20 A at 125 VAC with 60 Hz operation and uses three wires. It features a NEMA 5-20R receptacle, is green in color, and is designed for use in commercial and light-industrial environments. The unit is certified to cULus, NOM, and Federal Specification W-C-596G, supporting safe, code-compliant installations.
Yes. The receptacle carries cULus listing, NOM certification, and Federal Specification W-C-596G, providing robust regulatory alignment. Its three-wire NEMA 5-20R design and 20 A, 125 VAC rating meet common facility requirements, while the modular EZLink platform supports scalable, dependable power distribution in controlled environments such as data centers, labs, and medical facilities.
EZ6362CHGN offers a compact footprint—1.91 in depth, 1.75 in width, and 4.4 in height—and lightweight construction at 0.2 lb. These attributes minimize panel depth requirements, enable denser layouts, reduce enclosure costs, and simplify retrofits. Its green color aids circuit identification, improving safety and reducing wiring mistakes during upgrades or maintenance.
The upgrade delivers faster commissioning through modular wiring and standardized connectors, reduces field modification time, and lowers installation risk with established cULus/NOM/W-C-596G compliance. The small footprint and low weight enable denser panel designs, potentially lowering enclosure space and material costs over multiple deployment points in facilities with expanding power needs.
