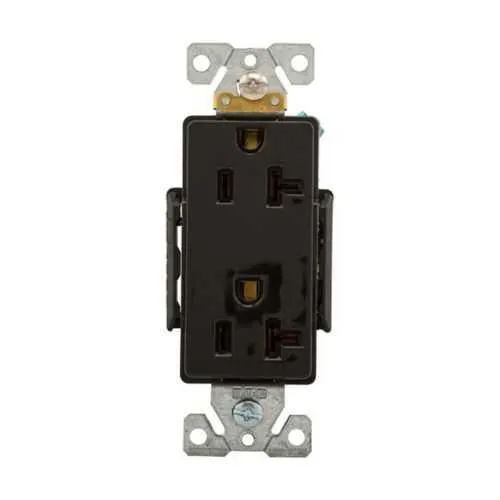

Eaton EZ6362SCBK EZLink modular decorator receptacle - cULus
Part Number: EZ6362SCBK
Quick Summary
The EZLink modular decorator receptacle delivers reliable, plug-and-play outlet customization for commercial and industrial enclosures. Engineers often struggle with space constraints and configuration mismatches when retrofitting existing panels, leading to costly rewiring and downtime. This device is cULus listed and complies with NOM and Federal Specification W-C-596G, ensuring broad safety and compatibility across markets. With a 20 A, 125 VAC rating and a compact footprint, it enables fast, modular installations in tight spaces while maintaining code compliance. By leveraging Eaton's EZLink family, manufacturers can standardize receptacle geometry, simplify procurement, and reduce field adjustments, delivering consistent performance across multiple lineups and projects.
Product Information
Extended Description
EZ6362SCBK Eaton: Eaton EZLink modular decorator receptacle, 20 A, 125 Vac, 60 Hz, split control, NEMA 5-20R, three-wire, black
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZ6362SCBK
UPC
032664009761
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Black
20A, 125 VAC NEMA 5-20R three-wire configuration aligns with standard branch circuits, enabling immediate compatibility with existing power feeds and reducing wiring complexity. This minimizes installation time and lowers labor costs, while ensuring reliable power delivery for machine control panels and commercial enclosures. The compact footprint (1.91 in depth, 1.75 in width, 4.4 in height) and light 0.2 lb weight save valuable panel space, simplify mounting, and reduce enclosure footprint requirements in space-constrained installations. Split control capability in the EZLink modular family enhances configurability, allowing rapid reconfiguration across different layouts without replacing hardware. The durable black housing supports harsh industrial environments, and the cULus/NOM/Federal spec certifications provide confidence in compliance and interoperability across jurisdictions. When used with Eaton EZLink devices, procurement is streamlined with standardized geometry, reducing SKU proliferation and inventory costs. Industrial installers gain faster commissioning, lower risk of incorrect wiring, and more predictable maintenance cycles.
Get a Quick Quote for a Eaton EZ6362SCBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ6362SCBK?
Enquire Now
FAQs
Install the EZ6362SCBK into a compatible enclosure using standard mounting accessories, then connect three wires per the device wiring diagram for a NEMA 5-20R configuration. Ensure a 20A, 125 VAC supply is used and follow local code requirements. The unit’s compact depth (1.91 in) and width (1.75 in) support installation in tight spaces while maintaining safe clearances.
The EZ6362SCBK is cULus Listed and also references NOM and Federal Specification W-C-596G, which collectively indicate compliance with recognized safety, performance, and material standards. These certifications help ensure interchangeability with mainstream receptacles, reduce regulatory risk in multinational projects, and support audit-ready documentation for quality systems.
Yes, the EZ6362SCBK is part of Eaton’s EZLink modular ecosystem, enabling standardized mating interfaces across modules. Space is saved through its compact dimensions—1.91 in depth, 1.75 in width, and 4.4 in height—facilitating easier installation in crowded control panels and instrument enclosures while preserving 20A, 125 VAC capabilities.
ROI improves through reduced SKU proliferation, simplified procurement, quicker field replacements, and lower commissioning time. Standardizing on EZLink devices minimizes stocking complexity, speeds up maintenance, and lowers downtime risk in manufacturing lines and facilities with frequent enclosure reconfigurations.
Best suited for machine control panels, commercial enclosures, and instrumentation housings where space is at a premium and reliable 20A, 125 VAC power is required. The black, durable enclosure and certified performance make it ideal for environments demanding quick swaps, modular configurations, and consistent electrical performance.
