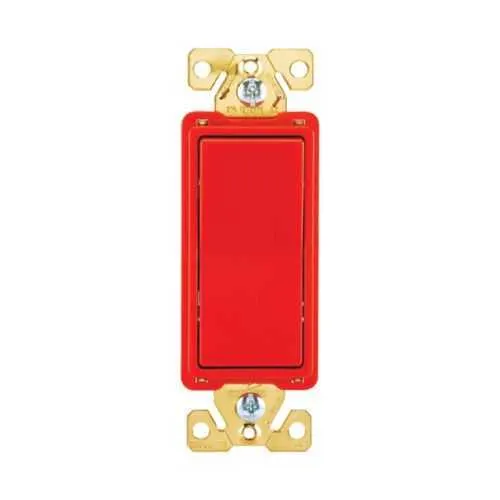

Eaton EZ7623RD Decorator Switch - UL Listed, RoHS Compliant
Part Number: EZ7623RD
Quick Summary
The Eaton EZ7623RD Decorator Switch is a modular decorator switch designed for 20 A circuits in 120-277 VAC three-pole systems. Engineers often struggle with space, wiring complexity, and retrofit timelines when upgrading control entries. UL Listed and cULus Listed certifications, together with RoHS compliance, help meet safety and environmental requirements. Beyond compliance, its modular design enables faster installation and reliable panel density for predictable ROI. Minimal footprint and compatibility with EZLink modular devices reduce wiring time, simplify stocking, and support scalable upgrades across manufacturing lines, data centers, and utility panel assemblies, delivering measurable improvements in installation speed, maintenance predictability, and total cost of ownership.
Product Information
Extended Description
EZ7623RD Eaton: Eaton EZLink modular decorator switch, 20 A, 120-277 Vac, 60 Hz, three-pole, four-wire, red
Product Name
Eaton EZLink modular decorator switch
Catalog Number
EZ7623RD
UPC
032664010095
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.24 lb
Compliances
RoHS Compliant
Certifications
UL Listed cULus Listed
Special features
MODULAR
Type
DECORATOR SWITCH
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Phase
Three-phase
Color
Red
Featuring a 20 A amperage rating at 120–277 Vac across a three-pole, four-wire configuration, the EZ7623RD supports three-phase control circuits in industrial panels. This alignment minimizes device count in each control leg and shortens wiring harnesses, translating into faster installations and fewer fault points in the field. Operators benefit from consistent performance across 60 Hz systems, ensuring reliable actuation in demanding environments. With a MODULAR feature designation, the device integrates smoothly with Eaton’s EZLink modular devices, enabling rapid swaps, scalable panel upgrades, and simplified spare-parts strategy—reducing downtime during retrofits and routine maintenance. The compact footprint—1.91 in depth, 1.75 in width, 4.4 in height—and light 0.24 lb weight improve panel density and ease handling, while mounting and alignment stay straightforward to reduce assembly time and miswiring risk. UL Listed and cULus Listed certifications, together with RoHS compliance, support regulatory approvals and safer disposal practices, speeding up customer audits and ensuring hazardous-substance restrictions are met. The red color coding and decorator-switch form factor deliver immediate operator cues, lowering misoperation risk on busy panels, and compatibility with modular architectures helps maintain uptime across manufacturing lines and data centers.
Get a Quick Quote for a Eaton EZ7623RD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ7623RD?
Enquire Now
FAQs
When planning installation, consider the device’s 20 A rating at 120–277 Vac and its three-pole, four-wire configuration to ensure compatibility with your control circuits. The small 1.91 in depth and 1.75 in width enable closer panel spacing, while the red decorator face improves visibility for operators. Ensure mounting tolerances meet standard electrical enclosure practices and verify UL/cULus listings during audits.
Yes. The EZ7623RD is designed around the MODULAR EZLink philosophy, allowing seamless integration with other modular devices in Eaton’s lineup. This compatibility supports incremental upgrades, simplified spares management, and reduced wiring complexity during panel retrofits, helping you scale control systems without reworking the entire interface or harness layout.
The EZ7623RD carries UL Listed and cULus Listed certifications, combined with RoHS compliance. These credentials validate safety and performance for industrial environments, streamline customer audits, and ensure materials meet hazardous-substance restrictions. In practice, this means faster approvals, safer disposal practices, and reduced regulatory risk for end-user facilities.
The 20 A rating at 120-277 Vac supports a broad range of control loads, including lighting and motor-control circuits common in panel assemblies. The three-pole, four-wire configuration ensures proper phase balancing in three-phase systems, enabling reliable actuation across diverse equipment. This rating supports flexible deployment across varying power architectures while maintaining safe, dependable operation.
Modular design reduces downtime by simplifying retrofits and future upgrades, cutting spare-parts inventory needs, and accelerating replacements. The compact footprint frees panel space, enabling denser layouts and easier wiring. These factors collectively lower total cost of ownership, shorten commissioning timelines, and improve uptime—critical metrics in manufacturing and process environments seeking predictable maintenance schedules.
