Eaton EZ8262W Receptacle - cULus Listed 15A/125V
Part Number: EZ8262W
Quick Summary
EZLink modular decorator HG receptacle is a compact, three-wire 15A connection point designed for Eaton EZLink installations in control panels and equipment enclosures. The goal is to minimize miswiring and field errors by providing a consistent, standards-based interface. This receptacle carries critical regulatory support to help meet code compliance in demanding environments. Certifications such as Federal Specification W-C-596G, cULus Listed, and NOM add confidence for uptime and safety across manufacturing, data centers, and process facilities. By aligning with EZLink modular devices, you gain streamlined procurement, faster installation, and scalable integration with existing modular components, reducing long-term maintenance costs and inventory complexity for industrial projects.
Product Information
Extended Description

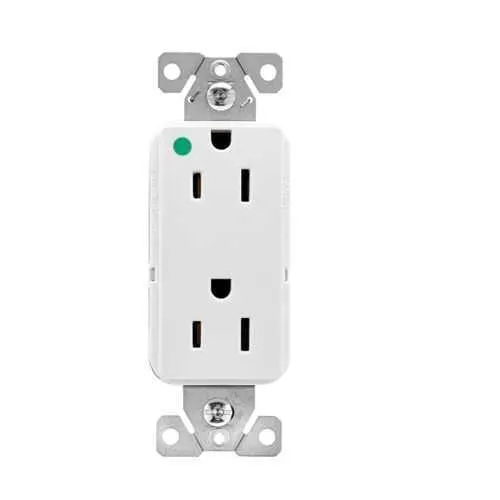

EZ8262W Eaton: Eaton EZLink modular decorator HG receptacle, 15 A, 125 Vac, 60 Hz, white, three-wire
Product Name
Eaton EZLink modular decorator HG receptacle
Catalog Number
EZ8262W
UPC
032664015359
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature → Business Impact → Application: The EZ8262W offers a 15A, 125V rating in a three-wire configuration, which ensures robust power delivery for standard industrial loads while meeting common electrical codes and reducing nuisance tripping. This translates to improved equipment reliability and smoother startup sequences in control panels and enclosure interiors. Application: ideal for modular device ecosystems in factory automation, machine wiring, and panel assemblies that require a reliable, easily identifiable receptacle for quick upgrades or reconfigurations. Feature → Business Impact → Application: Modular decorator HG design supports fast field-assembly and future expansions, minimizing rewiring during redesigns and enabling scalable enclosure updates. Application: suitable for retrofit projects and new builds where plug-and-play modularity accelerates commissioning. Feature → Business Impact → Application: Federal Spec W-C-596G, cULus Listed, and NOM certifications provide regulatory assurance and audit readiness, reducing compliance risk and insurance considerations. Application: critical in regulated sectors like food & beverage, pharma, and automotive manufacturing. Feature → Business Impact → Application: Compact form factor and white finish simplify enclosure planning and visibility, enabling easier wiring layout planning and reduced enclosure footprint. Application: effective in tight control panels and crowded electrical bays. Feature → Business Impact → Application: Compatibility with EZLink modular devices ensures seamless inventory management, consistent terminations, and reduced training burden for maintenance staff. Application: supports deployment of scalable, serviceable electrical architectures in plant floors and data-complete environments.
Get a Quick Quote for a Eaton EZ8262W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ8262W?
Enquire Now
FAQs
EZ8262W is designed for use within Eaton's EZLink modular decorator HG ecosystem, providing a 15A, 125V three-wire receptacle that aligns with standard modular device mounting and wiring practices. Its catalog number EZ8262W and dimensions support straightforward fitment in compatible panels and enclosures, reducing field rework and setup time.
EZ8262W is rated for 15A at 125 VAC with three wires. It uses a standard three-wire configuration and is intended for use in typical lighting and power-minimal loads within industrial panels. Verify compatibility with your enclosure, wire gauge, and breaker protection to ensure safe, code-compliant operation.
Yes. EZ8262W carries Federal Specification W-C-596G along with cULus Listed and NOM certifications. This combination supports regulatory compliance, safer operation, and easier audits in sectors like manufacturing, data centers, and process industries.
The modular decorator HG receptacle simplifies installs and future expansions, reducing downtime during panel updates and reconfigurations. Its standardized specs and compatibility minimize technician training needs and spare-part inventory, delivering lower maintenance costs and faster ROI during plant modernization or expansion projects.
Power down the system, confirm enclosure integrity, and mount EZ8262W in a compliant box or panel opening. Connect the three wires to the appropriate terminals, secure to prevent movement, and perform a continuity and insulation test. Ensure wiring routes avoid sharp bends and heat sources to maintain long-term reliability.
