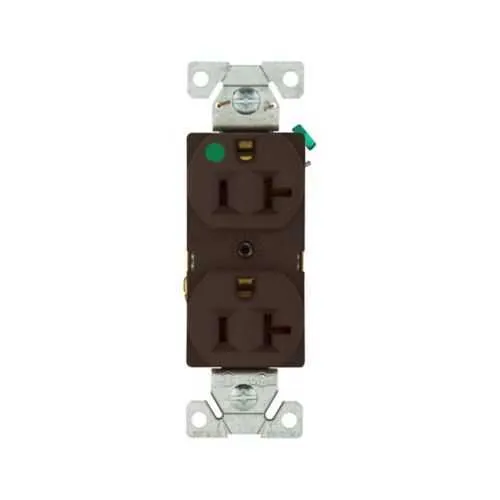

Eaton EZ8300B Receptacle - Modular HG, cULus Listed
Part Number: EZ8300B
Quick Summary
The Eaton EZLink modular duplex HG receptacle provides reliable 20 A, 125 Vac power for panel upgrades in industrial settings. Customers often confront compatibility gaps and difficult installations when retrofitting outlets in tight electrical spaces. With Federal Specification W-C-596G and cULus listing, plus NOM certification, EZ8300B ensures regulatory compliance and safety. Its modular design supports scalable installation, while the brown color and compact footprint simplify mounting in control panels, substations, and enclosures for retrofit projects and ongoing maintenance. This combination delivers faster installations, reduced commissioning time, and consistent performance across Eaton EZLink modules, minimizing downtime. In practice, engineers experience smoother panel upgrades and more reliable connections.
Product Information
Extended Description
EZ8300B Eaton: Eaton EZLink modular duplex HG receptacle, 20 A, 125 Vac, 60 Hz, brown, three-wire
Product Name
Eaton EZLink modular duplex HG receptacle
Catalog Number
EZ8300B
UPC
032664015366
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature: 20A, 125 Vac rating with a 3-wire configuration. Business Impact: Delivers standard-compliant power to typical industrial loads while maintaining wiring simplicity and safety. Application: Control panels and branch circuits in manufacturing facilities benefit from straightforward wiring and reliable performance. Feature: Regulatory compliance with Federal Specification W-C-596G and cULus listing. Business Impact: Reduces risk of nonconforming installations and streamlines procurement with traceable certifications. Application: Environments requiring formal safety and federal compliance documentation. Feature: Modular EZLink design for scalable integration. Business Impact: Supports future expansion and easier retrofits without changing panel footprints. Application: Evolving automation architectures and modular distribution schemes. Feature: Brown, compact receptacle footprint. Business Impact: Improves panel aesthetics and saves enclosure space, enabling denser layouts. Application: Enclosures and junction boxes with limited mounting room. Feature: Compatibility with EZLink modular devices. Business Impact: Accelerates installation and simplifies maintenance with standardized components. Application: System upgrades and maintenance programs across Eaton device families.
Get a Quick Quote for a Eaton EZ8300B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ8300B?
Enquire Now
FAQs
The EZ8300B is a 20A, 125Vac, 3-wire receptacle designed for seamless integration with Eaton EZLink modular devices. Verify panel space, connect the three wires with standard conductors, and secure the unit in a compatible enclosure. Ensure mounting aligns with existing EZLink footprints to minimize modification work and maintain a clean, safe wiring scheme.
Key specs include a 20 A amperage rating, 125 Vac voltage rating, and a 3-wire configuration. The receptacle features a brown color coding and is listed under Federal Specification W-C-596G with cULus recognition. UPC 032664015366 complements the product data for inventory and compliance tracking.
Yes, EZ8300B is designed for industrial control panels requiring reliable 20 A, 125 Vac power. Its cULus listing and W-C-596G compliance support safety and regulatory requirements in commercial settings. However, for harsh or outdoor environments, verify enclosure ratings and consider additional protection or seals if not specified in the documentation.
EZ8300B holds cULus listing and Federal Specification W-C-596G classification, along with NOM certification. These certifications provide regulatory compliance, safety assurance, and traceability for U.S. and North American electrical installations.
Using EZLink modular receptacles reduces downtime through faster installs and easier future upgrades. The modular approach simplifies replacements, improves consistency across installations, and lowers lifecycle maintenance costs by allowing standardized components to be swapped or expanded without large panel changes.
