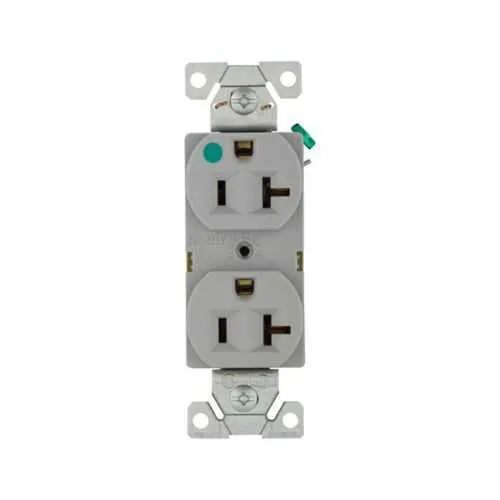

Eaton EZ8300GY EZLink modular duplex HG receptacle - cULus Listed
Part Number: EZ8300GY
Quick Summary
EZLink modular duplex HG receptacle is designed to deliver reliable 20A, 125V connections for control panels and electrical enclosures. Engineers often struggle with tight spaces, inconsistent wiring, and slow installation—this modular receptacle helps streamline assemblies and improve reliability. It carries Federal Specification W-C-596G, cULus Listed, and NOM certifications, supporting compliance across North American facilities. By aligning with Eaton EZLink modular devices, you gain scalability, reduced wiring complexity, and lower maintenance costs while delivering consistent performance in industrial environments.
Product Information
Extended Description
EZ8300GY Eaton: Eaton EZLink modular duplex HG receptacle, 20 A, 125 Vac, 60 Hz, gray, three-wire
Product Name
Eaton EZLink modular duplex HG receptacle
Catalog Number
EZ8300GY
UPC
032664015380
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Gray
Feature: Compact, modular design reduces panel footprint and simplifies field wiring. Business Impact: Improves installation speed and frees space for other components, enabling faster commissioning in automation cabinets. Application: Ideal for control panels and electrical enclosures requiring modular receptacles with straightforward replacement. Feature: 20A, 125V, three-wire configuration ensures safe and robust power distribution. Business Impact: Delivers reliable power delivery for automation gear, reducing nuisance trips and wiring errors. Application: Suitable for industrial machines and conveyors where consistent receptacle performance matters. Feature: Gray epoxy/nylon construction with standard color coding aligns with wiring standards and color-coding practices. Business Impact: Enhances safety compliance and reduces miswiring risk during maintenance. Application: Used in panel assemblies across manufacturing lines needing clear, durable interfaces. Feature: Certifications including Federal Specification W-C-596G, cULus Listed, NOM provide regulatory assurance. Business Impact: Supports compliance audits and reduces certification costs for projects. Application: Required in commercial and industrial electrical installations demanding documented approvals. Feature: Compatible with EZLink modular devices for scalable, fault-tolerant wiring strategies. Business Impact: Enables modular upgrades and easier spare-part management, shrinking downtime. Application: Design of future-proof control systems in factories and distribution centers.
Get a Quick Quote for a Eaton EZ8300GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ8300GY?
Enquire Now
FAQs
EZ8300GY is designed for three-wire, 125V, 20A applications and fits common modular wiring schemes used in Eaton EZLink deployments. It integrates with standard receptacle layouts in control panels, allowing straightforward mounting, wiring, and future replacement without rework. The gray receptacle aligns with typical color-coding practices to minimize wiring errors during installation.
The EZ8300GY offers a 20A amperage rating and 125V operating voltage at 60 Hz, with a three-wire configuration. Its compact form-factor supports discrete mounting in crowded panels, while its certification set (W-C-596G, cULus Listed, NOM) provides compliance assurance for industrial and commercial environments.
Yes. Its modular EZLink design, three-wire configuration, and robust certs make it appropriate for control panels, automation racks, and machine wiring. The compact footprint and compatibility with modular devices support scalable panel architectures while maintaining compliance with regulatory standards.
This receptacle carries Federal Specification W-C-596G, cULus Listed, and NOM certifications. These approvals help satisfy documentation requirements for U.S. and Canadian markets and streamline audit readiness for electrical installations.
The modular design reduces installation time and simplifies future upgrades or replacements. With three-wire 125V operation and standard connections, field maintenance is quicker, downtime is minimized, and spare parts are easier to source within the EZLink ecosystem, delivering tangible lifecycle savings.
