Eaton EZ8300V EZLink Duplex HG Receptacle - W-C-596G
Part Number: EZ8300V
Quick Summary
The Eaton EZLink Duplex HG receptacle delivers reliable 20A, 125Vac power for control panels and industrial enclosures. In many projects, mismatched modular devices create wiring confusion and downtime during maintenance. It carries Federal Specification W-C-596G, cULus Listed, and NOM, supporting regulatory compliance across critical markets. This modular solution simplifies stocking and installation, delivering predictable performance in industrial electrical components and automation assemblies for better on-time deployment and reduced lifecycle costs.
Product Information
Extended Description

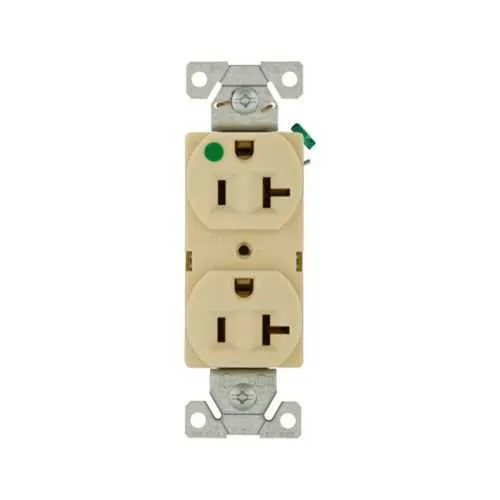

EZ8300V Eaton: Eaton EZLink modular duplex HG receptacle, 20 A, 125 Vac, 60 Hz, ivory, three-wire
Product Name
Eaton EZLink modular duplex HG receptacle
Catalog Number
EZ8300V
UPC
032664015489
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
The EZ8300V is a 20A 125Vac modular duplex HG receptacle designed to integrate with Eaton EZLink modular devices, delivering a consistent power source for control systems and automation panels. The business impact is straightforward: reliable power delivery reduces unplanned downtime and supports faster panel commissioning in manufacturing environments. Its three wire configuration ensures proper grounding and safety, while the ivory color maintains visibility and compatibility with standard electrical installations. The federal and UL listings provide regulatory assurance, minimizing risk during audits and field inspections. The compact footprint and standardized dimensions support tight panel layouts and easier retrofits, lowering installation time and labor costs. Compatibility with existing EZLink ecosystems leads to streamlined spare-part inventories and improved maintenance planning for industrial facilities. Industry professionals will appreciate the predictable performance and reduced interconnect variability that this receptacle delivers in electrical distribution networks.
