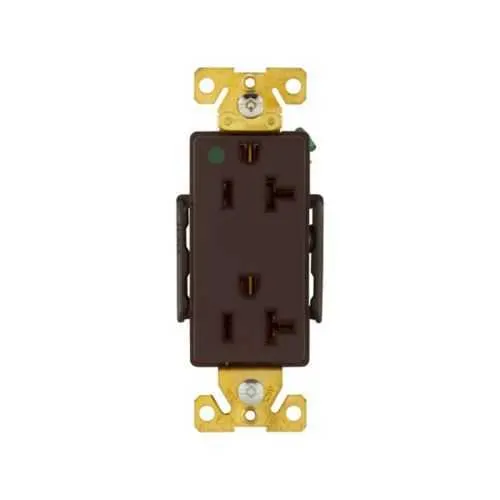

Eaton EZ8362B EZLink receptacle - cULus Listed
Part Number: EZ8362B
Quick Summary
Eaton EZ8362B provides a modular decorator HG receptacle for reliable wiring in electrical enclosures. Many engineers struggle with compact integration and ensuring reliable 20 A connections in busy panels. It carries Federal Specification W-C-596G, cULus listing, and NOM certifications to support compliance in North American installations. Designed for compatibility within the EZLink modular devices ecosystem, it helps reduce wiring errors and commissioning time. With a brown, three-wire, 125 VAC configuration, it delivers dependable performance and scalable cost savings across industrial facilities. Its compact footprint and standard UPC support rapid procurement for maintenance teams and OEMs.
Product Information
Extended Description
EZ8362B Eaton: Eaton EZLink modular decorator HG receptacle, 20 A, 125 Vac, 60 Hz, brown, three-wire
Product Name
Eaton EZLink modular decorator HG receptacle
Catalog Number
EZ8362B
UPC
032664015502
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
20A, 125 VAC operation is designed for common North American power systems, allowing direct integration with standard receptacle circuits. This reduces the need for adapters and minimizes fault risk during installation. Compliance with Federal Specification W-C-596G, cULus Listed, and NOM helps you meet contract and regulatory requirements. The combination of these certifications supports safe operation in industrial environments and simplifies audits. As part of Eaton's EZLink modular devices, EZ8362B plugs into a decorator HG profile, enabling fast replacement and consistent documentation. This modular approach improves fleet maintenance by standardizing interface points across machines. With a brown finish and three-wire configuration, the receptacle clearly identifies circuit origin and improves wiring discipline. The listed dimensions show a very slim depth and width, contributing to dense panel layouts and reduced panel volume. UPC 032664015502 ensures straightforward sourcing, and the brown color supports code-friendly aesthetics in enclosures. The product's ultra-compact package complements lean installation practices and minimizes space on crowded control panels.
Get a Quick Quote for a Eaton EZ8362B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ8362B?
Enquire Now
FAQs
The EZ8362B is designed for use within Eaton's EZLink modular devices and fits standard 20A, 125 VAC circuits. When installing, verify three-wire connections, proper insulation, and secure mounting within electrical enclosures. Ensure compatibility with nearby EZLink modules to maintain consistent documentation and wiring discipline across the panel.
Yes. The EZ8362B carries cULus Listing and NOM certification, along with Federal Specification W-C-596G. This combination supports compliance for North American installations and simplifies regulatory audits, especially in industrial facilities and OEM panel builds.
Ideal for electrical enclosures, control panels, and machine wiring in North American facilities, the EZ8362B supports modular, plug-and-play wiring interfaces. Its 20A, 125 VAC, three-wire configuration makes it suitable for standard distribution points within industrial automation and equipment integrator projects.
The EZ8362B is rated for 20A at 125 VAC with three wires. This configuration aligns with common North American power distribution practices and ensures reliable, code-compliant connections in panel assemblies and decorator receptacle layouts.
You can refer to the EZ Link modular devices brochure from Eaton for deeper technical details, installation guidance, and system-wide compatibility notes. This resource supports engineers and procurement teams in planning modular wiring architectures and ensuring consistent part selections.
