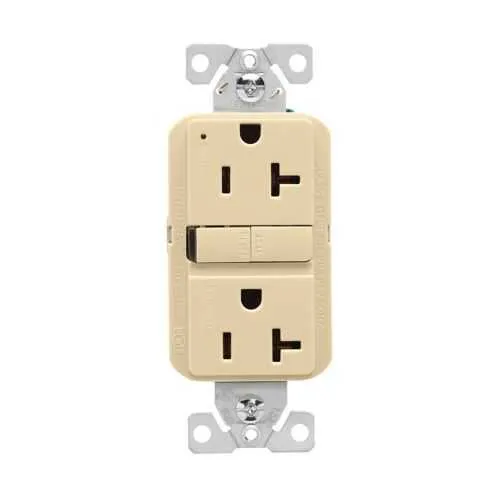

Eaton EZGF20V GFCI - Modular Device cULus Listed
Part Number: EZGF20V
Quick Summary
Eaton EZGF20V GFCI provides safe, ground-fault protection for industrial control panels and outlets. It addresses the common challenge of quickly integrating modular devices while maintaining code compliance across North American facilities. The unit carries cULus Listed, Federal Specification W-C-596G, and NOM certifications, delivering predictable performance under NEC and CSA guidelines. With a 20 A, 125 Vac rating in a three-wire configuration and ivory finish, this modular GFCI fits compact control enclosures without compromising safety. Using this device reduces installation time, simplifies spare-part management, and improves reliability in modular panel builds, supporting efficient maintenance cycles and predictable downstream ROI for automation projects.
Product Information
Extended Description
EZGF20V Eaton: Eaton EZLink modular GFCI, 20 A, 125 Vac, 60 Hz, ivory, three-wire
Product Name
Eaton EZLink modular GFCI
Catalog Number
EZGF20V
UPC
032664023248
Product Length/Depth
0.01 in
Product Height
0.01 in
Product Width
0.01 in
Product Weight
0.01 lb
Certifications
Federal Specification Classification W-C-596G cULus Listed NOM
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature: 20A, 125 Vac three-wire operation enables reliable protection for standard industrial circuits. Business Impact: Reduces risk of ground faults while enabling consistent protective coordination across panels. Application: Control panels, power-outlet modules in automation cabinets. Feature: EZLink modular design enables plug-and-play integration with other modular devices. Business Impact: Speeds up commissioning, lowers field labor costs, and minimizes downtime during panel upgrades. Application: Modular distribution boards and enclosure interiors. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Simplifies audits, ensures code compliance, and eases cross-border deployments. Application: Industrial facilities subject to NEC/CSA/NOM requirements. Feature: Ivory color and standard dimensions support quick faceplate matching and neat panel aesthetics. Business Impact: Improves visibility and reduces errors during installation and maintenance. Application: Enclosures and control cabinets with standardized color-coding. Feature: 3-wire configuration with robust grounding capability enhances safety in mixed-use environments. Business Impact: Improves personnel protection and equipment longevity, lowering maintenance risks. Application: 120/240V industrial circuits in machinery and robotics systems. Feature: Compatibility with Eaton EZLink family enables scalable system design. Business Impact: Streamlines spare-part management and future-proofing. Application: Modular electrical networks in production lines and industrial controls.
Get a Quick Quote for a Eaton EZGF20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZGF20V?
Enquire Now
FAQs
Install the EZGF20V GFCI in the compatible EZLink modular framework by aligning the device with the adjacent modular components, securing mounting hardware, and wiring per the 3-wire configuration. Ensure the line and load terminals are correctly connected to maintain proper protection and minimize nuisance trips. Always verify enclosure clearance and dust protection during integration.
The EZGF20V GFCI is rated for 20A at 125V AC with a 60 Hz supply, designed for 3-wire networks. These specs ensure reliable ground-fault protection for standard industrial circuits and compatibility with typical control panel voltages. Performance benefits include rapid fault detection, improved safety for personnel, and reduced risk of equipment damage due to leakage currents.
Yes. The EZGF20V GFCI is specified for a three-wire configuration at 125 Vac, which aligns with common control-panel wiring schemes. This configuration helps ensure proper grounding and fault interruption, meeting safety standards while maintaining straightforward integration with existing three-wire circuits.
EZGF20V carries cULus Listed, NOM, and Federal Specification W-C-596G certifications. These approvals support compliance with North American electrical codes, facilitate cross-border deployments, and streamline regulatory audits. They provide assurance that the device meets established safety and performance criteria for modular GFCI protection.
ROI factors include faster installation due to modular EZLink compatibility, reduced spare-parts inventory, and fewer field service interventions from reliable ground-fault protection. The device’s certifications also simplify compliance costs and potential downtime, contributing to lower total cost of ownership over the equipment lifecycle.
