Eaton EZRCSTR EZLink modular receptacle connector - cULus Listed
Part Number: EZRCSTR
Quick Summary
EZLink modular receptacle connector from Eaton is a compact, reliable power interface for 20A, 125V AC in industrial equipment. Designers often struggle with tight spaces and regulatory compliance when wiring modular devices, risking miswiring and downtime. This unit is cULus Listed and NOM certified, with Federal Specification W-C-596G, helping you pass audits and meet North American standards. Blue, three-wire, stranded configurations reduce wiring errors and support fast field terminations, delivering measurable business value through safer installations and reduced rework. Its modular form supports scalable deployments across panels and equipment, enabling cost-effective upgrades. This approach minimizes panel footprint while maximizing flexibility for future expansions. Whether integrating sensors, drives, or safety devices, EZLink simplifies procurement and maintenance cycles.
Product Information
Extended Description

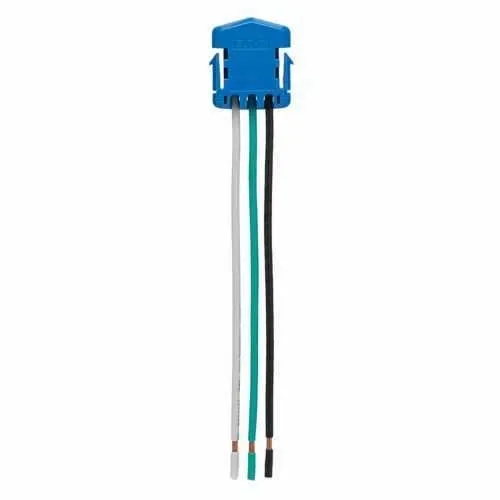

EZRCSTR Eaton: Eaton EZLink modular receptacle connector, 20 A, 125 Vac, 60 Hz, stranded, three-wire, blue
Product Name
Eaton EZLink modular receptacle connector
Catalog Number
EZRCSTR
UPC
032664010132
Product Length/Depth
0.528 in
Product Height
7.48 in
Product Width
1.028 in
Product Weight
0.065 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Frequency
60 Hz
Number of wires
3
Color
Blue
Feature → 20A at 125 VAC with a three-wire, stranded conductor design enables robust power delivery and flexible termination. Business impact → reliable control panel wiring, reduced risk of hot-neutral misconnection, and support for modular expansion. Application → ideal for Eaton EZLink systems in factory automation and machine wiring projects. Feature → Compact depth of 0.528 in, width 1.028 in, height 7.48 in enables dense panel layouts and easy retrofits. Business impact → improved enclosure density, faster installation, simpler inspection. Application → panel-mounted receptacles in control cabinets. Feature → Regulatory compliance with cULus Listed, NOM, and W-C-596G reduces compliance risk. Application → North American manufacturing and equipment wiring. Feature → Blue color coding and three-wire configuration for enhanced safety. Business impact → quicker terminations and reduced training time. Application → new builds and retrofits in industrial environments.
