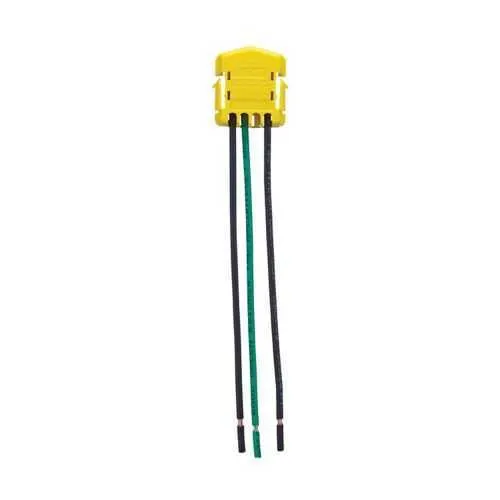

Eaton EZSPSWSOL EZLink modular switch connector - cULus Listed
Part Number: EZSPSWSOL
Quick Summary
The Eaton EZLink modular switch connector is a reliable 20 A, 125 V AC switch for control circuits. Engineers often struggle to fit rugged switching hardware into compact control panels without sacrificing safety or diagnostic visibility. This device is cULus Listed and NOM certified, with Federal Specification W-C-596G compliance, ensuring regulatory alignment and traceability. Its modular form factor and bright yellow color improve visibility, while solid-conductor wiring and three-wire configuration support reliable operation in busy automation lines. Paired with Eaton's modular devices ecosystem, it accelerates panel wiring, reduces maintenance downtime, and supports scalable control-system designs.
Product Information
Extended Description
EZSPSWSOL Eaton: Eaton EZLink modular switch connector, 20 A, 125 Vac, 60 Hz, single-pole, solid, three-wire, yellow
Product Name
Eaton EZLink modular switch connector
Catalog Number
EZSPSWSOL
UPC
032664010149
Product Length/Depth
0.528 in
Product Height
7.48 in
Product Width
1.028 in
Product Weight
0.065 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Frequency
60 Hz
Number of poles
Single-pole
Number of wires
3
Color
Yellow
Feature: Electrical rating and construction - This switch connector handles 20A at 125 VAC with a 60 Hz supply, enabling standard control-circuit operation in industrial panels. Business impact: predictable signaling and safer isolation reduce field-service calls and warranty costs. Application: ideal for machine builders and panel shops needing reliable single-pole control in modular devices environments. Feature: Three-wire, solid-conductor design - Improves contact stability and fault-detection capability, delivering consistent performance where wiring density matters. Business impact: fewer nuisance trips and longer service life in harsh environments. Application: operation in control cabinets and distributed automation nodes. Feature: Compact dimensions and visibility - The 0.528 in depth, 7.48 in height, and 1.028 in width create a compact footprint with strong panel presence. Business impact: enables denser control panels and easier field troubleshooting. Application: suitable for panel installations where space and quick identification matter. Feature: Color-coding and compatibility - Yellow color aids wiring accuracy and quick inspection, while compatibility with EZLink modular devices simplifies installation. Business impact: reduces errors, speeds commissioning, and supports scalable automation architectures. Application: broader deployment across machine-build and systems integration projects.
Get a Quick Quote for a Eaton EZSPSWSOL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZSPSWSOL?
Enquire Now
FAQs
EZSPSWSOL is designed for Eaton EZLink modular devices and is compatible with standard modular switch assemblies. It fits into control panels that require a single-pole, three-wire, 20A 125V circuit and leverages the same mounting patterns used by Eaton modular devices for quick swapping and simplified panel rewiring.
It is rated at 20A, 125 VAC, 60 Hz, single-pole, three-wire. This ensures safe operation for typical control circuits in automated machinery and panel assemblies, with solid-conductor wiring that supports reliable contact integrity under normal mechanical stress.
Yes. The EZSPSWSOL is intended for industrial control panels and automation wiring where a compact, visible, and reliable switch is required. Its yellow color improves visibility, and its 20A rating covers most control-circuit loads encountered in machine control and process automation.
This connector carries cULus Listed and NOM certifications with Federal Specification W-C-596G, indicating compliance with recognized safety and performance requirements for electrical components used in commercial and industrial installations.
The modular EZLink switch connector simplifies installation and replacement, reducing downtime and training needs. Its solid-wire construction and standardized footprint minimize rework, enabling faster panel commissioning and predictable lifecycle costs in manufacturing environments.
