Eaton EZSPSWSTR EZLink modular switch connector - cULus
Part Number: EZSPSWSTR
Quick Summary
The Eaton EZLink modular switch connector is a 20A, 125 Vac, 60 Hz single-pole device designed for compact control panels and modular wiring. This solution tackles the common pain of crowded panel spaces and tangled conductors by delivering a slim, clearly defined switching point. It carries critical certifications including cULus Listed, NOM, and Federal Specification W-C-596G to support compliance in regulated environments. By aligning with Eaton EZLink devices, it offers plug‑in compatibility and standardized wiring paths that simplify procurement and reduce commissioning time. The distinctive yellow color aids quick identification in busy enclosures, improving maintenance efficiency and overall panel reliability.
Product Information
Extended Description

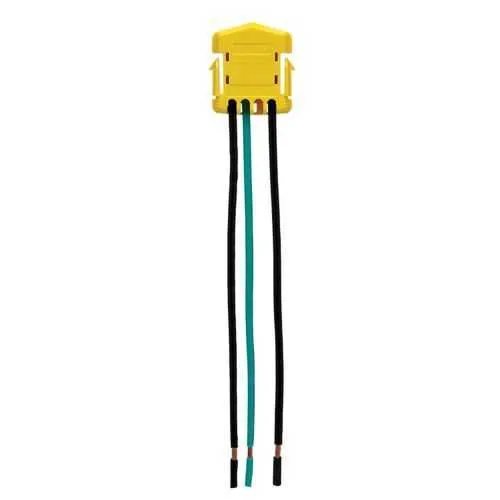

EZSPSWSTR Eaton: Eaton EZLink modular switch connector, 20 A, 125 Vac, 60 Hz, single-pole, stranded, three-wire, yellow
Product Name
Eaton EZLink modular switch connector
Catalog Number
EZSPSWSTR
UPC
032664010156
Product Length/Depth
0.528 in
Product Height
7.48 in
Product Width
1.028 in
Product Weight
0.065 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Frequency
60 Hz
Number of poles
Single-pole
Number of wires
3
Color
Yellow
Feature → Business Impact → Application: The EZSPSWSTR provides 20A switching at 125 Vac with 60 Hz operation, enabling reliable control of loads up to standard industrial ratings while minimizing thermal stress and electrical noise. This translates to improved control stability and longer device life in motor starters, relays, and other automation circuits in control panels. Application: suitable for standard machine control circuits where a single-pole, three-wire configuration is required in a compact space. Feature → Business Impact → Application: Its slim footprint—0.528 in depth with a width of 1.028 in and height of 7.48 in—maximizes enclosure density, allowing technicians to pack more functionality into tight panel layouts without sacrificing accessibility. Application: ideal for high-density electrical cabinets and modular device stacks in packaging lines and material handling systems. Feature → Business Impact → Application: Bright yellow color enhances visibility and labeling consistency, reducing maintenance mistakes during quick fault isolation and routine inspections. Application: beneficial in environments with multiple circuits and color-coded wiring schemes. Feature → Business Impact → Application: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G provide regulatory confidence and simplify sourcing for government and aerospace-like procurement processes. Application: procurement and compliance in regulated industries. Feature → Business Impact → Application: Lightweight design (0.065 lb) and Eaton compatibility support faster installation, fewer handling concerns on site, and easier retrofit projects. Application: retrofit and upgrade programs where panel downtime must be minimized. Feature → Business Impact → Application: The three-wire, single-pole configuration reduces wiring complexity and risk of miswiring, leading to faster commissioning and fewer field errors in new equipment builds. Application: new machine builds and panel refurbishments where reliable switching is required.
Get a Quick Quote for a Eaton EZSPSWSTR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZSPSWSTR?
Enquire Now
FAQs
EZSPSWSTR is a 20A 125 Vac single-pole, three-wire switch connector designed to work with Eaton EZLink modular devices. Its compact 0.528 in depth and 1.028 in width support dense panel layouts, while the 60 Hz rating matches common industrial control systems. For installation, mount in a standard enclosure, connect the three wires to the designated terminals, and ensure wiring color-coding reflects your control scheme. This setup reduces wiring complexity and speeds up commissioning.
The EZSPSWSTR is rated for 20A at 125 Vac with a frequency of 60 Hz, configured as a single-pole, three-wire modular switch connector. It features a yellow housing for visibility and carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, ensuring safety compliance and suitability for regulated procurement.
Yes. The EZSPSWSTR carries cULus Listed status, NOM, and Federal Specification Classification W-C-596G. These certifications confirm compliance with electrical safety standards and government procurement requirements, making it appropriate for regulated manufacturing, automation, and facility systems.
Benefits include a compact footprint that increases enclosure density, reduced wiring complexity for faster commissioning, and improved maintenance visibility due to the yellow color. When paired with EZLink modular devices, it supports standardized wiring practices and faster replacement or expansion of control panels, contributing to lower lifecycle costs and shorter project timelines.
Technical specifications and application guidance for the EZSPSWSTR are available in Eaton’s EZ Link modular devices brochure, linked in the product downloads section. This resource provides installation tips, compatibility notes, and more detailed electrical data to assist with design and procurement decisions.
