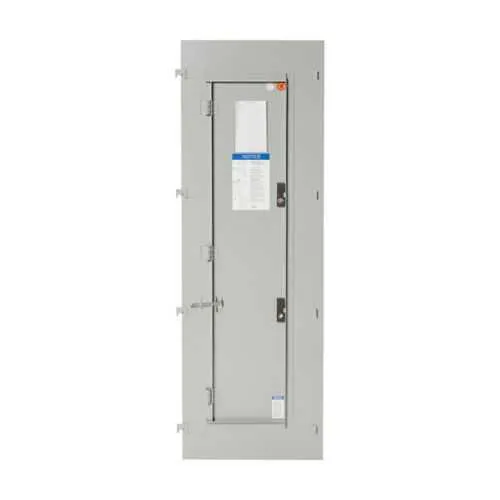

Eaton EZT2090F Pow-R-Xpress EZ trims Panel - UL 67
Part Number: EZT2090F
Quick Summary
Eaton Pow-R-Xpress EZ trims are flush, unvented trim assemblies engineered for 20 in wide panel enclosures used in industrial power distribution. Many projects struggle with time-consuming field trimming and mis-fit components that delay startup. UL 67 listing and NEMA 1 TRIM design help ensure safe, indoor enclosure performance for industrial applications. By delivering a precise, copper bus-based trim that installs quickly, these trims reduce onsite labor and maintenance costs while improving enclosure reliability. Applicable to control panels and electrical assemblies, they integrate with the Pow-R-Xpress family for scalable, dependable deployments.
Product Information
Extended Description
EZT2090F Eaton: Eaton Pow-R-Xpress EZ trim flush unvented for 20"W X 90"H box WEM2 Keyed
Product Name
Eaton Pow-R-Xpress EZ trims
Catalog Number
EZT2090F
UPC
786685355429
Product Length/Depth
78 in
Product Height
2.5 in
Product Width
20 in
Product Weight
81 lb
Certifications
UL 67
Bus material
Copper
Material
Copper
Type
NEMA 1 TRIM
Special features
Pow-R-Xpress
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - EZT2090F
Feature: 20 in width x 78 in length/depth, 2.5 in height; Business Impact: fits standard 20x78 panel footprints and maintains a compact profile for efficient space utilization; Application: ideal for 20 in panel enclosures in control rooms and machines. Feature: Copper bus material; Business Impact: delivers superior electrical conductivity and durability under high-load conditions; Application: reliable power distribution in machinery. Feature: NEMA 1 TRIM type; Business Impact: enhanced indoor dust and environmental protection with simplified installation; Application: indoor electrical cabinets in manufacturing environments. Feature: UL 67 certification; Business Impact: regulatory compliance and safer operation across industrial panels; Application: panel assemblies requiring formal safety listings. Feature: 81 lb weight; Business Impact: robust construction supports handling and panel integrity during installation; Application: retrofit and new-build panel projects with rigorous reliability targets. Feature: Compatibility with Pow-R-Xpress ecosystem; Business Impact: faster onboarding and standardized components across multiple projects; Application: scalable panel builds in automation and utilities. Insight: experienced installers value the combination of precise fit, copper conductors, and the proven Pow-R-Xpress workflow to shorten commissioning and reduce field errors.
Get a Quick Quote for a Eaton EZT2090F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZT2090F?
Enquire Now
FAQs
EZT2090F trims mount flush to the panel interior, aligning with the 20 inch width and 78 inch depth footprint. Ensure copper bus connections are seated fully and secure the trim using the factory-approved fasteners. Verify UL 67 compliance and NEMA 1 TRIM compatibility for indoor environments before commissioning.
Key specs include 78 in length/depth, 20 in width, 2.5 in height, 81 lb weight, copper bus material, and UL 67 certification. The part is designated as a NEMA 1 TRIM, suitable for indoor enclosures and compatible with the Pow-R-Xpress family for streamlined integration.
Yes. The 20x78 footprint paired with a copper bus and UL 67 listing makes EZT2090F ideal for industrial control panels and electrical assemblies. Its NEMA 1 trim type is designed for indoor environments, delivering reliable performance and simplified installation alongside Eaton’s Pow-R-Xpress ecosystem.
EZT2090F carries UL 67 certification and is designed as a NEMA 1 TRIM, aligning with indoor enclosure standards and safety requirements. This compliance supports safer operation, easier procurement, and smoother regulatory reviews for industrial panel projects.
The flush, unvented design and copper bus paths reduce installation time and field adjustments, lowering labor costs and commissioning time. The UL 67/NEMA 1 approach also minimizes compliance risk, contributing to longer panel life and lower total cost of ownership over retrofit and new-build projects.
