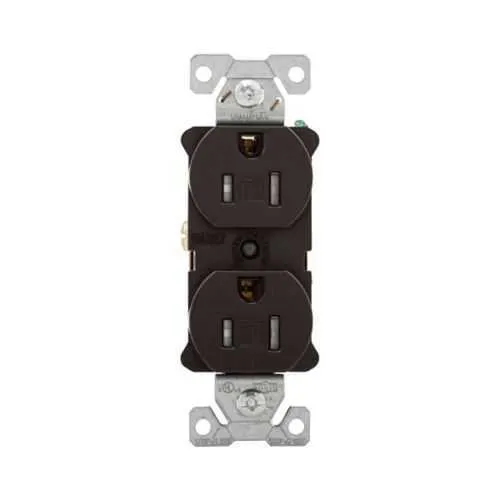

Eaton EZTR5262B EZLink duplex receptacle - cULus
Part Number: EZTR5262B
Quick Summary
The Eaton EZLink modular duplex receptacle provides quick, safe outlet connections in industrial enclosures. Installers often contend with crowded panels and wiring mistakes; this receptacle's compact footprint and tamper-resistant design help streamline routing and improve safety. It carries cULus listing along with NOM and Federal Specification Classification W-C-596G, reinforcing compliance in diverse applications. Designed for 15 A, 125 V circuits and NEMA 5-15R connections, it also supports scalable modular installations that reduce part variety and procurement complexity in control panels and equipment housings.
Product Information
Extended Description
EZTR5262B Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, NEMA 5-15R, three-wire, brown
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262B
UPC
032664010170
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Tamper-resistant, 15A, 125VAC NEMA 5-15R design enhances safety and code compliance, reducing the risk of accidental contact and speeding inspections. Business impact: fewer call-outs for non-compliant outlets and lower warranty costs in harsh environments. Application: suitable for control panels and industrial enclosures where reliability and safety matter for daily operations.Compact footprint with dimensions of 1.91 in depth, 4.4 in height, and 1.75 in width optimizes panel space and simplifies routing. Business impact: higher density layouts and easier retrofits. Application: IT racks, electrical cabinets, and equipment enclosures that require efficient use of space without sacrificing access to power.Three-wire configuration delivers clear hot, neutral, and ground paths, minimizing miswiring during installation. Business impact: improved first-pass wiring accuracy and safer energization sequences. Application: safety-critical automation panels and instrumentation enclosures where precise grounding is essential.Brown color and modular EZLink design support consistent aesthetics and scalable expansion. Business impact: standardized parts reduce procurement complexity and stock levels. Application: large facilities with multiple panel lines and growing device counts.Certifications including cULus Listed, NOM, and Federal Specification W-C-596G provide regulatory confidence and traceability. Business impact: easier audits, documented compliance, and faster project sign-offs. Application: regulated environments such as laboratories, manufacturing floors, and commercial installations requiring formal approvals.
Get a Quick Quote for a Eaton EZTR5262B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262B?
Enquire Now
FAQs
EZTR5262B is designed for straightforward mounting in standard electrical boxes within industrial panels. It supports a NEMA 5-15R outlets and a three-wire configuration, with a compact 1.91 inch depth and 4.4 inch height that help maximize enclosure density. Ensure compatibility with the EZLink modular family and confirm cULus/NOM/W-C-596G compliance for your specific application.
Yes. EZTR5262B is part of the Eaton EZLink modular devices ecosystem, engineered for seamless integration with other EZLink components. This compatibility simplifies panel wiring, standardizes part numbers across projects, and supports scalable deployments as you add outlets in growing control panels or enclosures.
EZTR5262B is cULus listed, NOM approved, and classified under Federal Specification W-C-596G. These certifications indicate adherence to safety, wiring, and material standards recognized in North America, facilitating regulatory approvals, safer operation in industrial environments, and consistent quality across Eaton modular devices.
The modular EZLink design reduces part variety and inventory, cutting procurement costs and spindle-time during panel builds. Tamper-resistant construction lowers maintenance calls by reducing accidental contact, while standardization across devices speeds installation and repairs, delivering faster project turnover and improved long-term reliability in automation enclosures.
The official EZ Link modular devices brochure is available from Eaton’s product resources. Look for the EZ Link modular devices brochure PDF linked on the product page for EZTR5262B, which includes detailed electrical ratings, dimensional data, installation guidelines, and compliance notes for cULus, NOM, and W-C-596G.
