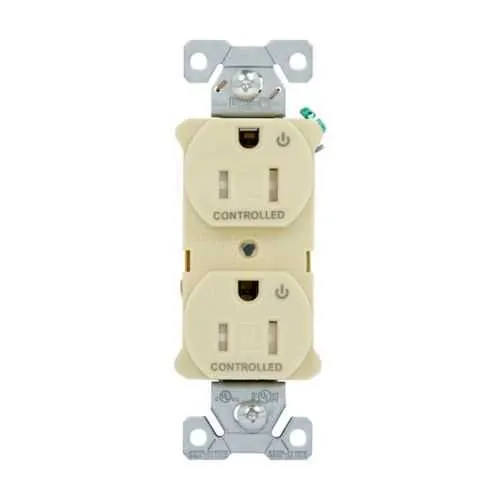

Eaton EZTR5262CDBK EZLink duplex receptacle - cULus
Part Number: EZTR5262CDBK
Quick Summary
EZTR5262CDBK is a modular EZLink duplex receptacle that provides reliable 15 A, 125 V power for offices, laboratories, and light-industrial spaces. For engineers and procurement teams, finding outlets that meet safety standards without adding footprint or installation complexity can delay projects. This device is cULus Listed with NOM and Federal Specification Classification W-C-596G, and it features tamper-resistant dual controlled outlets. Its compact footprint—1.91 in depth, 4.4 in height, and 1.75 in width—helps maximize panel and wall space while supporting quick commissioning. By standardizing on EZLink modules, teams can reduce stocking diversity, accelerate wiring, and improve overall reliability in distributed power applications.
Product Information
Extended Description
EZTR5262CDBK Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-15R, three-wire, black
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262CDBK
UPC
032664010200
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Black
Feature → EZLink modular design enables scalable outlet configurations with a consistent footprint. Business Impact → This reduces inventory complexity and speeds field changes. Application → Ideal for offices, labs, and light industrial spaces where quick reconfiguration is common. Feature → Tamper-resistant construction enhances safety and code compliance. Business Impact → Lower risk of accidental contact in shared spaces and reduced liability in public or semi-public areas. Application → Suitable for classrooms, medical facilities, and customer-facing workstations. Feature → NEMA 5-15R, three-wire outlets with 15 A at 125 V deliver reliable power to standard equipment. Business Impact → Improves uptime and protects sensitive devices through stable grounding and wiring. Application → Ideal for computer suites, testing benches, and point-of-use power distribution. Feature → cULus Listed, NOM, and Federal Specification W-C-596G certifications provide multi-jurisdictional acceptance. Business Impact → Simplifies compliance across regions and accelerates project approvals. Application → Critical for multinational facilities and regulated environments. Feature → Compact dimensions (1.91 in depth, 4.4 in height, 1.75 in width) optimize installation space. Business Impact → Frees wall and panel space for cabling and devices, reducing enclosure costs. Application → Beneficial in tight-wall applications, retrofit projects, and crowded equipment rooms.
Get a Quick Quote for a Eaton EZTR5262CDBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262CDBK?
Enquire Now
FAQs
The EZTR5262CDBK features a compact footprint with a 1.91 in depth, 4.4 in height, and 1.75 in width, and uses a standard NEMA 5-15R configuration rated at 15A and 125V. This makes it compatible with common wall boxes and three-wire circuits, enabling straightforward retrofits and new builds while maintaining safety with tamper-resistant construction.
Key specs are 15A amperage, 125V voltage, 3 wires, and a NEMA 5-15R outlet arrangement. Compliance marks include cULus Listed, NOM, and Federal Specification Classification W-C-596G, ensuring multi-jurisdictional acceptance for many commercial and industrial applications.
Yes. The tamper-resistant design provides enhanced safety in high-traffic areas, and the dual-controlled outlets support reliable power for critical office equipment. Its compact form and standard 15A/125V rating align with typical office power needs while meeting applicable safety codes.
Look for listings such as cULus, NOM, and applicable federal specifications like W-C-596G. The EZTR5262CDBK carries these marks, signaling broad regulatory acceptance and reducing compliance risk across regions for commercial, educational, and light-industrial facilities.
EZLink modular receptacles standardize components, simplifying stocking and replacements. The tamper-resistant, reliable NEMA 5-15R design reduces failure modes, supports quicker commissioning, and lowers total cost of ownership through easier field upgrades and consistent performance across multiple sites.
