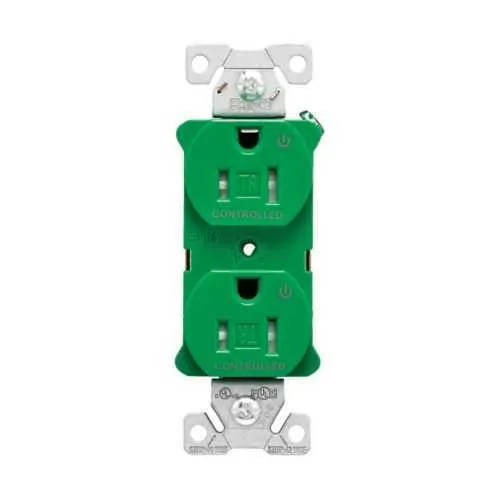

Eaton EZTR5262CDGN EZLink duplex receptacle - cULus Listed
Part Number: EZTR5262CDGN
Quick Summary
The Eaton EZLink modular duplex receptacle enables fast, safe wiring for 15A circuits in commercial and light industrial outlets. Installers often grapple with tamper-resistant requirements and the need for dependable, code-compliant solutions that don’t slow progress. This model carries cULus Listed, NOM, and Federal Specification Classification W-C-596G to help meet safety and procurement standards, while providing dual controlled functionality and a distinctive green finish. With modular design and straightforward installation, it supports efficient project turnover, repeatable performance, and easier maintenance in busy electrical rooms and service corridors.
Product Information
Extended Description
EZTR5262CDGN Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-15R, three-wire, green
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262CDGN
UPC
032664010217
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Green
Feature: 15A, 125V rating with a NEMA 5-15R configuration enables standard plug compatibility. Business Impact: Ensures reliable operation for everyday office and light-industrial loads, reducing the need for specialty outlets and speeding procurement. Application: Office suites, retail outlets, data centers, and corridor wiring where standard receptacles are required. Feature: Tamper-resistant construction enhances safety and code compliance, lowering risk of accidental contact and child-use exposure. Business Impact: Improves incident prevention and helps meet safety program requirements, cutting potential downtime due to safety incidents. Application: Schools, healthcare facilities, and high-traffic commercial spaces. Feature: EZLink modular design supports quick field installation and scalable power distribution. Business Impact: Reduces installation time and labor costs while enabling flexible mounting and future reconfiguration. Application: Renovations, retrofit projects, and modular electrical distribution strategies. Feature: Dual controlled functionality provides versatile power management and monitoring options in shared spaces. Business Impact: Enables centralized control or staged power sequencing for equipment and displays, improving energy management and safety. Application: Conference rooms, showrooms, and mixed-use environments. Feature: Green color coding and a compact footprint (1.91 in depth, 1.75 in width, 4.4 in height) optimize panel space usage and identify outlets within complex layouts. Business Impact: Maximizes panel density, simplifies layout planning, and supports visual power zoning. Application: Telecommunications rooms, data centers, and office wiring closets. Feature: 3-wire configuration with 15A, 125Vac ratings aligns with common branch circuits and building codes. Business Impact: Streamlines inventory and reduces risk of mismatched components on job sites. Application: New construction and retrofit projects requiring standard, widely supported receptacles.
Get a Quick Quote for a Eaton EZTR5262CDGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262CDGN?
Enquire Now
FAQs
Yes. EZTR5262CDGN is rated for 15A at 125V and uses the NEMA 5-15R configuration, making it suitable for standard commercial and light industrial outlets. Its three-wire design supports common wiring schemes while maintaining safety with tamper-resistant construction.
This receptacle is cULus Listed, identified as NOM, and carries Federal Specification Classification W-C-596G. These certifications support safety compliance, procurement confidence, and broad acceptance in regulated environments.
The receptacle measures 1.91 inches in depth, 4.4 inches in height, and 1.75 inches in width, with a weight of 0.22 pounds. These compact dimensions aid in dense panel layouts and retrofit projects where space is at a premium.
Yes. The EZLink design is intended for modular/wiring-device applications, enabling quick field installation and scalable configurations. This supports efficient renovations, space planning, and future reconfiguration without rework of existing wiring.
Tamper-resistant construction reduces child and incidental contact risks, supports safer customer-facing environments, and helps meet safety standards, potentially reducing incident-related downtime and insurance concerns while speeding regulatory compliance in schools, offices, and retail spaces.
