Eaton EZTR5262CDLA Modular Duplex Receptacle - cULus Listed
Part Number: EZTR5262CDLA
Quick Summary
Eaton EZLink modular duplex receptacle provides reliable 15A, 125V power distribution for commercial and light industrial spaces. A common challenge is upgrading outlets without interrupting equipment or compromising safety during construction or maintenance. This unit is cULus Listed and NOM certified under Federal Specification W-C-596G, with tamper-resistant construction and dual-controlled NEMA 5-15R for safer, controlled access. The modular EZLink design supports quick field upgrades and easy configuration, while the light almond housing offers color-matched integration with interior finishes, helping projects stay on schedule and within budget. Ideal for hospitals, data centers, and commercial offices seeking reliable power distribution with easy maintenance.
Product Information
Extended Description

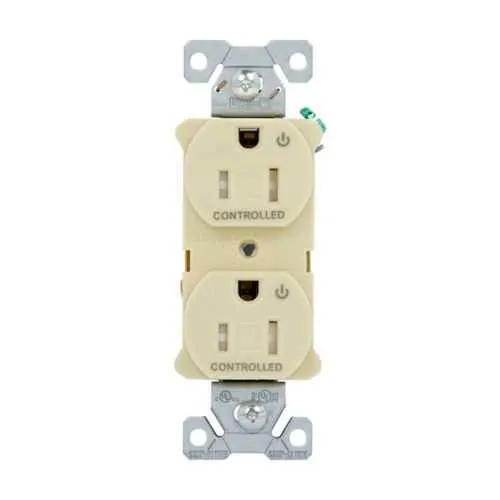

EZTR5262CDLA Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-15R, three-wire, light almond
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262CDLA
UPC
032664010231
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Light Almond
Feature: 15A, 125V, 60 Hz electrical rating provides compatibility with standard branch circuits and common office equipment. Business Impact: avoids adapters and overcurrent events, reducing service calls and downtime. Application: suitable for general office, retail, and light industrial installations. Feature: Tamper-resistant, NEMA 5-15R, three-wire design enhances safety and code compliance. Business Impact: minimizes accidental contact and unauthorized use, lowering risk and liability. Application: educational facilities, healthcare facilities, and public spaces requiring elevated outlet safety. Feature: Dual-controlled outlets offer regulated access for restricted lab or equipment areas. Business Impact: improves workflow control and asset management, reducing misuse and energy waste. Application: laboratories, data centers, and controlled production zones. Feature: EZLink modular design enables rapid field upgrades and straightforward configuration. Business Impact: accelerates commissioning, lowers labor costs, and supports scalable power layouts. Application: retrofit projects and modular panel installations where future expansion is anticipated. Feature: Light almond color and compact footprint (1.91 in depth, 1.75 in width, 4.4 in height) provide aesthetic integration and space efficiency. Business Impact: simplifies finish matching and installation in tight wall boxes, reducing reinstall risk. Application: commercial interiors, hospitality, and retail environments where appearance matters. Certification & compliance: cULus Listed, NOM, and Federal Specification W-C-596G ensure regulatory alignment and audit readiness. Business Impact: streamlines code compliance, supplier qualification, and project approvals. Application: spec-driven projects in regulated industries requiring proven safety certifications.
Get a Quick Quote for a Eaton EZTR5262CDLA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262CDLA?
Enquire Now
FAQs
EZTR5262CDLA is designed for standard 15A, 125V circuits with a NEMA 5-15R configuration and three wires. It fits typical single-gang boxes and provides a compact footprint (1.91 in depth, 4.4 in height, 1.75 in width). Use appropriate conductor sizes per local code and secure with compatible mounting hardware for a safe, code-compliant installation.
The receptacle is cULus Listed and NOM certified under Federal Specification W-C-596G. These certifications confirm adherence to recognized electrical safety and performance standards, facilitating code compliance, easier project approvals, and reliable performance in hostile environments typical of commercial and light industrial settings.
Yes, EZTR5262CDLA uses the EZLink modular design, enabling straightforward addition or replacement of outlets within modular distribution schemes. Benefits include faster installation, scalable power layouts, reduced field labor, and consistent electrical aesthetics across panels, helping projects adapt to evolving load requirements without full rewiring.
The receptacle delivers 15A at 125VAC and 60 Hz, with a 3-wire configuration for NEMA 5-15R outlets. It is ideal for offices, retail environments, healthcare facilities, and light manufacturing where reliable, standard electrical outlets are required and where tamper-resistant features enhance safety in high-traffic spaces.
The EZ Link modular devices brochure is available from Eaton’s official resources. For EZTR5262CDLA specifications, you can access the brochure linked in the product downloads section and reference the catalog number EZTR5262CDLA to locate the exact data sheet and installation guidance quickly.
