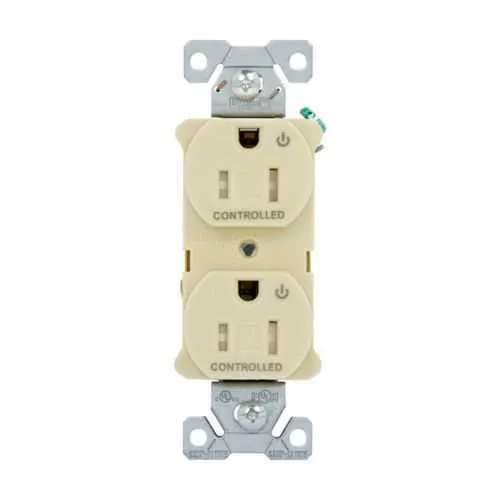

Eaton EZTR5262CDV EZLink modular duplex receptacle - Tamper-resistant
Part Number: EZTR5262CDV
Quick Summary
The Eaton EZLink modular duplex receptacle delivers reliable 125 Vac power for NEMA 5-15R outlets in commercial and industrial settings, enabling safe, dependable everyday operations. Fitting and upgrading are often disruptive, but EZLink minimizes downtime through a modular, field-flexible design that supports quick changes and scalable installations. These devices are cULus Listed, NOM certified, and meet Federal Specification W-C-596G, supporting code compliance across North America and easing procurement for regulated facilities. With a compact 1.91 in depth and ivory finish, it fits tight panels while maintaining status as NEMA 5-15R, 15 A, 125 Vac, 3-wire receptacle in demanding environments today.
Product Information
Extended Description
EZTR5262CDV Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-15R, three-wire, ivory
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262CDV
UPC
032664010255
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature: 15A at 125Vac with NEMA 5-15R, 3-wire configuration and tamper-resistant dual controlled design. Business Impact: Ensures compatibility with standard equipment, enhances safety, and reduces risk of tampering or accidental power loss. Application: Ideal for offices, labs, machine rooms, and workshops that require reliable, controlled power delivery. Feature: Modular EZLink architecture with a compact footprint. Business Impact: Speeds installation, simplifies upgrades, and lowers panel crowding while preserving standard mounting interfaces. Application: Panel installations in tight spaces and multi-outlet configurations across manufacturing floors. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Supports regulatory compliance and eases procurement across North America, limiting rework and inspection delays. Application: Regulated facilities and markets with strict safety and performance criteria. Feature: Ivory color and standard dimensions (1.91 in depth, 1.75 in width, 4.4 in height). Business Impact: Aesthetically integrates with existing outlets and minimizes panel modification, reducing installation complexity. Application: Replacements and new builds in offices, labs, and service counters. Feature: UPC 032664010255 and Catalog EZTR5262CDV reference for accurate ordering. Business Impact: Improves supply chain accuracy and reduces downtime caused by incorrect part numbers. Application: Procurement and maintenance planning across multiple sites.
Get a Quick Quote for a Eaton EZTR5262CDV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262CDV?
Enquire Now
FAQs
Power must be de-energized and the panel opened to access a standard single-gang box compatible with a NEMA 5-15R receptacle. Mount the EZTR5262CDV using approved screws, wire hot to the brass terminal, neutral to the silver terminal, and ground to the green screw. Ensure tamper-resistant shutters are intact and follow NEC guidelines during connections and testing.
The EZTR5262CDV is cULus Listed, NOM certified, and meets Federal Specification W-C-596G, ensuring compliance with safety and performance standards for US and Canadian markets. These certifications support code approvals, supplier qualification, and consistent installation practices across facilities, reducing potential delays during inspections or procurement.
Yes, EZTR5262CDV is described as dual controlled, enabling two independent control points for safety interlocks or process sequencing. When wiring, follow the device’s documentation to maintain separation between control paths and to comply with wiring diagrams for a NEMA 5-15R arrangement. This configuration supports enhanced safety and control in demanding applications.
The receptacle is rated 15A at 125Vac, with a 3-wire configuration and NEMA 5-15R compatibility. It comes in ivory and has a compact footprint suitable for panel mounting (1.91 in depth, 1.75 in width, 4.4 in height). Catalog number EZTR5262CDV and UPC 032664010255 aid ordering and traceability.
The modular design supports scalable power distribution with quick field upgrades, reducing downtime during expansion or replacement. By using common components with cULus and NOM certification, procurement is streamlined, maintenance intervals are predictable, and operations benefit from consistent regulatory compliance and faster service turnarounds across multiple sites.
