Eaton EZTR5262CHGY EZLink duplex receptacle - cULus
Part Number: EZTR5262CHGY
Quick Summary
The Eaton EZLink modular duplex receptacle provides reliable AC power distribution for industrial panels. In busy facilities, shared outlets create tampering and accidental contact risks; this unit mitigates those issues with tamper-resistant design and a compact footprint. It carries cULus listing with NOM Federal Specification classifications (W-C-596G), plus NEMA 5-15R compatibility and 125 Vac operation, helping meet North American electrical codes. The gray modular receptacle supports 15 A circuits and three-wire connections, aligning with common panel and device rack layouts. Its compact form simplifies in-box mounting and field retrofits, reducing install time and part counts for engineers, procurement teams, and installers alike.
Product Information
Extended Description

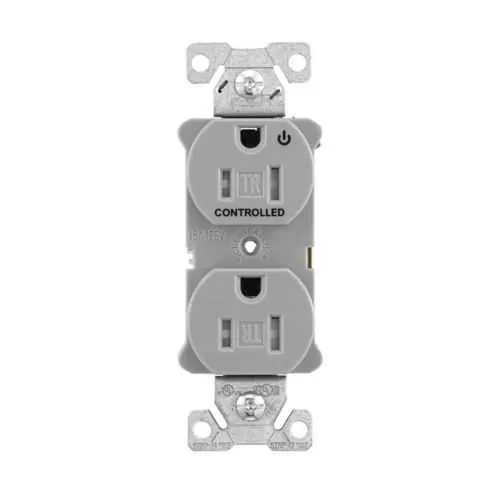

EZTR5262CHGY Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, half controlled, NEMA 5-15R, three-wire, gray
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262CHGY
UPC
032664010309
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Gray
Tamper-resistant construction enhances safety in crowded installations, reducing the risk of unplugging or exposure to live contacts while maintaining easy access for authorized maintenance. This feature translates to lower incident-driven downtime and safer work environments across manufacturing lines and utility spaces; it complements existing control panels and wall-mounted outlets without requiring special tools. The 15A, 125Vac rating with NEMA 5-15R compatibility provides broad compatibility for standard equipment and power strips, enabling rapid redeployments and scalable panel designs. Regulatory compliance is addressed through cULus listing and NOM W-C-596G classifications, simplifying approvals for North American projects and reducing audit concerns. The gray modular design integrates with EZLink systems and standard back-box configurations, streamlining procurement and installation while minimizing ballast in crowded enclosures. In practice, installers gain time savings when stocking, cataloging, and coordinating with OEMs or facility engineers, thanks to consistent form factor and reliable performance.
Get a Quick Quote for a Eaton EZTR5262CHGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262CHGY?
Enquire Now
FAQs
The EZTR5262CHGY is designed for typical 1-gang or larger back-box installations used in industrial panels and wall enclosures. Its compact depth of 1.91 in and standard NEMA 5-15R wiring configuration enable straightforward mounting with common screw spacing. When retrofitting, verify box fill limits and conductor sizing to meet 15A, 125Vac requirements, ensuring safe torque values on terminals to maintain long-term reliability.
Yes. The EZLink modular duplex receptacle is designed to integrate with Eaton’s EZLink family, providing consistent form factors and mounting interfaces. This compatibility supports scalable panel layouts and simplified procurement, allowing you to mix and match modular outlets within the same enclosure while maintaining electrical and mechanical consistency.
This receptacle carries cULus listing and NOM Federal Specification W-C-596G, which validate safety, performance, and compliance for North American installations. These certifications simplify regulatory approvals, reduce risk during audits, and support reliable operation in commercial and industrial environments.
The unit is rated for 15A at 125Vac with a three-wire configuration and a NEMA 5-15R outlet. It features tamper-resistant construction and a gray modular housing, designed for compact, safe, and easy integration into control panels and equipment racks while meeting common regulatory standards.
Tamper-resistant design reduces accidental contact and equipment tampering, lowering incident-related downtime and potential repair costs. Standardized form factors and quick installation shorten maintenance cycles, while cULus/NOM approvals streamline audits, contributing to lower total cost of ownership and improved project velocity for OEMs and facility managers.
