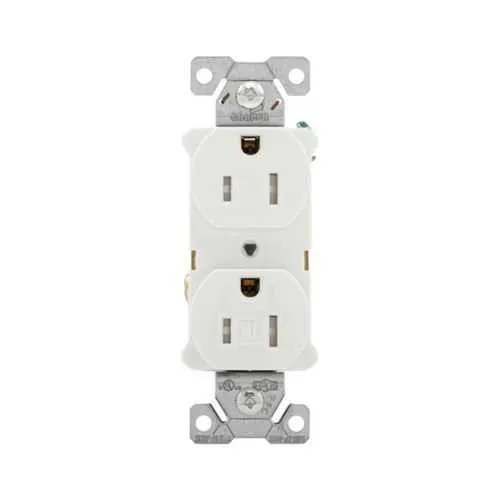

Eaton EZLink duplex receptacle EZTR5262SCRD - cULus Listed
Part Number: EZTR5262SCRD
Quick Summary
The Eaton EZLink duplex receptacle EZTR5262SCRD provides reliable power delivery for industrial control panels and process equipment. When field wiring is installed in tight spaces, a compact, modular solution saves time and reduces miswiring risk. This receptacle carries critical certifications that matter in regulated environments: cULus Listed, NOM, and Federal Specification Classification W-C-596G, ensuring safety and performance across North American applications. Its 15A, 125V rating supports standard control and auxiliary circuits without overloading, while tamper-resistant design improves operator safety in harsh environments. The red color coding aids circuit identification and maintenance, while the modular EZLink platform simplifies upgrades, retrofit work, and future-proofing in ongoing plant modernization.
Product Information
Extended Description
EZTR5262SCRD Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, split control, NEMA 5-15R, three-wire, red
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262SCRD
UPC
032664011283
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Feature: 15A, 125V electrical rating with NEMA 5-15R configuration. Business Impact: Delivers reliable, standardized power to common control circuits, reducing the risk of nuisance trips and enabling predictable performance in panels. Application: Ideal for process equipment and control stations that rely on standard 125V AC power. Feature: Tamper-resistant design. Business Impact: Enhances safety in environments with frequent access by operators and maintenance staff, lowering commissioning time and risk of accidental contact. Application: Regulatory-compliant installations in commercial and industrial spaces. Feature: Red color-coding and 3-wire grounding. Business Impact: Simplifies wiring identification and minimizes mis-wiring during panel assembly and maintenance. Application: Rapid panel commissioning and safer routine service. Feature: Split control capability and EZLink modular integration. Business Impact: Enables independent circuit control and straightforward future upgrades, reducing downtime during reconfiguration. Application: Flexible for evolving control architectures in automation projects. Feature: Compact dimensions (1.91 in L, 4.4 in H, 1.75 in W) and lightweight (0.22 lb). Business Impact: Facilitates dense panel layouts and easier installation in crowded enclosures. Application: Suitable for retrofit projects and new panel builds with tight footprints. Feature: Certifications (cULus Listed, NOM, W-C-596G). Business Impact: Ensures compliance with stringent North American standards, easing procurement for regulated facilities. Application: Compliance-heavy industries such as manufacturing and food & beverage. The combination of these features supports measurable outcomes like improved installation speed, enhanced safety, and long-term reliability in panel assemblies.
Get a Quick Quote for a Eaton EZTR5262SCRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262SCRD?
Enquire Now
FAQs
Installation begins with selecting a compatible electrical box and ensuring a clean, grounded enclosure. Connect the 3-wire conductors to the NEMA 5-15R terminals, verify correct ground, and secure the receptacle within the EZLink modular framework. The tamper-resistant design helps prevent accidental contact during servicing, while color-coding supports quick identification. Follow local codes and the EZLink brochure for step-by-step guidance.
This receptacle is rated at 15A and 125V, operating at 60 Hz with 3 wires. It uses a NEMA 5-15R configuration, making it compatible with standard control circuits and common panel devices. The tamper-resistant feature adds safety, and the red color aids wiring identification during installation and maintenance in busy panels.
EZTR5262SCRD provides robust safety features and is cULus Listed with NOM and W-C-596G classifications, which support compliance in regulated environments. However, suitability for harsh environments depends on enclosure protection and exposure conditions. For extreme or hazardous areas, consider additional enclosure ratings and environmental controls alongside this receptacle to ensure reliability.
The device is cULus Listed, NOM, and classified under Federal Specification W-C-596G. These certifications indicate conformity to North American safety and performance standards, facilitating procurement for regulated facilities and simplifying inspector acceptance. They help ensure consistent quality across installations in manufacturing, facilities management, and industrial automation projects.
Tamper-resistant design reduces unsafe interactions and potential wiring damage, lowering maintenance calls and downtime. The modular EZLink approach streamlines upgrades and retrofits, enabling phased panel modernization without full rewiring. Over time, this can translate into lower lifecycle costs, faster changeouts, and improved overall equipment reliability in automation and control systems.
