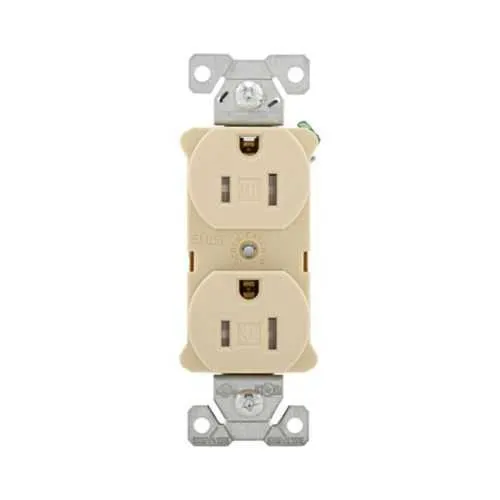

Eaton EZTR5262SCV EZLink Modular Duplex Receptacle - cULus
Part Number: EZTR5262SCV
Quick Summary
The Eaton EZLink modular duplex receptacle provides reliable power distribution for control panels and workstations. Engineers often struggle with tamper-resistant compliance, split control wiring, and compact footprints in crowded panels. This model is cULus Listed, NOM certified, and meets Federal Specification W-C-596G, supporting safe, code-compliant installations. Its 15A, 125V capacity and NEMA 5-15R configuration help streamline procurement while the ivory finish harmonizes with standard enclosures, reducing customization needs. Designed for modular expansion in evolving automation layouts, it supports efficient panel design and reduced wiring errors, delivering faster project turnarounds. The integration-friendly form factor also simplifies replacement and maintenance, helping facilities meet uptime targets.
Product Information
Extended Description
EZTR5262SCV Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, split control, NEMA 5-15R, three-wire, ivory
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262SCV
UPC
032664011290
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature: Tamper-resistant 15A 125Vac NEMA 5-15R receptacle. Business Impact: Enhances safety and code compliance, reducing tampering opportunities and maintenance calls. Application: Control panels, instrument racks, and machine enclosures where outlets require protective features. Feature: Split control and three-wire configuration. Business Impact: Enables independent circuit management in a single device, reducing harness length and improving wiring clarity. Application: Robotics benches, conveyors, and automation racks where selective power distribution is needed. Feature: Modular EZLink design with ivory finish. Business Impact: Speeds installation, simplifies future upgrades, and ensures consistent aesthetics across enclosures. Application: New builds and retrofits across light-industrial environments. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Provides regulatory assurance across North America, streamlining procurement and lowering risk of non-compliance. Application: Any panel or outlet installation requiring cross-border eligibility, from factory floors to maintenance bays. Feature: Compact footprint and lightweight. Business Impact: Increases panel density, reduces installation time, and minimizes enclosure footprint. Application: High-density electrical panels and instrument cabinets where space is at a premium.
Get a Quick Quote for a Eaton EZTR5262SCV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262SCV?
Enquire Now
FAQs
EZTR5262SCV uses a standard NEMA 5-15R receptacle configuration rated at 15A and 125V, making it compatible with common electrical panels, control enclosures, and instrument racks. Its compact footprint and three-wire setup simplify mounting and wiring in tight panel spaces without sacrificing safety or performance.
Key specs include 15A amperage, 125Vac voltage, 60 Hz frequency, NEMA 5-15R configuration, three wires, tamper-resistant design, ivory color, and dimensions of 1.91 in depth, 4.4 in height, 1.75 in width with a weight of 0.22 lb. UPC is 032664011290, catalog number EZTR5262SCV.
Yes. The EZTR5262SCV is cULus Listed and NOM certified and meets Federal Specification W-C-596G, providing regulatory assurance for North American installations and facilitating cross-border procurement and compliance.
The modular EZLink design allows rapid additions or replacements of receptacles within a panel, reducing wiring complexity and installation time. This design supports scalable power distribution in evolving automation layouts and simplifies future upgrades without major rework.
The EZ Link modular devices brochure is available at Eaton’s official site: https://www.eaton.com/content/dam/eaton/products/wiring-devices-and-connectivity/wiring-devices/modular-devices/ez-link-modular-devices-brochure-br620029en.pdf
