Eaton EZTR5262W EZLink receptacle - cULus Listed
Part Number: EZTR5262W
Quick Summary
The Eaton EZLink modular duplex receptacle provides 15 A, 125 V power for general outlets in commercial settings. Installers frequently contend with space-constrained panels, retrofit challenges, and miswired outlets that drive project delays and call-backs. Certified cULus Listed, NOM, and Federal Specification W-C-596G provide clear compliance, traceability, and safety performance for mission-critical spaces. The modular, tamper-resistant NEMA 5-15R design supports scalable layouts and faster wiring for facilities teams. Its modular duplex design minimizes congestion in electrical boxes and reduces handling time during installation, while ensuring standardized outlet performance across facilities. The 15 A, 125 V rating matches typical loads, enabling reliable operation across offices, retail, and service areas. compatible with standard electrical boxes and modular device runs for easy upgrades and maintenance.
Product Information
Extended Description

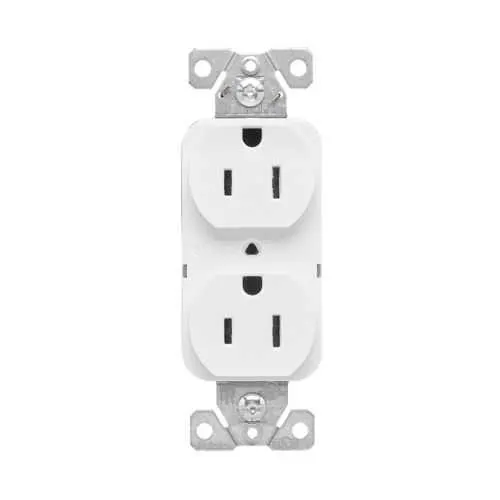

EZTR5262W Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, NEMA 5-15R, three-wire, white
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5262W
UPC
032664011320
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature: 15 A, 125 V rating in a NEMA 5-15R modular duplex receptacle. Business Impact: Minimizes overload risk and promotes consistent performance across circuits, reducing commissioning time. Application: Ideal for new builds and retrofit projects in commercial spaces requiring standardized outlets. Feature: EZLink modular design enables quick configuration, scalable layouts, and straightforward daisy-chaining of multiple receptacles. Business Impact: Speeds installations, reduces field wiring errors, and supports maintenance with a flexible outlet network. Application: Suitable for office suites, retail kiosks, and shop floors needing adaptable outlet provisioning without complex rewiring. Feature: Tamper-resistant construction with a three-wire grounding scheme enhances safety. Business Impact: Improves code compliance and reduces risk of electrical shock, lowering incident costs. Application: Commonly deployed in classrooms, healthcare support areas, and high-traffic zones where safety-by-design outlets are essential. Feature: Certifications include cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Supports regulatory audits, procurement consistency, and traceability across markets. Application: Preferred in commercial, industrial, and institutional installations seeking robust compliance. Feature: Compact dimensions and light-weight construction—1.91 in depth, 4.4 in height, 1.75 in width, and ~0.22 lb. Business Impact: Eases handling and reduces installation time in crowded boxes. Application: Fits standard electrical boxes and fits seamlessly into the Eaton EZLink ecosystem for upgrades or expansions.
Get a Quick Quote for a Eaton EZTR5262W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5262W?
Enquire Now
FAQs
Yes. EZTR5262W is designed for standard electrical boxes and the EZLink modular family, enabling straightforward replacement or upgrades in existing installations. Its NEMA 5-15R configuration supports common 125 V circuits, and its compact footprint helps minimize box congestion during retrofits or new builds.
EZTR5262W provides 15 A at 125 V with a NEMA 5-15R receptacle, 3-wire grounding, and tamper-resistant protection. It is cULus Listed and conforms to NOM and Federal Specification W-C-596G, delivering reliable operation while meeting stringent safety and regulatory requirements for commercial and light-industrial environments.
This receptacle is well-suited for offices, retail spaces, classrooms, healthcare support areas, and light-industrial settings where standardized outlets and tamper-resistant safety are prioritized. Its modular design supports scalable configurations, making it ideal for growing facilities with recurring power provisioning needs.
The cULus Listing, NOM, and Federal Specification W-C-596G provide documented safety, performance, and regulatory alignment. This simplifies supplier qualification, accelerates procurement, and enhances traceability during audits, helping facilities demonstrate compliance across multi-site deployments.
The EZLink modular approach reduces wiring complexity and commissioning time, while tamper-resistant design lowers safety-related incident costs. Lightweight, compact form factors simplify handling and rework is minimized during upgrades, contributing to lower total cost of ownership over the product’s life cycle.
