Eaton EZTR5362CDBK EZLink duplex receptacle - cULus
Part Number: EZTR5362CDBK
Quick Summary
The Eaton EZTR5362CDBK EZLink modular duplex receptacle provides reliable 20A, 125V power for commercial and industrial outlets. Installing modular devices can complicate wiring and compliance, especially in space-constrained panels and when future upgrades are anticipated. It is cULus listed and carries Federal Specification W-C-596G, with tamper-resistant and dual-controlled design for enhanced safety and code conformity. The NEMA 5-20R configuration and 125 Vac operation support common industrial loads, while its compact depth of 1.91 in enables cleaner panel layouts and faster terminations. These features deliver quicker installations, reduced wiring errors, lower maintenance costs, and scalable, code-compliant power distribution for manufacturing, facilities, data centers, and critical automation environments.
Product Information
Extended Description

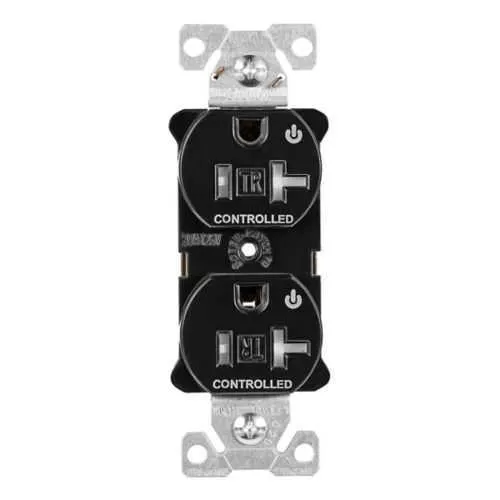

EZTR5362CDBK Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-20R, three-wire, black
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362CDBK
UPC
032664011368
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Black
Feature: 20A, 125V operation with NEMA 5-20R. Business Impact: Enables reliable power delivery for common industrial loads without adapters or custom wiring. Application: Ideal for control panels, machine housings, and equipment racks in automation environments. Feature: Tamper-resistant and dual-controlled design. Business Impact: Improves safety by preventing accidental contact and tampering, reducing downtime due to wiring issues. Application: Suitable for manufacturing cells, packaging lines, and lab benches where controlled access is required. Feature: EZLink modular design for quick terminations. Business Impact: Shortens installation times and lowers labor costs with plug-and-play modular components. Application: Panel builders and electrical contractors upgrading legacy panels or expanding power distribution. Feature: Compact depth of 1.91 in. Business Impact: Saves panel space, improves airflow, and enables cleaner, faster terminations. Application: Compact control panels and electrical enclosures in tight installations. Feature: Regulatory compliance. Business Impact: Increases reliability and reduces risk with cULus and W-C-596G certification. Application: Industrial facilities needing stringent safety and regulatory adherence.
Get a Quick Quote for a Eaton EZTR5362CDBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362CDBK?
Enquire Now
FAQs
Power should be off before installation. Remove the existing device, align the EZLink module with the panel cutout, and seating it firmly. Connect the hot, neutral, and ground conductors to the terminals, tighten all screws to spec, and verify the tamper-resistant shutters operate freely. Finally, re-energize and test for proper polarity and function.
It combines a 20A, 125V rating with a NEMA 5-20R configuration, tamper-resistant and dual-controlled design, and a compact 1.91 inch depth. This minimizes panel footprint, enhances safety, and ensures reliable power delivery for automation controllers, drives, and sensing equipment in busy manufacturing environments.
Yes. The EZLink receptacle is specified for 60 Hz operation at 125 Vac, aligning with standard industrial power networks. Its NEMA 5-20R configuration supports typical control panels and machines, enabling straightforward integration with existing 125 Vac circuits in automation facilities.
The device is cULus listed and carries Federal Specification W-C-596G, ensuring compliance with recognized safety and performance standards. This reduces regulatory risk, supports safer installations in controlled environments, and simplifies procurement for projects requiring strict electrical certifications.
EZLink modular devices cut installation time through faster terminations and fewer field connections, lowering labor costs. The tamper-resistant features and regulatory compliance reduce downtime and maintenance, delivering a measurable ROI in shorter project cycles and improved ongoing reliability for manufacturing lines and data-center panel upgrades.
