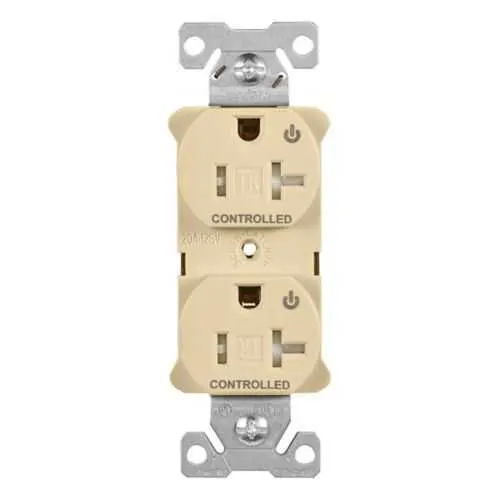

Eaton EZTR5362CDV EZLink modular duplex receptacle - cULus Listed
Part Number: EZTR5362CDV
Quick Summary
EZLink modular duplex receptacle is a versatile 20A, 125V outlet solution for controlled power distribution in industrial panels. This compact, tamper-resistant device helps prevent accidental contact while delivering reliable wiring performance in harsh environments. It carries a robust set of certifications to support compliance and risk management, including cULus Listed, NOM, and Federal Specification W-C-596G, ensuring safe operation across North American facilities. Designed for simple integration with Eaton's modular device ecosystem, the EZTR5362CDV supports NEMA 5-20R wiring and a three-wire configuration. By combining dual controlled functionality and a lightweight form factor, it reduces installation time, lowers maintenance costs, and improves overall panel efficiency for OEMs and end users.
Product Information
Extended Description
EZTR5362CDV Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-20R, three-wire, ivory
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362CDV
UPC
032664011412
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature: 20A, 125V, NEMA 5-20R compatibility. Business Impact: Supports standard 20A circuits with proper grounding for high-usage equipment. Application: Ideal for factory panels and equipment enclosures where reliable, plug-and-play receptacles are required. Feature: Tamper-resistant design and dual controlled capability. Business Impact: Enhances safety by preventing user tampering and enables independent circuit control to optimize automation workflows. Application: Suitable for controlled power segments within automated lines and service panels. Feature: cULus Listed, NOM, and Federal Specification W-C-596G certifications. Business Impact: Reduces compliance risk and streamlines procurement across facilities that mandate strict regulatory adherence. Application: Regulated environments such as manufacturing and distribution centers. Feature: Compact dimensions and lightweight construction (1.91 in depth, 4.4 in height, 1.75 in width; 0.22 lb). Business Impact: Eases installation in tight panels and reduces mounting time while preserving reliability. Application: Panel retrofit projects and new builds where space is a constraint. Feature: Ivory color and NEMA 5-20R, three-wire wiring. Business Impact: Visual compatibility with standard wall plates and straightforward wiring simplifies replacement and maintenance. Application: Commercial and light industrial installations seeking a seamless aesthetic and dependable performance.
Get a Quick Quote for a Eaton EZTR5362CDV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362CDV?
Enquire Now
FAQs
EZTR5362CDV is a 20A, 125V three-wire receptacle with NEMA 5-20R compatibility designed for panel mounting. It supports standard electrical boxes and EZLink modular devices, enabling quick substitution in existing panels. Ensure proper grounding and use compatible faceplates to maintain tamper-resistance and safety standards during retrofit or new builds.
This receptacle provides 20A at 125 VAC with three wires. It is designed as a NEMA 5-20R outlet in ivory and incorporates tamper-resistant features. The dual controlled capability allows independent circuit control, which is beneficial in automation panels needing segregated control channels while meeting regulatory requirements.
Yes. The EZTR5362CDV is intended for industrial and commercial panels where reliable power distribution is essential. Its dual controlled feature supports separate control schemes, and its robust certifications (cULus Listed, NOM, W-C-596G) align with industry safety and compliance standards often required in automation environments.
The EZTR5362CDV carries cULus Listed status, NOM, and Federal Specification W-C-596G. These certifications address safety, performance, and material standards, helping verify compliance for North American facilities and simplifying procurement for regulated projects.
The tamper-resistant design reduces operational shocks and vandalism risk, while the dual controlled capability supports efficient energy management in automation lines. Its compact footprint and lightweight construction speed up installation, reducing labor costs and downtime during maintenance or panel upgrades, delivering measurable ROI over time.
