Eaton EZTR5362CHGN EZLink modular duplex receptacle - cULus
Part Number: EZTR5362CHGN
Quick Summary
EZLink modular duplex receptacle is a 20A, 125 VAC outlet designed for industrial control panels and equipment housings. This design helps solve space constraints and wiring complexity common in compact panels. It carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, providing strong safety and performance assurance. The green color aids visibility in color-coded installations, while its compact form supports scalable Eaton EZLink modular device ecosystems. For procurement teams and engineers, the product combines safety, reliability, and ease of installation to reduce commissioning time and long-term maintenance costs.
Product Information
Extended Description

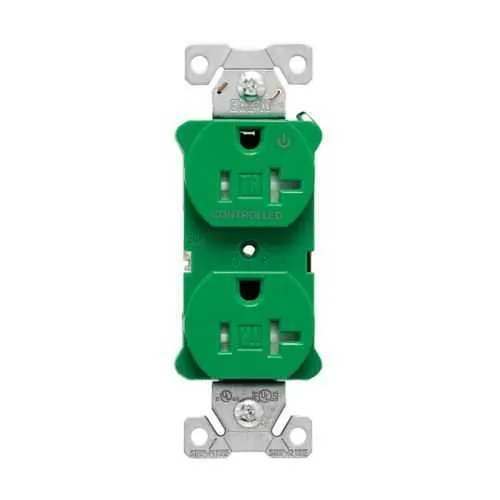

EZTR5362CHGN Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, half controlled, NEMA 5-20R, three-wire, green
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362CHGN
UPC
032664011450
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Green
Feature: 20A, 125 VAC rating enables standard industrial power delivery with NEMA 5-20R compatibility, reducing the need for adapters. Business impact: supports reliable, code-compliant power distribution for control panels and equipment, improving uptime. Application: industrial cabinets and machine enclosures where heavy-duty outlets are required without bulky fixtures. Feature: Tamper-resistant, three-wire design enhances safety by preventing unwanted foreign-object insertion and ensuring proper grounding. Business impact: lowers risk of electrical incidents and compliance gaps, reducing safety audits and downtime. Application: panel assemblies in manufacturing lines and data centers. Feature: Compact footprint at 1.91 in depth, 1.75 in width, and 4.4 in height; weight 0.22 lb. Business impact: simplifies installation in tight spaces and eases retrofits or expansions. Application: crowded control panels and equipment housings. Feature: NEMA 5-20R, green color, and three-wire configuration support quick identification and correct wiring, minimizing misconnection risks. Business impact: accelerates commissioning and reduces wiring errors in high-mix environments. Application: automation cabinets in food & beverage, packaging, and process industries. Feature: Certifications cULus Listed, NOM, W-C-596G provide documented compliance for industrial environments, boosting supplier confidence and customer audits. Business impact: helps meet procurement standards and regulatory requirements across regions. Application: global deployments requiring recognized safety certification. Feature: Easy integration with EZLink modular devices enables scalable wiring, faster panel expansion, and standardized maintenance. Business impact: reduces total installed cost and simplifies spare parts management. Application: growing automation projects and multi-panel installations.
Get a Quick Quote for a Eaton EZTR5362CHGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362CHGN?
Enquire Now
FAQs
When wiring into crowded panels, plan for the 1.91 in depth and 1.75 in width footprint. Use the three-wire configuration for proper grounding and ensure the receptacle aligns with NEMA 5-20R outlets. Verify color-coded green housing for quick identification and use tamper-resistant features to meet safety requirements in confined spaces.
The receptacle is rated for 20A at 125 VAC (60 Hz) with three wires. It supports NEMA 5-20R configuration and is designed for standard industrial loads. These specs meet typical automation panel demands and help ensure compatibility with common control devices and power distribution practices.
Yes. It is cULus Listed and NOM certified, with Federal Specification Classification W-C-596G. These certifications indicate suitability for regulated environments and help streamline audits, procurement approvals, and cross-border deployments.
Ideal for control panels, machine enclosures, and power distribution in manufacturing, packaging, and process industries. Its tamper-resistant, three-wire, NEMA 5-20R configuration supports safer operation in environments where multiple devices share a common supply, and its green color aids in quick wiring verification during assembly and maintenance.
EZLink modular devices provide a scalable, standardized interface that reduces wiring time and simplifies spares management. The compact footprint and ease of retrofit support faster panel expansions, lower labor costs, and improved uptime across multiple panels and sites, delivering measurable cost savings over the life of the automation system.
