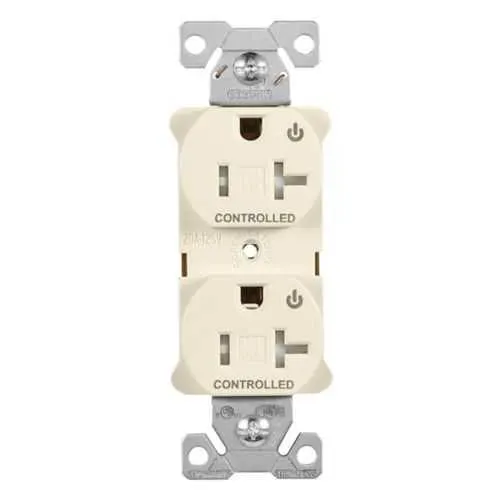

Eaton EZTR5362CHLA EZLink duplex receptacle - cULus Listed
Part Number: EZTR5362CHLA
Quick Summary
Eaton EZLink modular duplex receptacle delivers reliable, code-compliant power for commercial and light industrial outlets. Many installations struggle with tamper-resistance gaps, loose connections, and noncompliance that slow projects. This model carries cULus Listed certification with NOM and Federal Specification W-C-596G, reinforcing safety and compatibility across panels. Designed for quick installation and long-term reliability, it supports NEMA 5-20R outlets, modular expansion, and consistent performance in busy electrical spaces. Procurement teams appreciate a single, safety-certified device for streamlined specs, reducing procurement complexity and inventory. The modular EZLink approach accelerates renovations and maintenance windows, while the tamper-resistant design helps minimize downtime and safety incidents.
Product Information
Extended Description
EZTR5362CHLA Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, half controlled, NEMA 5-20R, three-wire, light almond
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362CHLA
UPC
032664011474
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Light Almond
The EZLink duplex receptacle is rated for 20A at 125VAC with three wires, delivering a reliable feed through a NEMA 5-20R. This arrangement supports common office, healthcare, and light-industrial loads, reducing voltage drop and minimizing nuisance trips in high-traffic outlets. Designed for modular integration, the device can be paired with other EZLink modules to build scalable outlet configurations in retrofit projects. Tamper-resistant construction uses internal shutters to prevent foreign object insertion when a plug is not fully inserted. This feature improves on safety requirements in code-compliant environments and lowers the risk of accidental contact in busy workspaces. Operators and maintenance staff benefit from a safer, easier-to-audit outlet that reduces compliance overhead. EZLink's modular design enables straightforward expansion, daisy-chaining, and compatible device exchanges without rewiring entire panels. For project managers, this translates into faster installation, lower labor costs, and simplified spare-part inventories. Engineers can standardize on a single device family across multiple outlets, improving procurement consistency and stock control. The compact footprint—1.91 in depth, 1.75 in width, and 4.4 in height—fits standard electrical boxes and shallow enclosures. At about 0.22 lb, it remains manageable during retrofit work and reduces overfilling risk in crowded spaces. Three-wire configuration supports safer grounding practices and reliable multiwire branch circuit connections. Light almond color helps the unit blend with most interior décor, reducing visible mismatches in office suites and labs. This aesthetic compatibility supports better user acceptance and reduces rework during renovations. Compliance and safety certifications—cULus Listed, NOM, and Federal Specification W-C-596G—underscore reliability across panels and installers. These credentials support audit readiness, supplier consolidation, and faster approval in regulated environments. Together with standardization in the EZLink family, the receptacle aids maintenance teams in achieving consistent performance.
Get a Quick Quote for a Eaton EZTR5362CHLA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362CHLA?
Enquire Now
FAQs
EZTR5362CHLA provides a 20A at 125VAC, 60 Hz three-wire NEMA 5-20R outlet. This configuration supports typical office and light industrial loads, offering reliable power distribution while minimizing voltage drop on shared circuits. The modular design helps installers plan box fill and wire routing more predictably, reducing troubleshooting during startup.
Yes. The EZTR5362CHLA features tamper-resistant shutters that prevent foreign objects from contacting live terminals unless a plug is fully inserted. It carries cULus Listed certification and NOM, aligning with NEC code requirements and supporting compliance across regulated environments, clinics, and schools without additional accessories.
Absolutely. The EZLink modular design is intended for expansion and daisy-chaining with compatible EZLink devices. This simplifies renovations, reduces wiring work, and enables standardized outlet configurations across multiple rooms or panels, improving procurement consistency and reducing labor time.
This receptacle is cULus Listed, NOM certified, and referenced to Federal Specification W-C-596G. These credentials indicate safety, reliability, and interchangeability with common components, helping you meet regulatory standards, streamline supplier selection, and simplify maintenance in regulated industries such as healthcare and manufacturing.
The unit has a depth of 1.91 in, a width of 1.75 in, and a height of 4.4 in, with a weight around 0.22 lb. These compact dimensions fit standard electrical boxes and shallow enclosures, enabling straightforward retrofit projects and minimizing box fill challenges while maintaining robust wiring access and serviceability.
