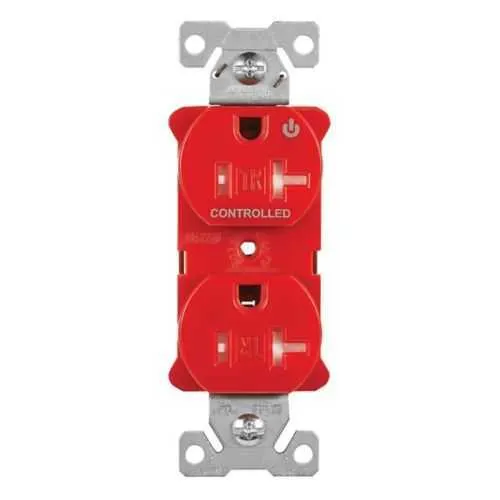

Eaton EZTR5362CHRD EZLink modular duplex receptacle - cULus
Part Number: EZTR5362CHRD
Quick Summary
EZLink modular duplex receptacle is a tamper-resistant power outlet designed for controlled, reliable distribution in commercial and industrial equipment. Many engineers struggle with shared equipment loads, non-compliant outlets, or tight installations, and this receptacle simplifies field wiring and panel placement. Certified to cULus, NOM, and Federal Specification W-C-596G, it supports safe, regulatory-compliant deployments across U.S. and international facilities. Its compact form factor and red color coding support quick identification, while compatibility with NEMA 5-20R outlets streamlines replacement and service patterns. In addition, the modular EZLink platform accelerates project timelines and reduces wiring errors, delivering measurable efficiency gains and lower total cost of ownership.
Product Information
Extended Description
EZTR5362CHRD Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, half controlled, NEMA 5-20R, three-wire, red
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362CHRD
UPC
032664011481
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Tamper-resistant design combined with a 20A, 125V rating and NEMA 5-20R configuration delivers safer access control for outlets used around machinery and workstations. This reduces the risk of accidental contact and helps meet safety standards during audits. Engineers in manufacturing and labs can deploy these outlets with confidence, knowing they support controlled power delivery to critical equipment. Compatibility and platform integration with Eaton's EZLink modular devices enable rapid field replacement and consistent wiring schemes, lowering maintenance time and minimizing human error in complex panels. The red finish aids circuit identification in dense enclosures, while three-wire, half-controlled operation supports both switching and always-on needs, giving teams flexibility in power management. The compact footprint (1.91 in depth, 4.4 in height, 1.75 in width) simplifies retrofits in tight spaces and reduces panel depth requirements, improving installation velocity. Certifications such as cULus Listed, NOM, and Federal Specification W-C-596G underpin cross-border deployments and procurement reliability, enabling safer sourcing and standardized documentation across projects.
Get a Quick Quote for a Eaton EZTR5362CHRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362CHRD?
Enquire Now
FAQs
The EZTR5362CHRD is a 20A, 125Vac, 60 Hz modular receptacle configured as NEMA 5-20R with three-wire wiring. It fits standard NEMA 5-20R outlets and is designed for controlled power delivery within Eaton's EZLink modular device ecosystem. This combination supports reliable operation in machine rooms, panels, and workstations while maintaining safety standards.
Yes. The EZTR5362CHRD is part of Eaton’s EZLink modular devices family, enabling seamless integration, consistent wiring schemes, and rapid field replacements. It is specifically designed for installation in control panels and dense electrical enclosures where modular power distribution simplifies upgrades and reduces wiring errors during panel updates.
The receptacle is cULus Listed, with NOM and Federal Specification W-C-596G coverage. These certifications support safety compliance in the United States, Canada, and applicable international markets, helping buyers meet procurement specs and pass regulatory audits without additional modification.
Key considerations include its compact footprint (1.91 in depth, 4.4 in height, 1.75 in width) and red color coding for quick identification. The three-wire, tamper-resistant design enhances safety, while the NEMA 5-20R configuration ensures compatibility with common circuits. These factors collectively reduce panel depth requirements and support reliable, repeatable installations in tight spaces.
The value comes from enhanced safety, reduced downtime due to safer and faster wiring, and easier cross-border procurement thanks to standard certifications. Modular EZLink compatibility lowers maintenance costs by enabling rapid replacements without panel rework. In facilities with dense equipment or frequent reconfigurations, these efficiencies translate to lower total cost of ownership and faster project timelines.
