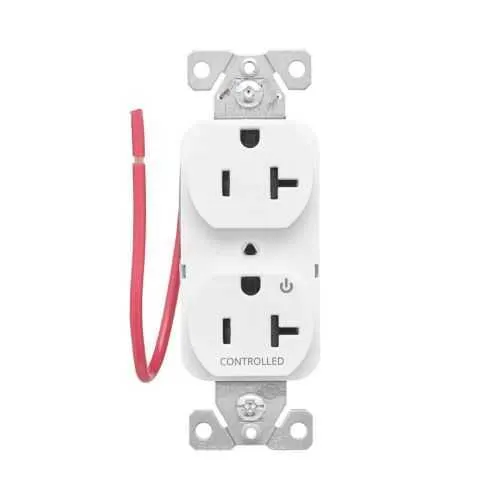

Eaton EZTR5362CHW EZLink duplex receptacle - cULus
Part Number: EZTR5362CHW
Quick Summary
EZLink modular duplex receptacle from Eaton delivers a 20 A, 125 V outlet for commercial and industrial panels. This design helps prevent project delays by simplifying wiring and enabling rapid deployment in tight enclosures. It carries cULus Listed, NOM, and Federal Specification Classification W-C-596G certifications, underscoring regulatory alignment and reliability. With tamper-resistant, three-wire construction and a compact footprint, it fits in confined spaces while meeting safety requirements. The white finish supports easy matching with standard panel hardware, and its compatibility with the EZLink modular family reduces inventory and procurement complexity, delivering a safer, more efficient power distribution solution for demanding environments.
Product Information
Extended Description
EZTR5362CHW Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, half controlled, NEMA 5-20R, three-wire, white
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362CHW
UPC
032664011504
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
White
Tamper-resistant, three-wire NEMA 5-20R receptacle provides a safe, code-compliant outlet for 125 VAC circuits. This design reduces risk of accidental contact and helps meet NEC requirements, lowering retrofit costs and warranty claims. Suitable for machine enclosures, control panels, and distribution boards where ongoing access is common. The compact form factor, with a depth of 1.91 in, height of 4.4 in, and width of 1.75 in, saves space in crowded enclosures, accelerates installations, and reduces cabinet modification. Grounded three-wire configuration ensures reliable fault path and compatibility with standard 20 A circuits, simplifying procurement and improving overall panel performance. EZLink modular compatibility enables scalable power distribution, minimizing wiring complexity and enabling phased upgrades across facilities. Certifications including cULus Listed, NOM, and W-C-596G validate performance, aiding audits and supplier qualification. A white finish supports consistent aesthetics and durable operation in harsh environments.
Get a Quick Quote for a Eaton EZTR5362CHW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362CHW?
Enquire Now
FAQs
When installing EZTR5362CHW, ensure the enclosure supports a NEMA 5-20R and 125 VAC circuits up to 20 A. Verify the mounting pattern aligns with EZLink modular devices, and maintain proper separation from high-heat components. Use standard wiring practices for three-wire, grounded outlets, and follow NEC guidance for tamper-resistant devices in accessible locations.
EZTR5362CHW provides 20A, 125 VAC operation with a NEMA 5-20R receptacle, three-wire grounding, and tamper-resistant construction. It is cULus Listed and designed for safe operation in commercial and industrial panels. The three-wire configuration ensures proper grounding, while tamper resistance reduces child access to live parts, supporting safer installations.
Yes. The receptacle is designed for use in industrial enclosures and control panels, offering a compact footprint that fits tight spaces, a robust 20 A/125 V rating, and tamper-resistant protection. Its modular EZLink compatibility helps streamline upgrades and scaling in busy facilities, improving uptime and ease of maintenance.
EZTR5362CHW is cULus Listed with NOM and Federal Specification Classification W-C-596G. These certifications confirm compliance with North American safety and performance standards, simplify supplier qualification, and support regulatory audits. They matter for project approvals, warranty eligibility, and ensuring consistent performance across diverse industrial environments.
Using EZLink modular devices reduces wiring complexity, speeds deployment, and lowers panel modification costs. The modular approach enables phased upgrades, minimizes spare-parts inventory, and enhances overall uptime. In environments with frequent reconfigurations, the EZLink system delivers scalable power distribution with proven safety and regulatory compliance.
