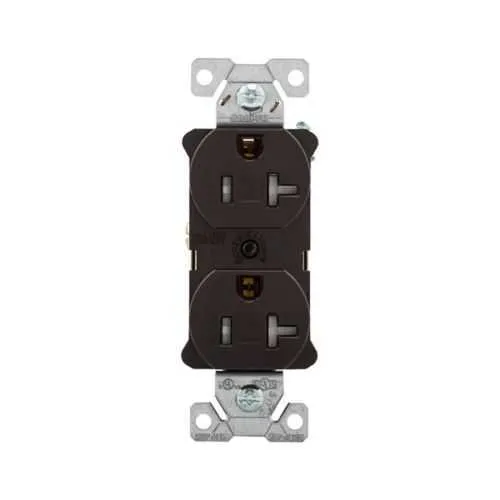

Eaton EZTR5362SCB EZLink modular duplex receptacle - cULus
Part Number: EZTR5362SCB
Quick Summary
The Eaton EZLink modular duplex receptacle is a 20A, 125V outlet designed for reliable panel wiring and control cabinet applications. In demanding industrial environments, miswiring, unsafe outlets, and non-compliant devices can cause costly downtime and rework. This unit carries cULus Listed, NOM, and Federal Specification Classification W-C-596G certifications to meet stringent safety and regulatory requirements. Its brown finish and NEMA 5-20R configuration support quick identification and easy integration into standard electrical boxes, while a compact 1.91 in depth helps maximize space in crowded panels. For engineers and procurement teams, the combination of safety, compatibility, and ease of installation translates into faster projects, fewer change orders, and long-term reliability in mission-critical applications.
Product Information
Extended Description
EZTR5362SCB Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, split control, NEMA 5-20R, three-wire, brown
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362SCB
UPC
032664011542
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature: 20A, 125V amperage and voltage rating supports standard high-load circuits in control panels. Benefit: Delivers reliable power for equipment with minimal voltage drop, reducing nuisance trips and improving equipment performance in industrial automation environments. Application: Ideal for 20A accessory circuits in machine control panels and robotics cabinets. The compact depth of 1.91 in enables denser panel layouts without compromising accessibility. Feature → Business Impact → Application: Space-efficient design increases panel density, lowering enclosure footprint and overall installation costs in manufacturing lines and process automation. Feature: NEMA 5-20R three-wire receptacle provides compatible hot, neutral, and ground connections for common 125V loads. Benefit: Improves wiring standardization and safety across legacy and new installations. Application: General-purpose power distribution in industrial equipment housings. Feature: Tamper-resistant construction minimizes user-induced faults and complies with modern safety codes. Benefit: Reduces maintenance calls and protects personnel from accidental contact with live conductors. Application: Machinery panels in assembly and packaging environments where safety compliance is essential. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Benefit: Ensures regulatory alignment, simplifies audit readiness, and supports procurement with defensible compliance. Application: Supply chain and spec documentation for industrial electrical projects, panel builds, and retrofit programs.
Get a Quick Quote for a Eaton EZTR5362SCB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362SCB?
Enquire Now
FAQs
EZTR5362SCB is designed with a compact 1.91 inch depth and a 4.4 inch height, enabling tighter panel layouts and easier mounting in standard electrical boxes. Its NEMA 5-20R configuration supports common 125V loads, while the three-wire design ensures reliable ground and neutral connections for safer operation in automation cabinets.
Yes. The receptacle uses a standard duplex form factor compatible with common enclosure cutouts and mounting schemes used in industrial panels. Its 20A, 125V rating aligns with typical control circuit loads, and the compact depth helps maximize available space in densely packed cabinets.
The device is cULus Listed, accompanied by NOM and Federal Specification Classification W-C-596G. These certifications address safety, electrical performance, and compatibility with U.S. and Canadian standards, simplifying compliance in regulated environments.
Ideal for industrial automation panels, machine control cabinets, and electrical enclosures requiring reliable 125V power distribution. The NEMA 5-20R, 20A rating, and tamper-resistant design make it suitable for environments where safety and robust performance are priorities.
Tamper-resistant construction reduces inadvertent contact and fault occurrences, lowering maintenance calls. The modular EZLink design supports straightforward replacements and upgrades, improving installation efficiency and long-term reliability in production lines and facility electrical systems.
