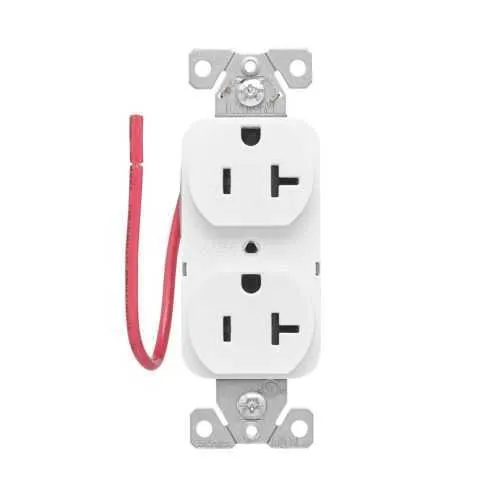

Eaton EZTR5362SCW EZLink modular duplex receptacle - Listed
Part Number: EZTR5362SCW
Quick Summary
The Eaton EZLink modular duplex receptacle is a compact 20A, 125V power outlet designed for modular panel installations. Engineers often struggle with wiring clutter and incompatible outlets when expanding power for control panels. This device carries cULus listing and NOM Federal Specification Classification W-C-596G, ensuring compliance in commercial and industrial environments. With its NEMA 5-20R, three-wire configuration and tamper-resistant design, it reduces wiring errors, improves safety, and simplifies panel layouts. By leveraging its compact footprint and split-control capability, businesses can speed installation, enhance maintenance predictability, and achieve consistent electrical performance across enclosures and workstations.
Product Information
Extended Description
EZTR5362SCW Eaton: Eaton EZLink modular duplex receptacle, 20 A, 125 Vac, 60 Hz, tamper-resistant, split control, NEMA 5-20R, three-wire, white
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZTR5362SCW
UPC
032664011603
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature → Business Impact → Application: The EZLink modular duplex receptacle delivers 20A at 125V in a NEMA 5-20R, three-wire configuration with tamper-resistant construction, reducing the risk of accidental contact and ensuring reliable power delivery for industrial equipment. This translates to fewer downtime events and improved operator safety in control panels and workstations. In practice, the modular design shortens wiring runs and simplifies box fill calculations, accelerating panel builds and enabling scalable expansion in cost-efficient ways. The device’s cULus Listed and NOM W-C-596G classifications provide regulatory peace of mind for electrical contractors and facility managers, minimizing compliance-related rework during audits. Its small footprint (1.91 in depth, 4.4 in height, 1.75 in width) and light weight (0.22 lb) fit tight enclosures, reducing panel obstruction and enabling neater, faster installations. The split-control capability supports independent circuit management, improving system flexibility and fault isolation in complex power distribution schemes. Compatibility with standard enclosures and quick termination actions translates to reduced training time and fewer technician calls, delivering measurable efficiency gains and predictable maintenance windows.
Get a Quick Quote for a Eaton EZTR5362SCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR5362SCW?
Enquire Now
FAQs
The EZTR5362SCW is designed for standard electrical enclosures and control panels. It uses a 20A, 125V, three-wire NEMA 5-20R configuration and weighs only 0.22 lb, making it suitable for tight panel spaces and modular power distribution. Its compact depth of 1.91 in supports narrow box fills, while the modular design enables quicker termination and straightforward field upgrades without special adapters.
Key specs include a 20A amperage rating, 125 VAC voltage rating, NEMA 5-20R receptacle, and a three-wire configuration. The device is tamper-resistant for enhanced safety and is part of Eaton’s EZLink modular family, intended for reliable, code-compliant power delivery in industrial and commercial panels.
Yes. The EZLink modular duplex receptacle is designed for modular power distribution within control panels and industrial enclosures. Its compact footprint, tamper-resistant construction, and 20A/125V rating align with common panel needs, enabling tidy wiring, predictable performance, and rapid field upgrades without compromising safety or compliance.
This receptacle is cULus Listed and carries NOM Federal Specification Classification W-C-596G, both of which support regulatory compliance in commercial and industrial facilities. These certifications help reduce audit findings and simplify procurement for projects with strict safety and performance requirements.
The modular EZLink design reduces wiring complexity and box fill, cutting installation time and labor costs. Tamper-resistant features enhance safety, reducing incident-related downtime. The predictable Eaton engineering and standardized dimensions also simplify future maintenance, part swaps, and upgrades, delivering tangible time savings and improved system reliability in panel builds.
