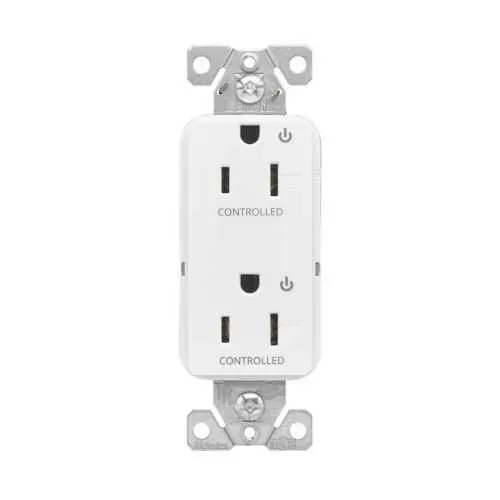

Eaton EZTR6262CDB EZLink receptacle - cULus Listed
Part Number: EZTR6262CDB
Quick Summary
The Eaton EZLink modular decorator receptacle provides a 15 A, 125 V outlet for fast, code-compliant installations. Whether you’re updating a control panel, workstation, or wall circuit, this decorator receptacle reduces wiring complexity and installation time. It carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, reinforcing safety, quality, and regulatory compliance across diverse sites. The brown finish and three-wire NEMA 5-15R design supports consistent aesthetics and universal compatibility with standard plugs. By standardizing on this EZLink module, electrical teams gain reliable performance, simplified stocking, and predictable maintenance costs, enabling faster project turnover and longer service life in commercial and light-industrial environments.
Product Information
Extended Description
EZTR6262CDB Eaton: Eaton EZLink modular decorator receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-15R, three-wire, brown
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6262CDB
UPC
032664011658
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature: 15A, 125V electrical rating is aligned with common branch circuits and office equipment. Business Impact: Supports standard loads without overtaxing circuits, reducing nuisance trips and service calls. Application: Ideal for control panels and workstation outlets in commercial spaces that require reliable, readily available power. Feature: Tamper-resistant NEMA 5-15R design enhances user safety by limiting access to live contacts. Business Impact: Improves safety compliance in public areas, labs, and production floors, lowering risk of accidental shock. Application: Public-facing workstations and equipment rooms where safety is paramount. Feature: Dual controlled and three-wire configuration provides flexible monitoring and switching options. Business Impact: Enables energy management and precise control of receptacles within single or multi-circuit systems. Application: Enclosures and control panels requiring configurable power sequencing. Feature: Compact footprint with 1.91 in depth, 4.4 in height, and 1.75 in width; weight around 0.22 lb. Business Impact: Facilitates dense panel layouts and easier integration into existing architectures, reducing enclosure fill and installation time. Application: Space-constrained electrical panels and modular device deployments. Feature: EZLink modular design and catalog EZTR6262CDB compatibility provide streamlined sourcing and installation. Business Impact: Lowers procurement complexity, shortens project timelines, and improves maintenance planning. Application: Large-scale deployments in facilities engineering and electrical contracting projects.
Get a Quick Quote for a Eaton EZTR6262CDB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6262CDB?
Enquire Now
FAQs
The EZTR6262CDB is designed for standard 15A, 125Vac circuits and features a three-wire NEMA 5-15R configuration. When installing, verify the circuit is protected appropriately and use proper wiring practices for decorator style modules within the EZLink family. This ensures safety, regulatory compliance, and reliable performance in control panels, workstations, and wall outlets.
This decorator receptacle is cULus Listed, NOM certified, and falls under Federal Specification W-C-596G. These certifications indicate compliance with safety, performance, and quality standards across North American jurisdictions, reducing risk during inspections, improving product reliability, and supporting regulatory acceptance in commercial and light-industrial installations.
Yes. EZTR6262CDB is part of the EZLink modular family and is designed to integrate with other EZLink modules, enabling consistent control schemes and simplified panel design. This compatibility helps standardize the electrical footprint across multiple outlets and devices, reducing clutter and easing future upgrades or retrofits.
The receptacle measures 1.91 inches in depth, 4.4 inches in height, and 1.75 inches in width, with an approximate weight of 0.22 lb. These compact dimensions support dense panel layouts and straightforward mounting in decorator openings, helping you optimize enclosure space without compromising accessibility.
Tamper-resistant construction reduces the risk of accidental contact with live parts, enhancing safety in occupied or public areas. The dual-controlled capability provides flexibility for switching and monitoring outlets within a circuit or control panel, supporting energy management and staged startup sequences. Together, these features deliver safer operation and improved control for facility environments.
