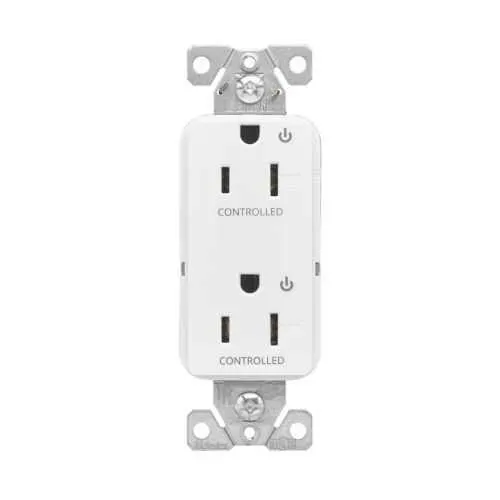

Eaton EZTR6262CDGN EZLink modular decorator receptacle - cULus Listed
Part Number: EZTR6262CDGN
Quick Summary
EZLink decorator receptacle is a modular power outlet for control panels and equipment enclosures. Engineers often struggle with tamper-resistant outlets that fit in tight spaces while delivering reliable, code-compliant power. This Eaton device is cULus Listed with NOM and Federal Specification W-C-596G, ensuring regulatory alignment and product traceability. Its compact footprint supports 15A, 125V, 60 Hz operation in NEMA 5-15R, three-wire configurations. The green finish provides clear visibility and aligns with color-coded wiring practices in automation installations, while dual controlled functionality supports flexible control strategies and reduces wiring complexity across multiple panels.
Product Information
Extended Description
EZTR6262CDGN Eaton: Eaton EZLink modular decorator receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, dual controlled, NEMA 5-15R, three-wire, green
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6262CDGN
UPC
032664011672
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Green
Feature → 15A, 125V, 60 Hz NEMA 5-15R three-wire receptacle provides standard power delivery for automation devices. Business Impact → Simplifies sourcing for common equipment while ensuring compatibility with most control cabinets, reducing field rework. Application → Ideal for control panels and equipment enclosures in manufacturing and process environments. Feature → Tamper-resistant construction enhances safety and regulatory compliance, minimizing accidental contact and short circuits. Business Impact → Lowers maintenance costs and risk of injury in busy industrial settings. Application → Suitable for accessible outlets in machinery and packaging lines. Feature → Dual controlled capability enables independent or remote switching. Business Impact → Frees wiring channels and enables flexible automation strategies without extra hardware. Application → Use in machines requiring configurable power delivery to sensors or drives. Feature → Compact footprint (1.91 in depth, 4.4 in height, 1.75 in width) and light weight (0.22 lb). Business Impact → Maximizes panel space, shortens installation time, and improves cable routing. Application → Retrofit projects and new builds with tight enclosure constraints. Feature → Green color aids quick visual identification and error reduction. Business Impact → Enhances maintenance accuracy and reduces downtime. Application → Color-coded power distribution in multi-device enclosures. Feature → Certifications (cULus Listed, NOM, W-C-596G). Business Impact → Regulatory confidence, easier procurement, and audit readiness. Application → Government and regulated industries requiring formal listings.
Get a Quick Quote for a Eaton EZTR6262CDGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6262CDGN?
Enquire Now
FAQs
EZTR6262CDGN uses a standard NEMA 5-15R, three-wire configuration rated at 15A and 125V. It fits typical enclosure cutouts and supports straightforward wiring within standard electrical boxes. The compact depth of 1.91 in and width of 1.75 in help minimize panel intrusion, while the three-wire setup simplifies wiring topology for automation controllers and sensors.
The receptacle delivers 15A at 125V (60 Hz) with NEMA 5-15R capability in a three-wire arrangement. It features tamper-resistant construction for enhanced safety and reliability in busy industrial environments. It is cULus Listed and complies with NOM and Federal Specification W-C-596G, providing regulatory assurance for design and installation in controlled environments.
Yes. The EZLink modular decorator receptacle is designed for control panels and equipment enclosures in industrial settings. Its tamper-resistant design and regulatory listings (cULus, NOM, W-C-596G) help meet safety and compliance requirements. The compact footprint reduces panel backplane crowding, and its green color supports quick visual identification during maintenance.
EZTR6262CDGN carries cULus Listing and NOM certification with Federal Specification W-C-596G. These markings indicate compliance with electrical safety and performance standards for North American markets, supporting procurement audits, quality assurance, and regulatory reporting for industrial automation projects.
The EZTR6262CDGN reduces downtime through reliable, tamper-resistant operation and standard 15A/125V capability, decreasing field service calls for incorrect wiring. Its compact size simplifies installations, saving labor time. Compliance listings streamline audits and procurement, while the dual controlled option offers flexibility in control strategies, potentially reducing the need for additional components.
