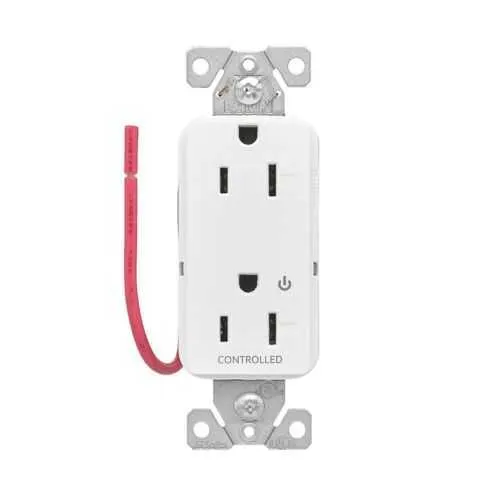

Eaton EZTR6262CHB Modular Decorator Receptacle - NEMA 5-15R
Part Number: EZTR6262CHB
Quick Summary
The Eaton EZLink modular decorator receptacle provides reliable 15A, 125VAC power delivery for workstations. Engineers often struggle with mixed outlets that fail validation or clutter control panels, complicating maintenance and upgrades. This module is cULus Listed, NOM, and conforms to Federal Specification W-C-596G, underscoring regulatory compliance and safe operation in regulated environments. Its modular design and brown color support flexible installation in furniture and wall boxes, while half-controlled operation offers local circuit control without reworking panels. With EZLink, facilities gain faster reconfigurations and reduced wiring complexity, translating to lower total cost of ownership and improved uptime.
Product Information
Extended Description
EZTR6262CHB Eaton: Eaton EZLink modular decorator receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, half controlled, NEMA 5-15R, three-wire, brown
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6262CHB
UPC
032664011733
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature: 15A, 125VAC capacity with a NEMA 5-15R face provides reliable power for common loads. Business Impact: predictable performance reduces nuisance trips and eliminates the need for ad-hoc outlet clusters. Application: ideal for workstation drops, instrument benches, and service counters where a standard, plug-and-play receptacle is expected. Feature: Tamper-resistant construction enhances safety by preventing direct contact with energized parts. Business Impact: minimizes accidental shocks in high-traffic areas and simplifies compliance with consumer-safety and electrical codes. Application: suited for laboratories, classrooms, and customer-facing spaces where outlets are accessed by multiple users. Feature: Half-controlled, three-wire configuration enables selective control of a circuit without additional wiring changes. Business Impact: improves energy management and reduces unnecessary power consumption. Application: testing stations and workbenches where a single outlet needs local control while others remain always-on. Feature: EZLink modular decorator system supports quick upgrades and clean, modular power distribution in furniture and wall-adjacent installations. Business Impact: lowers installation time, reduces field-fabrication errors, and simplifies future reconfigurations. Application: modular desks, media centers, and lab benches where layouts evolve with equipment. Feature: Compact footprint and brown finish blend with architectural aesthetics while preserving space in tight enclosures. Business Impact: easier integration into wall boxes and furniture without sacrificing outlet density. Application: customer spaces, offices, and labs where appearance and reliability matter; certifications such as cULus Listed, NOM, and W-C-596G support compliance.
Get a Quick Quote for a Eaton EZTR6262CHB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6262CHB?
Enquire Now
FAQs
EZTR6262CHB is designed for plug-and-play use in standard decorator boxes and EZLink modular systems. When wiring into new installations or retrofits, ensure a compatible decorator strip and a standard NEMA 5-15R faceplate. The half-controlled, three-wire configuration supports mixed-control scenarios, while its compact 1.91 inch depth helps conserve enclosure space and simplify routing.
The receptacle delivers 15A at 125 VAC with three conductors, configured as a NEMA 5-15R. It is tamper-resistant to reduce accidental contact and is cULus Listed with NOM and Federal Specification W-C-596G. This combination supports safe, code-compliant connections for everyday office, lab, and service counter equipment.
Yes. The EZTR6262CHB is well-suited for commercial offices, labs, and light-industrial service counters where reliable power is needed without bulky hardware. Its modular EZLink design enables quick reconfiguration as equipment layouts evolve, and its brown color blends with interiors while maintaining electrical performance.
Certifications include cULus Listed, NOM, and Federal Specification W-C-596G, confirming regulatory compliance for North American installations. There is no CE marking listed for this model, so projects requiring international certification should verify requirements before sourcing. These marks support inspection readiness, code compliance, and risk reduction in regulated facilities.
The tamper-resistant feature reduces maintenance by minimizing shock incidents and vandalism-related outages, lowering service calls. Combined with a compact footprint and easy modular upgrades, the EZTR6262CHB supports longer service life and quicker future reconfigurations, delivering measurable ROI through safer operation, reduced downtime, and smoother panel updates.
