Eaton EZTR6262CHW EZLink Decorator Receptacle - cULus
Part Number: EZTR6262CHW
Quick Summary
The Eaton EZLink modular decorator receptacle is a compact 15A, 125V outlet for commercial and industrial panels. This design addresses the challenge of locating reliable, tamper-resistant outlets that meet evolving safety and installation codes. It carries cULus listing with NOM and Federal Specification W-C-596G, plus straightforward 60 Hz operation, ensuring broad regulatory alignment. With a white NEMA 5-15R face and modular compatibility, it plugs into standard enclosures and simplifies maintenance, supporting faster deployments and lower life-cycle costs.
Product Information
Extended Description

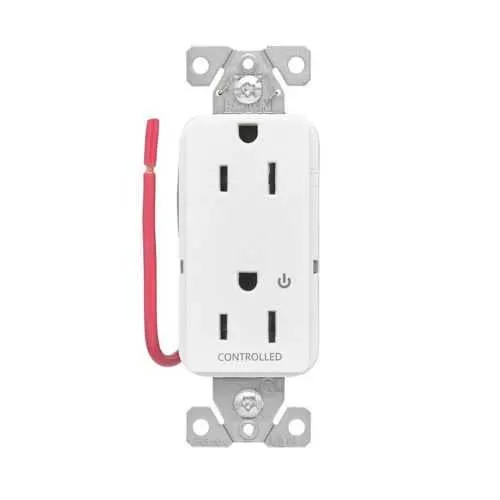

EZTR6262CHW Eaton: Eaton EZLink modular decorator receptacle, 15 A, 125 Vac, 60 Hz, tamper-resistant, half controlled, NEMA 5-15R, three-wire, white
Product Name
Eaton EZLink modular decorator receptacle
Catalog Number
EZTR6262CHW
UPC
032664011801
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.22 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature: 15A, 125V capability with a NEMA 5-15R face supports typical office, lab, and workshop loads. Business Impact: Enables standard power delivery without adapters, reducing miswiring and inventory complexity. Application: Ideal for control panels, equipment enclosures, and workstations in industrial environments. Feature: Tamper-resistant, three-wire grounding design enhances safety and code compliance. Business Impact: Minimizes child access risk and improves regulatory alignment for safety-critical installations. Application: Laboratories, classrooms, manufacturing floors, and any high-traffic area requiring reliable protection. Feature: cULus Listed, NOM, and Federal Specification W-C-596G certifications. Business Impact: Provides documented compliance to multiple regional standards, simplifying procurement and audits. Application: New builds and retrofit projects in North American facilities. Feature: EZLink modular device compatibility for easy field upgrades. Business Impact: Reduces install time and wiring errors, enabling faster changes to power layouts. Application: Modular wiring schemes in panels and enclosures that require scalable outlet solutions. Feature: Compact footprint (1.91 in depth, 1.75 in width, 4.4 in height) and lightweight design (0.22 lb). Business Impact: Improves panel density and ease of installation without sacrificing durability. Application: Tight panel spaces, control cabinets, and equipment racks. Feature: White color and NEMA 5-15R face standardization. Business Impact: Streamlines maintenance and part replacement with widely recognized outlets. Application: Commercial interiors, industrial facilities, and service desks requiring consistent aesthetics.
Get a Quick Quote for a Eaton EZTR6262CHW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZTR6262CHW?
Enquire Now
FAQs
The EZTR6262CHW provides 15A at 125VAC via a NEMA 5-15R, three-wire configuration. Its compact dimensions (1.91 in depth, 1.75 in width, 4.4 in height) fit standard electrical enclosures and panels, enabling straightforward integration with existing box layouts without over-sizing.
This receptacle is cULus Listed, NOM, and aligned with Federal Specification W-C-596G. These certifications support regulatory compliance, simplify audits, and help satisfy procurement requirements across North American facilities.
Yes. The tamper-resistant design helps prevent unauthorized access to the outlets, improving safety in labs and classrooms while meeting applicable safety standards for high-traffic areas and educational spaces.
Product Length/Depth is 1.91 in, Height is 4.4 in, Width is 1.75 in, and the weight is approximately 0.22 lb, enabling dense panel layouts with predictable fit.
Best suited for control panels, modular enclosures, and utility outlets in manufacturing and processing facilities, where 15A, 125V power with reliable safety features and EZLink modular compatibility is advantageous for scalable, compliant power distribution.
